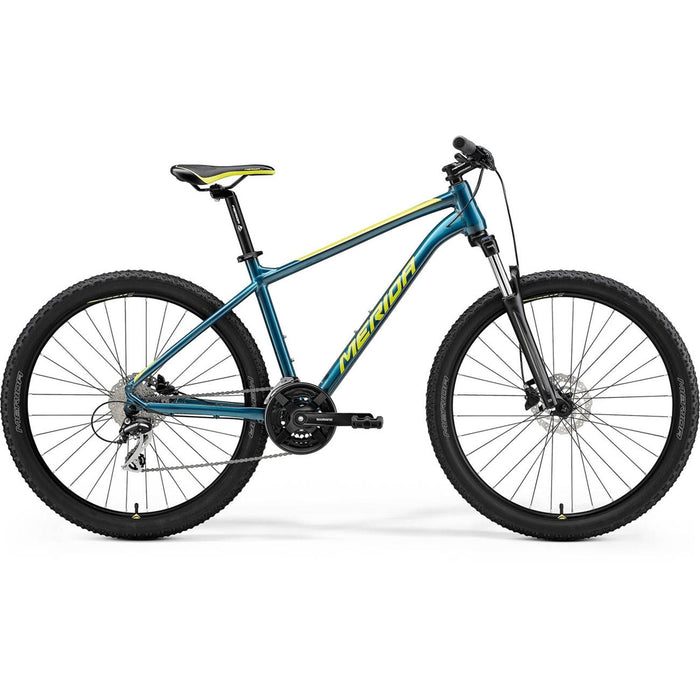

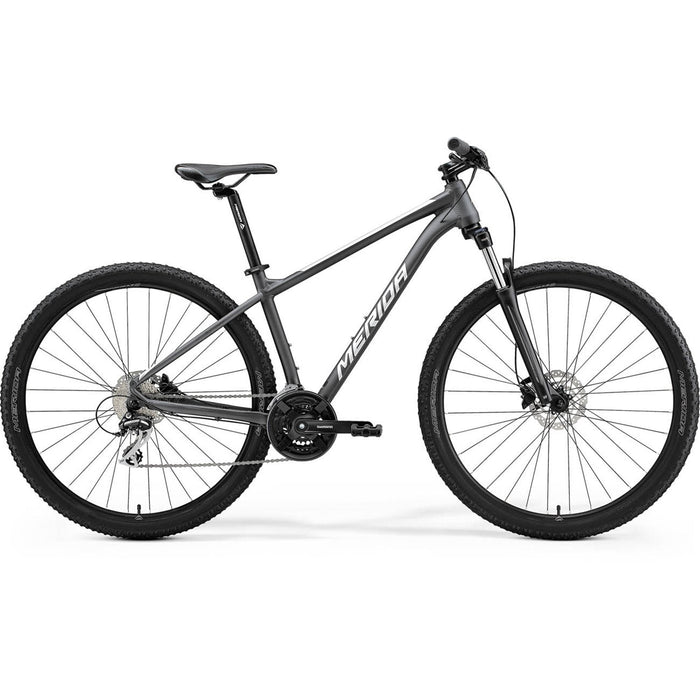

2021 Merida Big Seven 20 / Big Nine 20

Frame: BIG.TFS III; MAT aluminium; 27.5/29 WHS; 135x9 AST; BSA BBR
Sizes: 27.5" (XS-S-M-L) / 29"(M-L-XL-XXL)
Fork: Suntour XCT30 HLO; Coil; 100 STR; Lockout.
Gears: 2 x 8
Crankset: Shimano FC-M315-2; 36-22
Crank Length: 170 mm-XS/S, 175 mm-M/L
Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
Cassette: Sunrace CSM668; 11-32 ATC; 8 Speed
Chain: Sunrace M84
Chainguard: -
Front Derailleur: Shimano FD-M315-TS
Rear Derailleur: Shimano RD-M360
Shifter-Front: Shimano ST-EF505
Shifter-Rear: Shimano ST-EF505
Brakes: Shimano ST-EF505; BR-MT200 brake caliper
Rotor-Front: Shimano RT10; 160 mm
Rotor-Rear: Shimano RT10; 160 mm
Handlebar: MERIDA CC; MAT aluminium; 690 Wide; 15 Rise
Stem: MERIDA CC; MAT aluminium; 31.8 Diameter; 6 Angle
Stem Length: 70 mm-XS/S, 80 mm-M, 90 mm-L
Head Set: MERIDA M2345
Seat Post: MERIDA CC; MAT aluminium; 30.9 Diameter; 15 Setback
Saddle: MERIDA Sport comfort
Hub-Front: Shimano TX505; 100x9 WHF; 32 Spokes; Centerlock
Hub-Rear: Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock
Axle-Rear: -
Spokes: Black steel
Rims: MERIDA CC; 17 IWR; MAT aluminium
Tyres: MERIDA K1080; 2.2"; wire
Pedals: Plastic VPE-891
