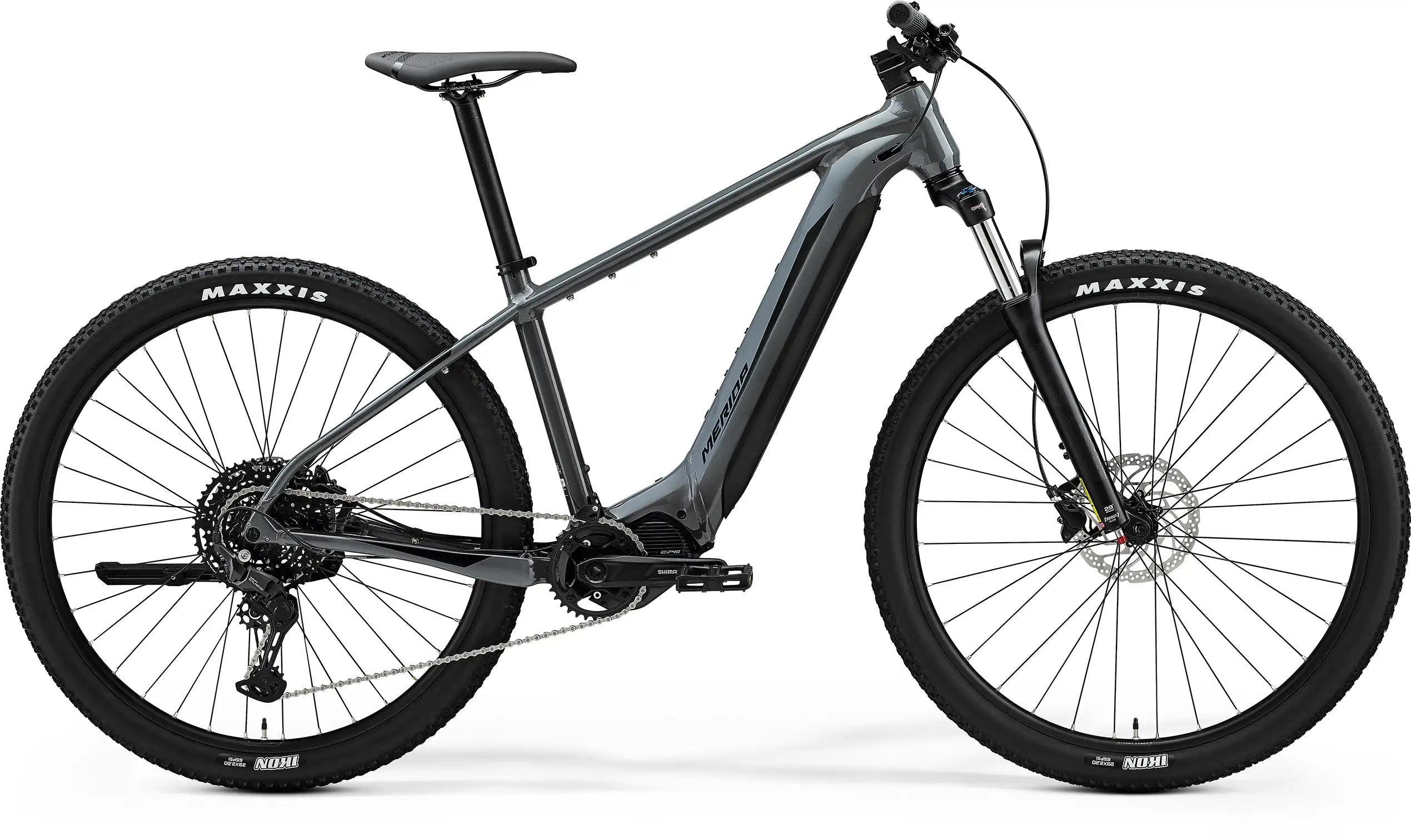

2024 Merida eBig Nine 400
The power to do more of what matters, whether you want e-assisted off-road fun or a hassle-free commute, all wrapped up in a sleek, high-quality, fully integrated frame.
Frame: eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube
Sizes: M-L
Fork: Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS
Drive Unit: Shimano EP6; 85Nm
Battery: Shimano EN806; 630Wh
Battery Charger: Shimano EC-E6002; 2A charging current
Display: Shimano SC-EN500
Rear Derailleur: Shimano CUES U6000 ; GS
Shifters: Shimano CUES U6000
Brake-F: Shimano MT-200; 2 piston
Brake-R: Shimano MT-200; 2 piston
Rotor-F: Shimano RT30; 180 mm
Rotor-R: Shimano RTEM300; 180 mm
Chainwheel: Shimano CRE70-B; 34 ATC
Crank/Size: Shimano FC-EM600; 165 mm for all sizes
Chain: Shimano LG500
Cassette: Shimano LG300; 11-48 ATC; 10 GER
Pedals: VP VPE-537
Handlebar: MERIDA MERIDA EXPERT TR II; 760 WHB; 18 RHB
Handlebar Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; GoPro & Supernova mount
Stem Length: 50 mm all sizes
Seat Post: MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
Saddle: MERIDA COMP SL; V-mount
Hub-F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
Hub-R: Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock
Axle-R: MERIDA COMP TR; including removeable lever, 6/4mm allen key
Rims: MERIDA COMP CC II; 25 IWR; MAT aluminium
Tyres: Maxxis Ikon; 29x2.2"; kevlar bead
Kickstand: CL-KA98, 29"
Max Rider Weight: 140kg
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
