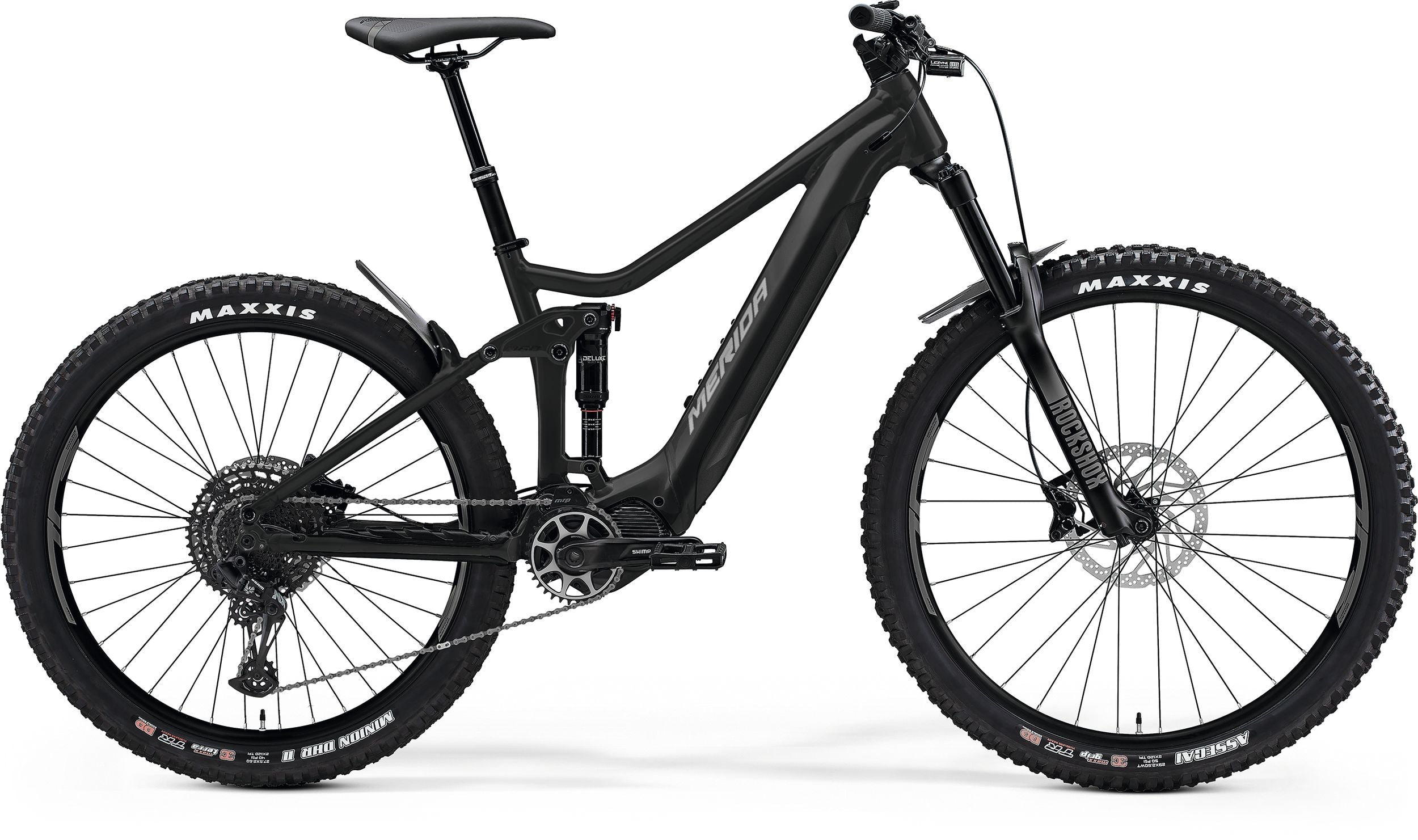

2024 Merida eOne Sixty 500 SE

No trail is out of reach, thanks to confident handling, super-capable suspension and the winning combination of Shimano drive unit and high-capacity battery in a sleek all-aluminium frame.

Frame: eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube;
Sizes: XS-S-M-L-XL
Fork: Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset; 29x2.8" max WHS
Rear Shock: Rock Shox Deluxe Select+; platform
Drive Unit: Shimano EP6; 85Nm
Battery: Shimano EN806; 630Wh Shimano EN805 504Wh for XS only
Battery Charger: Shimano EC-E6002; 2A charging current
Display: Shimano SC-EN600
Mode Switch: Shimano SW-EN600-L
Rear Derailleur: Sram NX Eagle
Shifters: Sram NX EAGLE 12
Dropper Post Lever: Limotech RM10 (For SRAM MMX)
Brake - Front: Sram DB8; 4 piston
Brake - Rear: Sram DB8; 4 piston
Rotor - Front: Sram CenterLine; 200mm
Rotor - Rear: Sram CenterLine; 200mm
Chainring: SAMOX EMA04; 34 ATC
Crank: Shimano FC-EM600; 165 mm for all sizes
Chain: Sram SX Eagle
Cassette: Sram PG-1210 Eagle; 10-50 ATC; 12 GER
Pedals: VP VPE-537
Handlebar: MERIDA EXPERT eTR; 780 WHB; 20 RHB
Handlebar Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem Length: 40 mm all sizes
Headset: MERIDA-8152
Seat Post: MERIDA COMP TR; 30.9 DSP; 0 SSB; XS/S 100 SPT - M/L 125 SPT - XL 150 SPT
Saddle: MERIDA COMP SL; V-mount
Hub - Front: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt
Hub - Rear: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Tyre - Front: Kenda Regolith; 29x2.4"; wire
Tyre - Rear: Kenda Regolith; 27.5x2.6"; wire
Light Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light Rear: USB REAR Light CG-214RG
Max Rider Weight: 140kg
