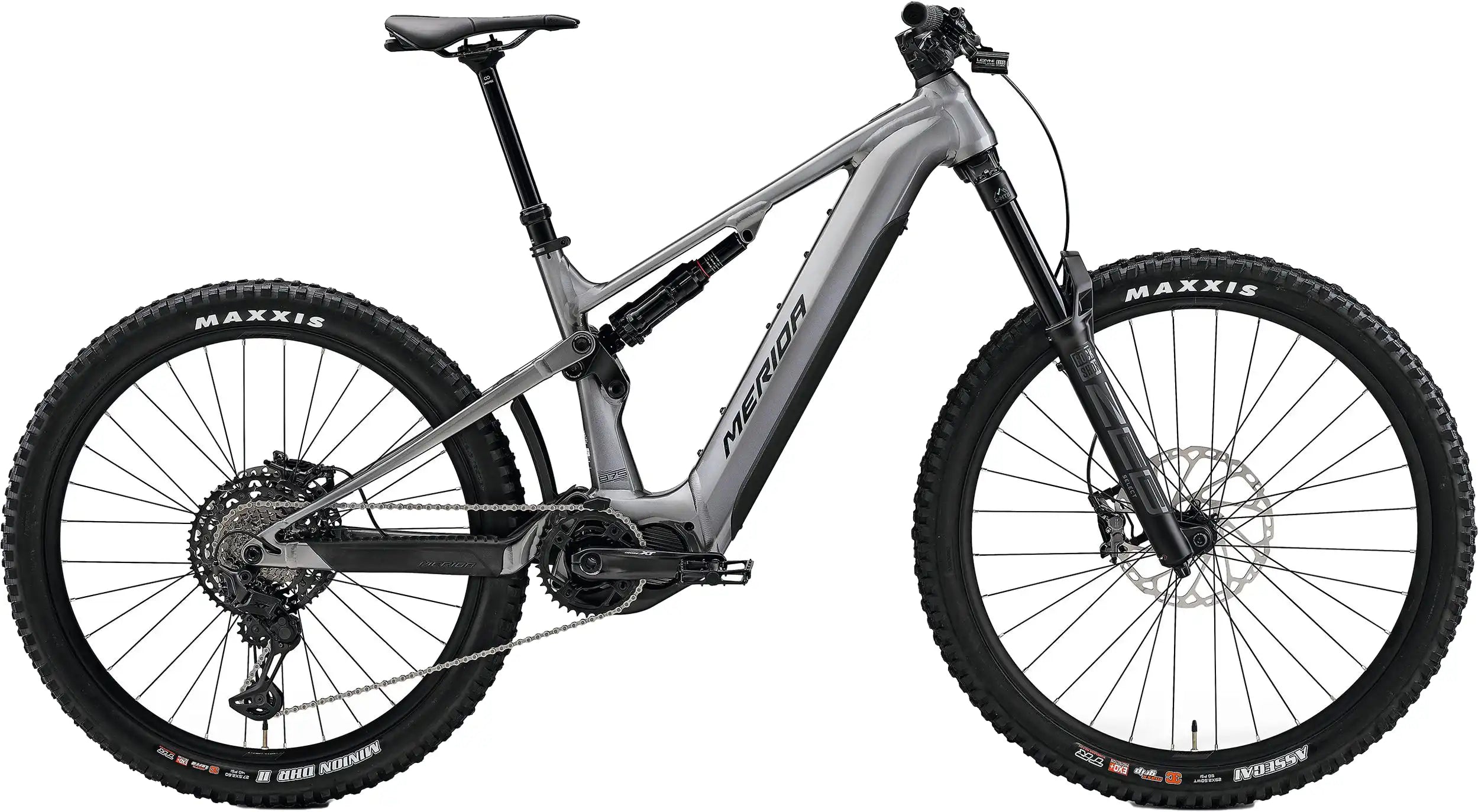

2024 Merida eOne Sixty 875

$9,499.00
By Merida
Interest Free $791 per month for 12 months
Only 1 left
SKU 4711256468945

CLICK & COLLECT or LOCAL DELIVERY ONLY

Due to manufacturer warranties, shipping is only available to local area

SPECIAL ORDER ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 business day handling period for these items

Minus Plus
More details Right

Climb, ride, repeat. Our durable aluminium e-bike frame gets a removable 750 Wh battery and an optional 360 Wh extender for a huge range, all paired with our award-winning suspension and geometry plus durable, high-performance kit from RockShox and Shimano.

Frame: eONE-SIXTY LITE IV; MAT aluminium; 174 mm STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
Sizes: Short - Mid - Long - XLong
Fork: Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS
Rear Shock: Rock Shox Super Deluxe Select
Drive Unit: Shimano EP801; 85Nm
Battery: Trendpower Internal Battery Gen 2; 750Wh
Battery Charger: Trendpower EU Charger; 4A
Display: Shimano SC-EM800
Mode Switch: Shimano SW-EM800-L
Rear Derailleur: Shimano XT RDM8130 LinkGlide 11
Shifters: Shimano XT M8130 11
Dropper Post Lever: Shimano SL -MT500-IL
Brake - Front: Shimano XT; 4 piston
Brake - Rear: Shimano XT; 4 piston
Rotor - Front: Shimano RT64; 220 mm
Rotor - Rear: Shimano RTEM600; 203 mm
Chainring: FSA 1x Steel Chainring; 36 ATC
Crank: Shimano FC-E8150; 165mm
Chain: LG500
Cassette: Shimano LG700; 10-50 ATC; 11 GER
Pedals: VP VPE-527
Handlebar: MERIDA EXPERT eTR; 780 WHB; 20 RHB
Handlebar Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem Length: 40 mm all sizes
Headset: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat Post: MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
Saddle: PROXIM W400 STN; V-mount adapter; incl. MERIDA minitool
Hub - Front: Shimano XT; 110x15 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano XT; 148x12 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Tyre - Front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre - Rear: Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR
Light Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light Rear: LEZYNE LED FEMTO USB REAR STVZO
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 140kg



Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
