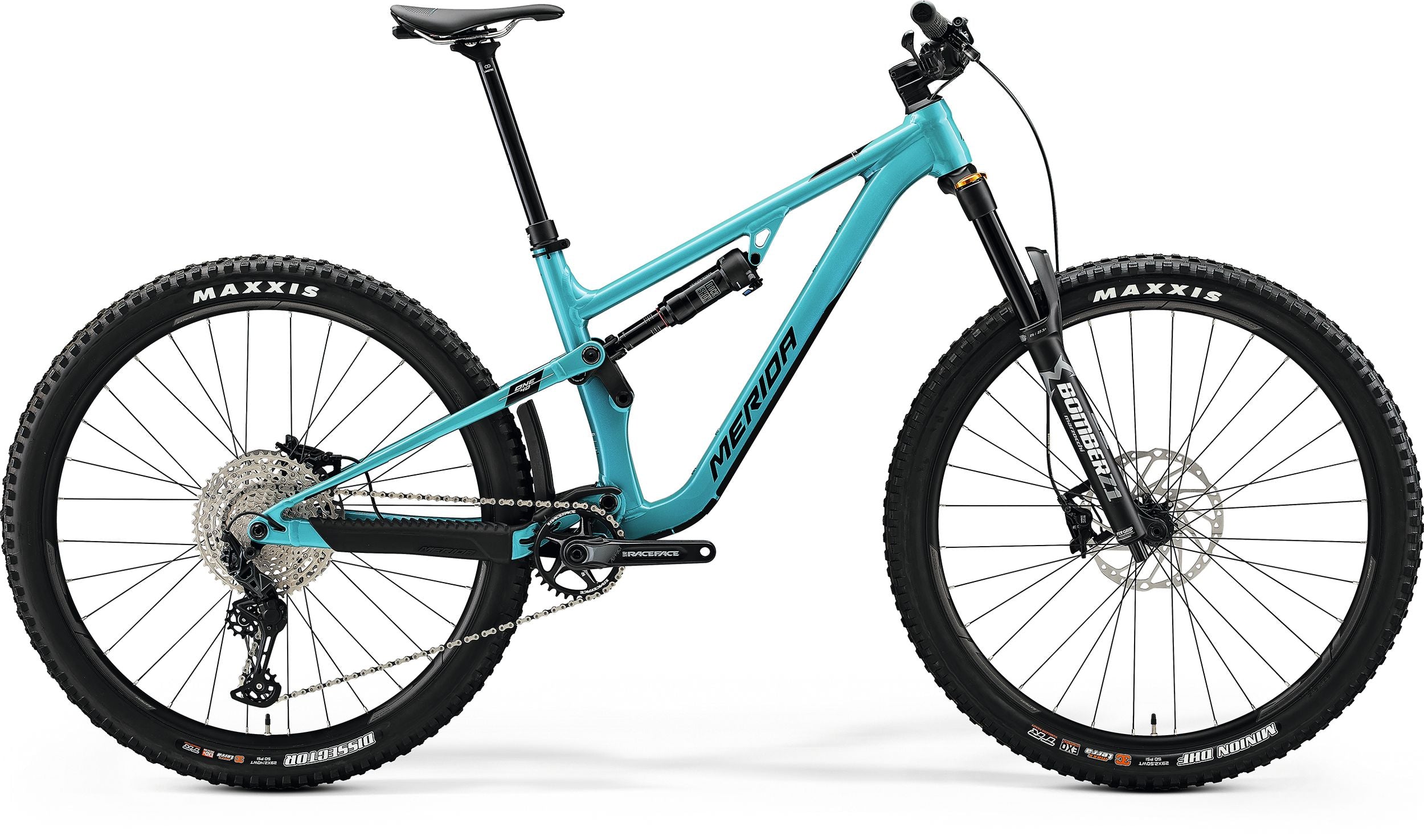

2022 Merida One Forty 700
Climbing ability that makes mountain goats proud and descending performance that shames enduro bikes. By pairing our radical trail geometry with an all-aluminium frame, that's exactly what you get.
Frame: ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
Sizes: XShort-Short-Mid-Long-XLong
Fork: Marzocchi Z1; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS
Shock: Rock Shox Deluxe Select+; lockout
Gears: 1 x 12
Crankset: Race Face Aeffect; 32 ATC
Crank Length: 170 mm-S, 175 mm-M up
Bottom Bracket: Race Face BSA 68/73 - 24mm
Cassette: Shimano Deore M6100; 10-51 ATC; 12 GER
Chain: KMC X12
Rear Derailleur: Shimano SLX M7100 Shadow+; SGS
Shifter - Front: n/a
Shifter - Rear: Shimano XT; Multi Release
Dropper Lever: Shimano SL -MT500-IL
Brake - Front: Shimano SLX M7120; 4 piston
Brake - Rear: Shimano SLX M7120; 4 piston
Rotor - Front: Shimano RT64; 203 mm
Rotor - Rear: Shimano RT64; 203 mm
Handlebar: MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
Stem Size: 50 mm all sizes
Head Set: MERIDA-8151 1-1/8"-1.5" cartridge bearing set
Seat Post: MERIDA TEAM TR; 34.9 DSP; 10 SSB; all sizes 30-230 SPT
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Spokes: Double Butted Black stainless
Hub - Front: Shimano SLX; 110x15 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano SLX; 148x12 WHR, 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: MERIDA EXPERT TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Tyre - Front: Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTera
Tyre - Rear: Maxxis Dissector; 29x2.4"; fold; TR EXO+ MaxxTerra
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 135kg
