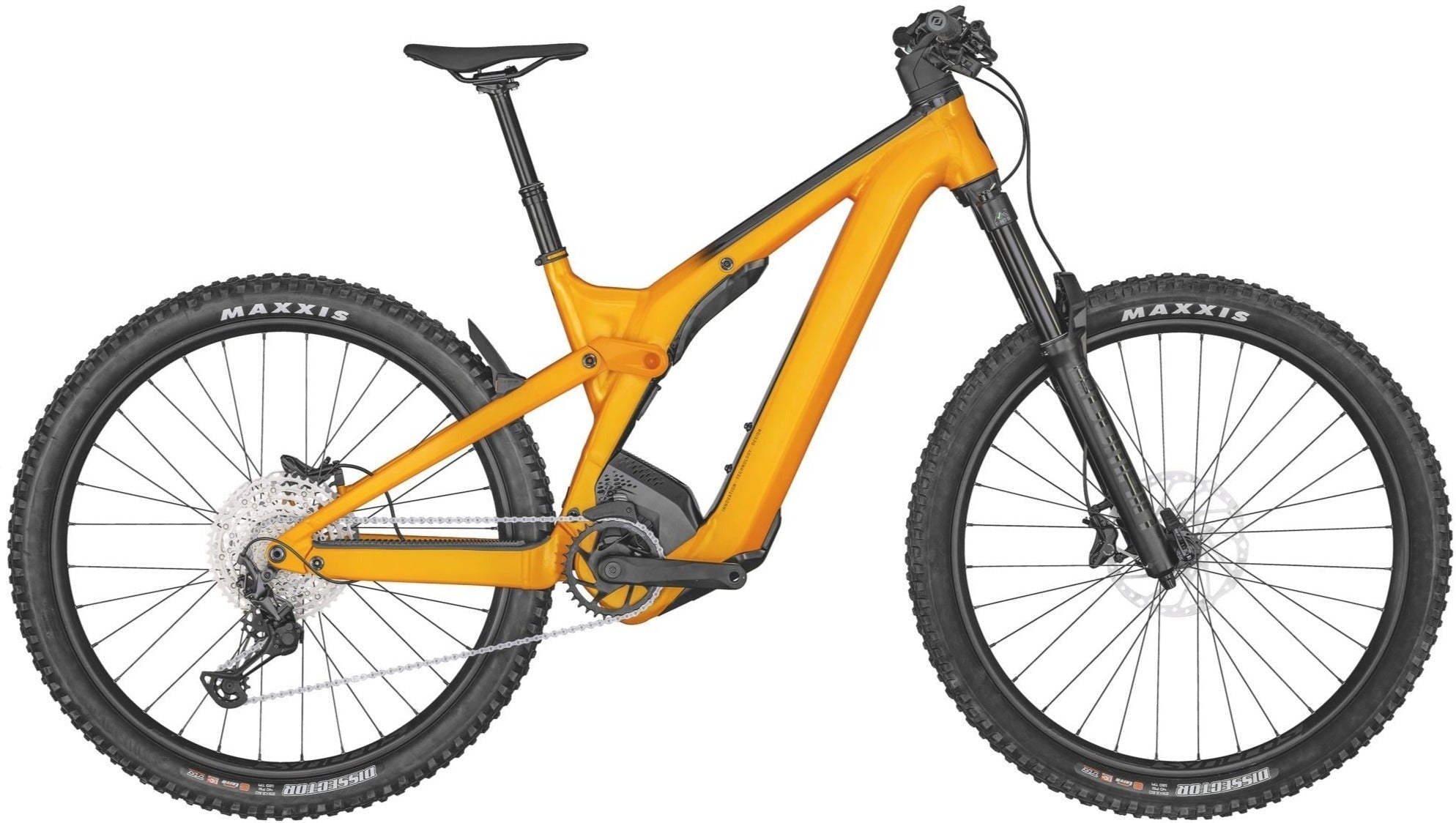

2022 Scott Patron eRIDE 920
The all-new Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
Frame: Alloy Frame & Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch Gen4 / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable
Travel: Front: 160mm / Rear: 160mm
Fork: RockShox Domain Air, 15x110mm QR axle / 1.8" Tapered Steerer, Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
Rear Shock: FOX Float EVOL eRIDE Trunnion, 3 modes / Lockout-Trail-Descend, DPS / Reb. Adj.
Remote System: SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 modes
Drive Unit: Bosch Performance CX, EU: 25kmh / INT: 20mph
Battery: PowerTube 750Wh
Display: Bosch LED Remote & Kiox 300
Charger: 4A Charger
Rear Derailleur: Shimano XT / 12 Speed
Shifters: Shimano SL-M6100
Crankset: FSA CK-745 165mm / 34T
Chainguide: e*thirteen / e*spec Slider
Chainring: FSA WB604 / 34T / DM / Steel
Chain: Shimano CN-M6100
Cassette: Shimano CS-M6100 / 10-51 T
Brakes: Shimano BR-MT520 4 Piston
Rotor: Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm
Handlebar: Syncros Hixon 2.0 / Alloy 6061D.B., 12mm rise / 9° / 780mm, Syncros Pro lock-on grips
H'Stem: Syncros AM2.0 / 6061 Alloy, 31.8mm / 4° / 1 1/8"
Seatpost: Syncros Duncan Dropper Post 2.5, Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
Seatpost: Syncros Duncan Dropper Post 2.5, Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
Headset: Acros / 1.8", ZS66 OD74 / integr. Cable
Hub (Front): Formula CL-811 / 15x110mm
Hub (Rear): Formula ECT-1481 / Boost 148x12mm
Spokes: Stainless Black
Rims: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
Front Tire: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready
Rear Tire: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready
Lights: Bosch Light Cable pre-installed F&R
Extras: Syncros eRIDE integrated light fender
Approx weight in KG: 26.5
Max. System Weight: 128 kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
