2024 Merida Scultura 4000 - ABC Bikes
Special Order

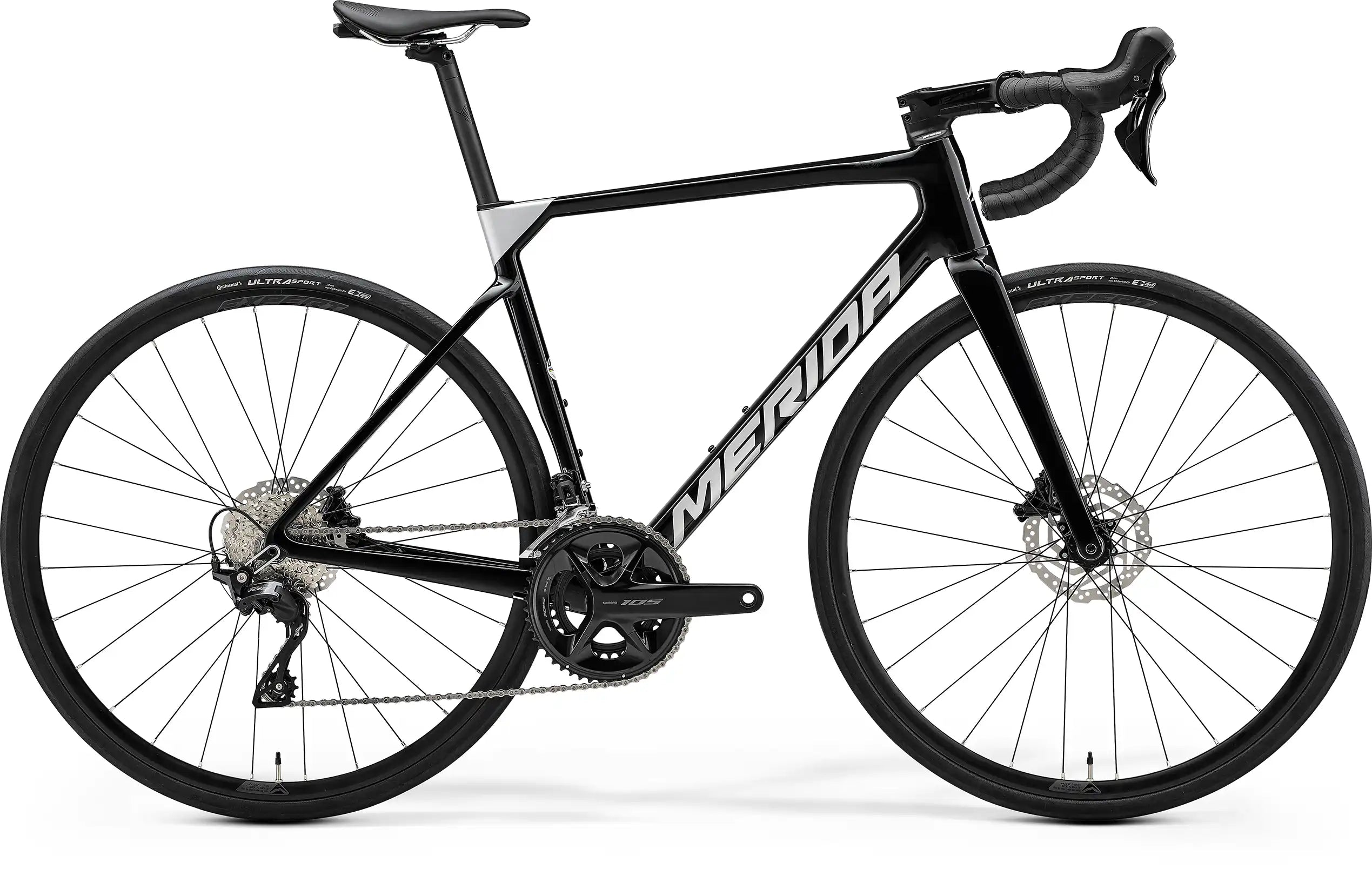

2024 Merida Scultura 4000

$3,199.00
By Merida
Interest Free $266 per month for 12 months
SKU MERR242402508

CLICK & COLLECT or LOCAL DELIVERY ONLY

Due to manufacturer warranties, shipping is only available to local area

SPECIAL ORDER ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 business day handling period for these items

This product is unavailable
More details Right

Our entry model into the SCULTURA frame family. Based on our lightweight CF3 frame featuring the same race-proven geometry as our REACTO and a solid componentry package. Our 4000 is light, aerodynamically efficient and super comfortable.

Frame: SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Size: XS-S-M-L-XL
Fork: SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS
Gears: 2 x 11
Chainwheel: Shimano 105; FCR7100, 50-34 ATC
Crank/Size: 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL
Bottom Bracket: SM-BB71-41B, Pressfit 86.5
Cassette: Shimano CS-R7101; 11-34 ATC; 12 GER
Chain: Shimano CN-M6100-12
Derailleur - F: Shimano 105
Derailleur - R: Shimano 105; GS
Shifters: Shimano 105 disc
Brakes: Shimano 105; Hydraulic disc
Rotor - F: Shimano RT10; 160mm
Rotors - R: Shimano RT10; 160mm
Handlebar: MERIDA EXPERT SLII; MAT aluminium; 380mm(XXS) , 400mm (XS) , 420mm (S-M-L) , 440mm (XL)
Stem: FSA SMR ACR; MAT aluminium; -6 ASD
Stem/Size: 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL
Head Set: FSA ACR
Seat Post: MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Hub-F: JY D981SB; 100x12 WHF; 28 SPH; Centerlock
Hub-R: JY D872SB; 12-142 WHR; 28 SPH; Centerlock
Axle-F: MERIDA EXPERT TR
Axle-R: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Spokes: Double Butted Black stainless
Rims: MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium
Tyres: Continental Ultra Sport III; 700x28C; fold
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 120kg
