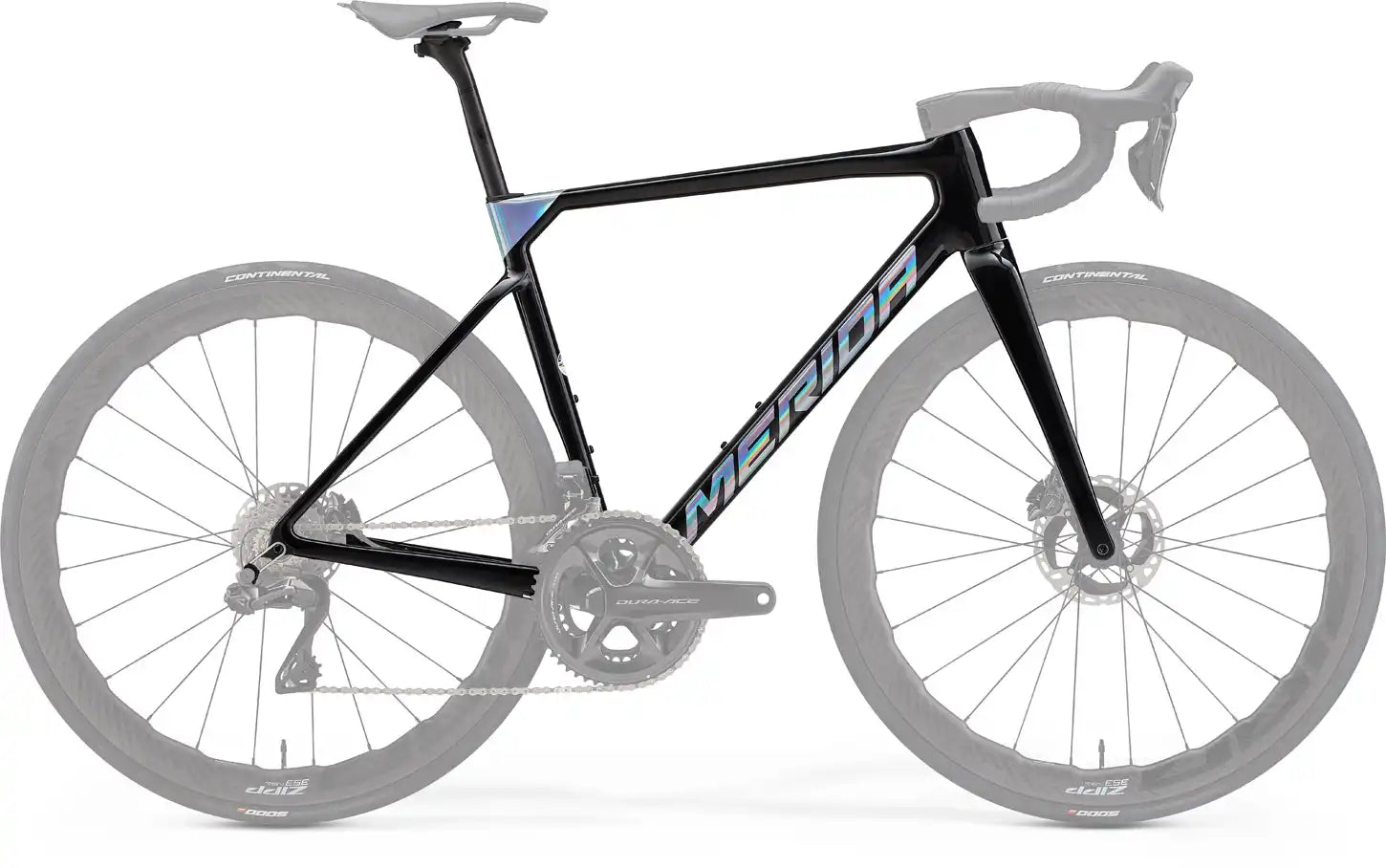

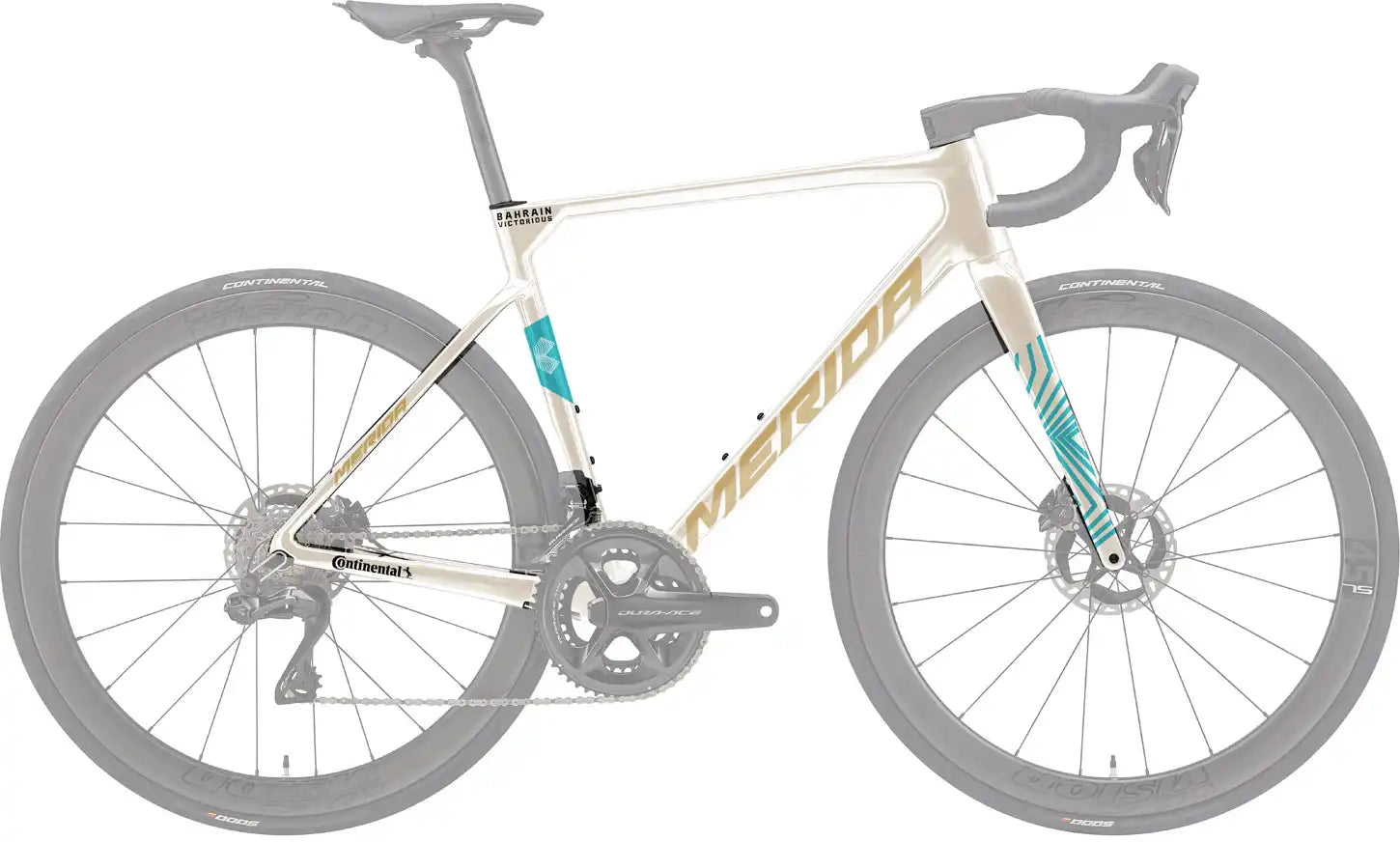

2024 Merida Scultura Team Frameset
Team level SCULTURA road race bike featuring a new frame concept and the same race prone geometry as the REACTO aero bike. The TEAM provides low weight, gunshot acceleration, air slicing frame features and class-leading frame compliance.
Frame: SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Size: XS-S-M-L
Fork: SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS
Handlebar: TEAM SL 1P INTEGRATED (Available seperately to order) - only compatible with wireless shifters
Stem: TEAM ONE-PIECE INTEGRATED (Available seperately to order)
Head Set: FSA ACR and MERIDA TEAM SL
Seat Post: MERIDA Team SL; 27.2 DSP; 15 SSB; Carbon; S-Flex (Length 350mm)
Axle-Front: MERIDA EXPERT SL 100 X 12
Axle-Rear: MERIDA EXPERT SL 142 X 12; including removable lever; 6/4mm allen key
Other: COMPUTER MOUNT KIT (Available seperately to order)
Max Rider Weight: 120kg
