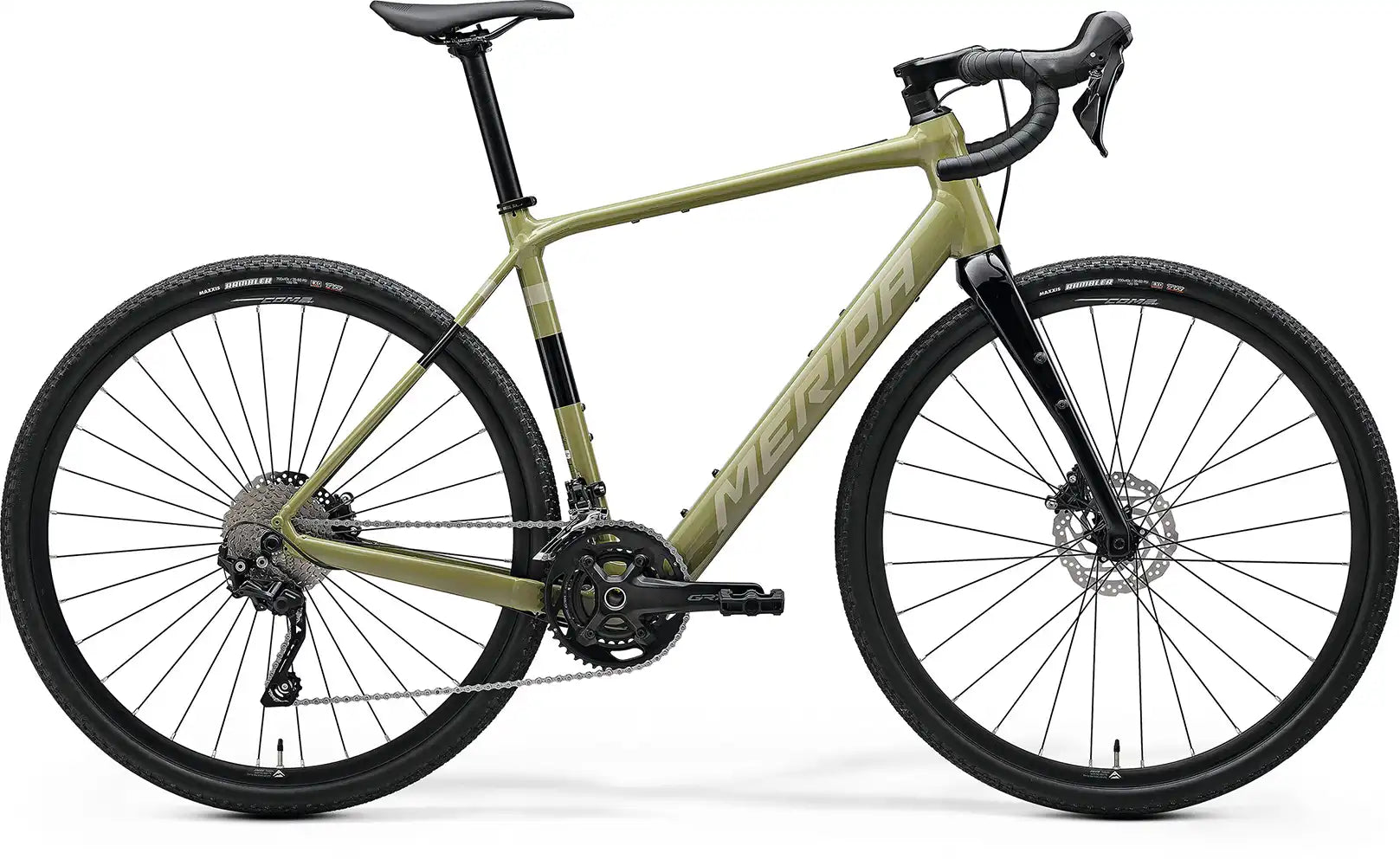

2025 Merida eSilex 400
Sometimes you need the freedom to escape. This bike gives you the power to do that, with smooth, natural-feeling hub motor assistance in a sleek off-road capable frame that's home to a 250 Wh battery.
Frame: eSPEEDER LITE III; MAT aluminium; 700x45C / 700x42C (with fender) / 27,5x47C max. WHS; 100x9/135x9 AST; BSA BBR
Fork: MERIDA SILEX CF2; carbon; max. 700x42C / 700x35C (with fender) / max. 50x650B WHS
Brake - Front: Shimano GRX400; 2 piston
Brake - Rear: Shimano GRX400; 2 piston
Rotor - Front: Shimano RT10; 160 mm
Rotor - Rear: Shimano RT26; 160 mm
Chain: KMC e10
Chainwheel: Shimano GRX600; 46-30 ATC
Crank/Size: 170 mm-XS/S/SM/ML, 175 mm-L/XL
Bb Set: Shimano RS500 BSA
Dera - Front: Shimano GRX400
Dera - Rear: Shimano GRX400
Freewheel: Shimano CS-HG50; 11-36 ATC; 10 GER
Pedal: VP VPE-891
Grip: MERIDA ROAD EXPERT
H-Bar: MERIDA EXPERT GRII; MAT aluminium; 400mm (XS-S) , 420mm (M) , 440mm (L/XL)
H-B Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD
Stem/Size: 80 mm all sizes
Head Set: MERIDA 8158
Hub - Front: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock
Axle - Front: MERIDA EXPERT SL
Rim: MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium
Saddle: MERIDA COMP SL; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT; MAT aluminium; 30.9 DSP; 0 SSB
Inner Tube: Lite
Tyre - Front: Maxxis Rambler; 700Cx40; fold; EXO
Tyre - Rear: Maxxis Rambler; 700Cx40; fold; EXO
Bottle Cage: BOTTLE CAGE ADAPTER, BK-003
Light - Front: CG-119PG-BLACK(1)
Light - Rear: CG-404RG-BLK
Drive Unit: Mahle X30 Drive Unit
Battery: Mahle ix250Wh Battery Pack; 250Wh
Battery Charger: Mahle X30 Charger
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
