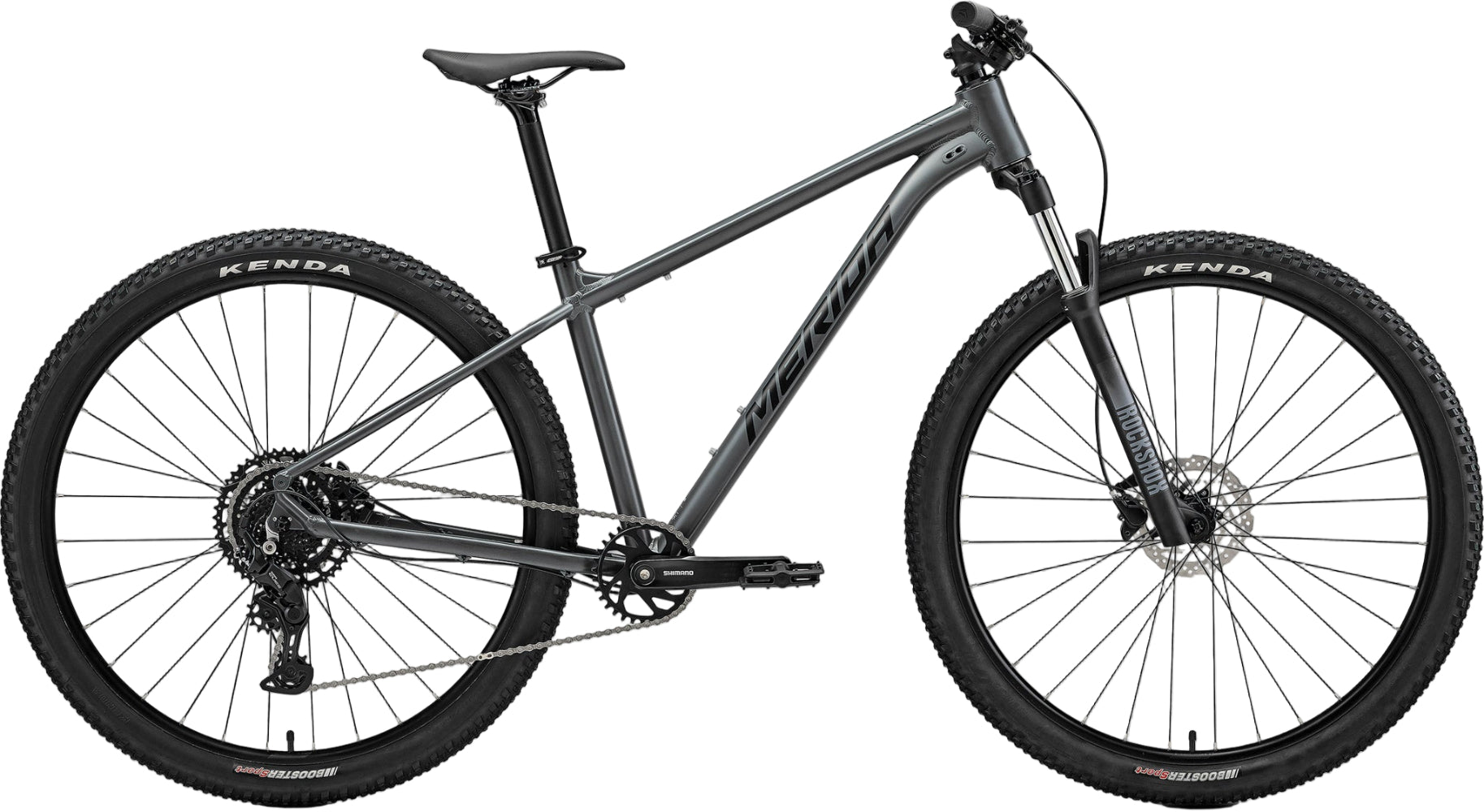

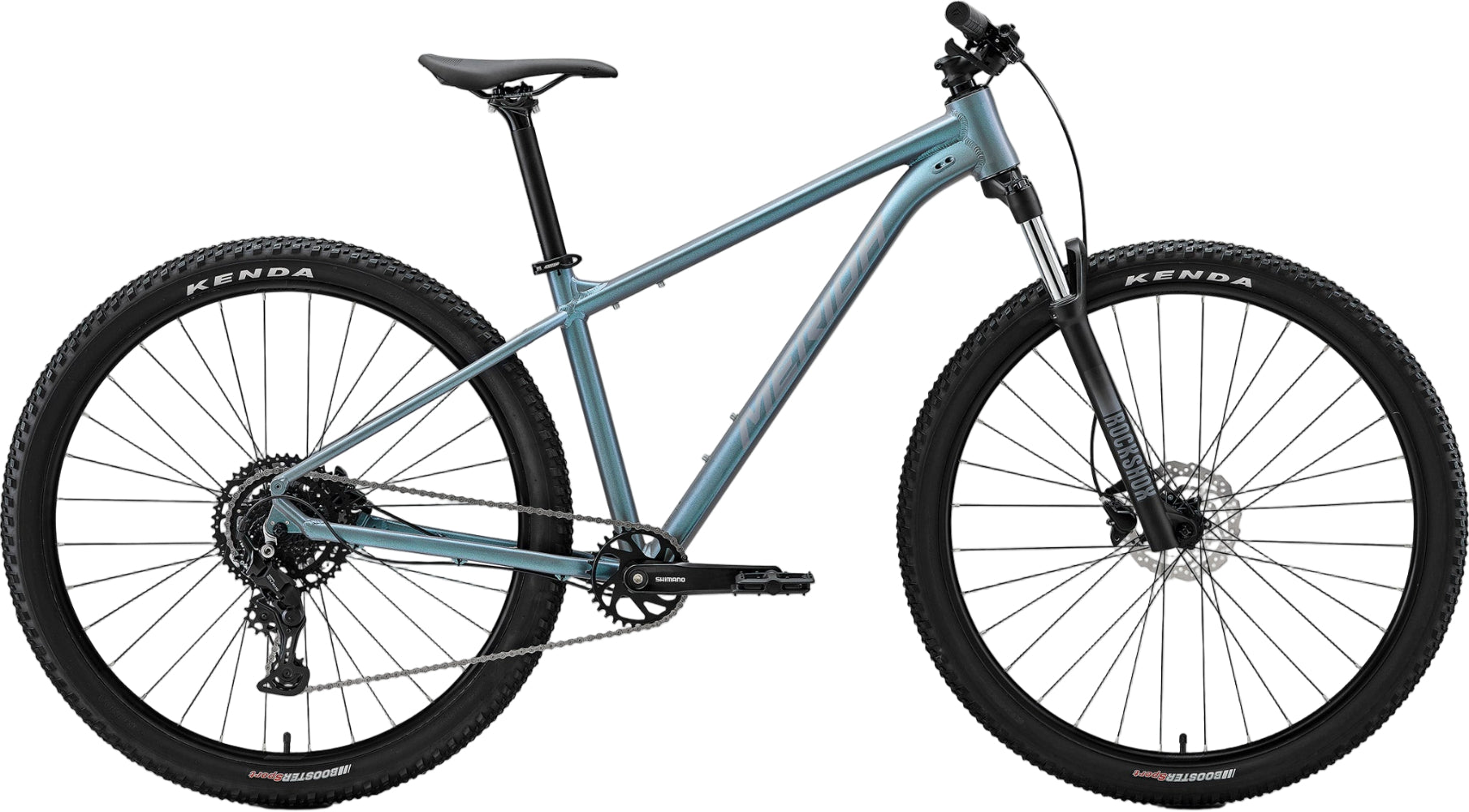

2026 Merida Big Nine 80

A tough but lightweight aluminium frame, smooth rolling 29" wheels and geometry that'll help you down your first mountain bike trails as well as anywhere else you fancy. Add in a 100 mm travel RockShox fork plus smooth Shimano 1x9-speed drivetrain and you're set.

Bottom Bracket: Shimano UN101 LL123
Brakes: F: Shimano MT200 | R: Shimano MT200
Cassette: SunRace U9 CS-U980 9AZ; 11-46 ATC; 9 GER
Chain: KMC xGlide
Crankset: Shimano Cues UT400-1; 32 ATC; MAT Aluminium; S: 165mm, M/L/XL/XXL: 170mm
Derailleur Rear: Shimano Cues U4000; GS
Fork: Rock Shox Judy TK; Coil; 100 STR Lockout; 46mm fork offset; 29x2.4" max. WHS
Frame: BIG.NINE TFS V; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR
Grip: MERIDA COMP TR
Handlebar: MERIDA CC; MAT aluminium; 15 RHB; S: 720 WHB; M/L/: 740 WHB; XL/XXL: 760 WHB
Handlebar Stem: MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD; S: 50mm, M/L:60 mm, XL/XXL: 70 mm
Headset: FSA NO.55R/57SC/57B
Hubs: F: Shimano TX505; 100x9 WHF; 32 SPH; Centerlock | R: Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
Pedals: VP VPE 536
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Rotor Front: Shimano RT10; 160 mm
Rotor Rear: Shimano RT10; 160 mm
Saddle: MERIDA COMP SL
Seat Post: MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
Shifters: F: | R: Shimano Cues U4000
Tyres: F: Kenda Booster; 29x2.4" | R: Kenda Booster; 29x2.4"
