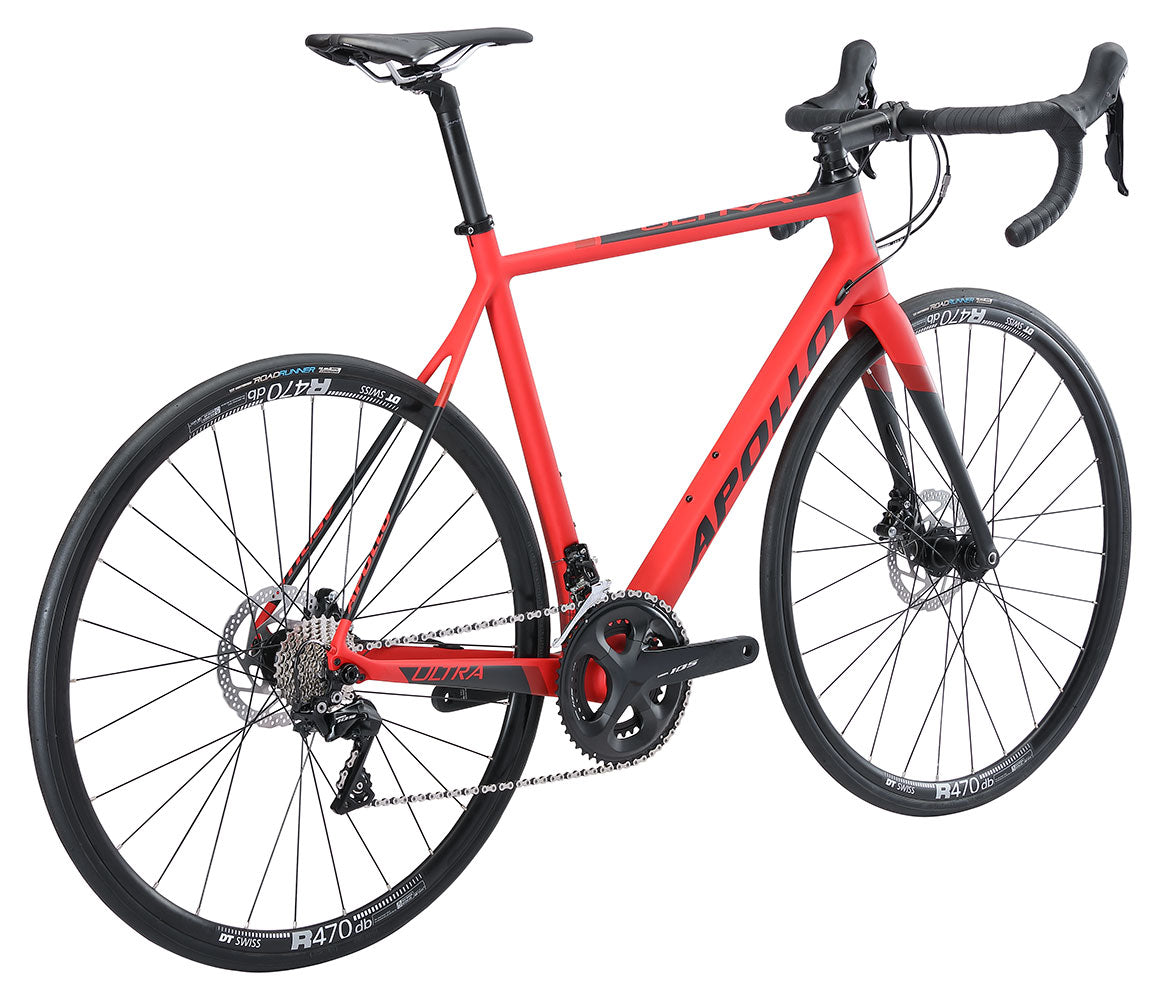

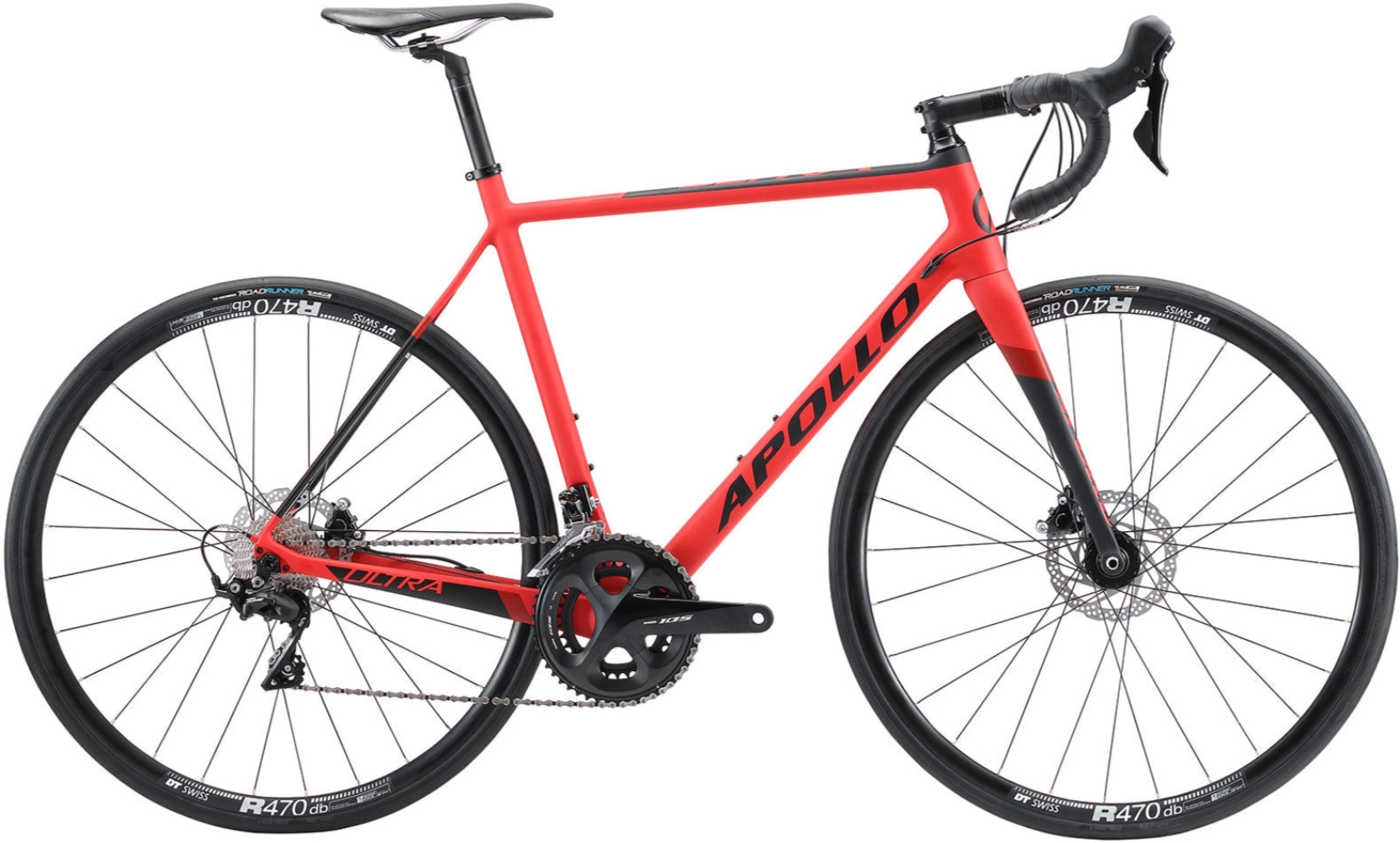

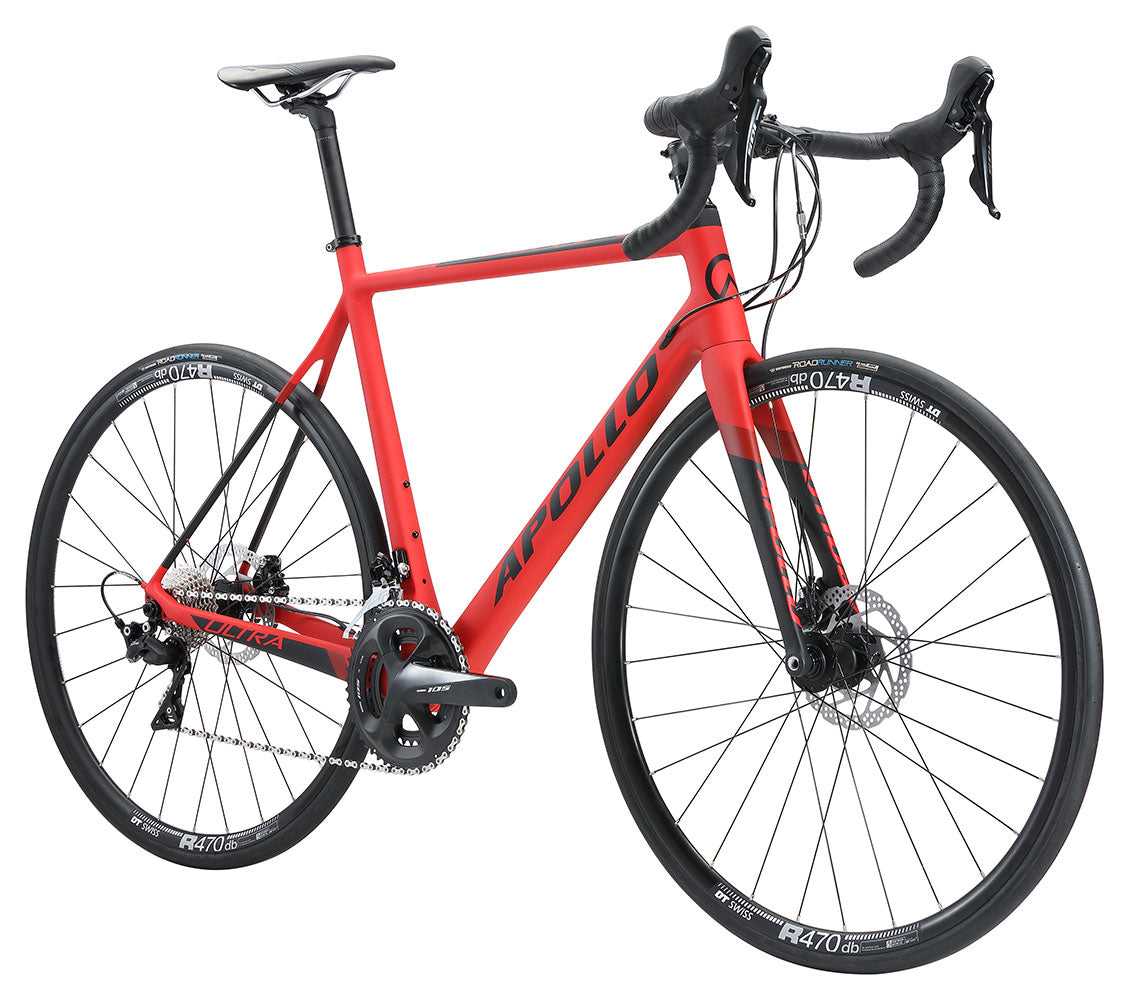

2022 Apollo Ultra 10

The new Ultra series brings a balance of race performance geometry for all out speed and sharp handling, with specs and gearing designed for efficient pedaling, easy climbing, and all-weather braking.

Frame: Hi-modulus carbon modular monocoque flat mount disc specific road frame. Box technology down tube with BB86 press fit system, tapered seatstays, 12mm thru axle, tapered head tube 1-1/8 to 1-1/2"
Fork: Full carbon straight blade flat mount disc fork with tapered 1-1/8 to 1-1/2" carbon steerer, 12mm thru axle, fully integrated
Headset: A-head integrated 1-1/2 to 1-1/8" sealed angular cartridge bearings with 15mm cone spacer
Handlebar: Apollo butted alloy anatomic shallow drop 31.8mm alloy W: XS=40cm, S/M=42cm, L/XL=44cm
Grip: Soft PU wrap with gel
Headstem: Apollo 1-1/8" 3D forged alloy 4 bolt stem. XS=90mm, S=100mm, M=110mm, L/ XL=120mm
Crankset: Shimano FC-R7000 compact 50 x 34T 2 piece crank, XS=170mm, S/M=172.5mm, L/XL=175mm
Bottom Bracket: BB86 Pressfit
Pedals: Nil
Front Derailleur: Shimano 105 braze on
Rear Derailleur: Shimano 105 11 speed
Shift Levers: Shimano 105 STI 22 speed shifters
Cassette: Shimano 11 speed cassette 11-28T
Chain: KMC 11 speed
Brakes: Shimano BR-R7020 105 hydraulic road disc brakes with 160mm rotors
Wheels: 700c DT SWISS R-470-Disc rims, 32 hole F/V, 12mm thru axle alloy disc hubs and stainless spokes.
Tyres: Veetire Roadrunner 700c x 28c, MPC - Multiple Purpose Compound
Saddle: Apollo road saddle
Seatpost / Clamp: Apollo 27.2mm 350mm long post, twin bolt, forged head, alloy seat clamp
Sizes:  XS, S, M, L, XL
