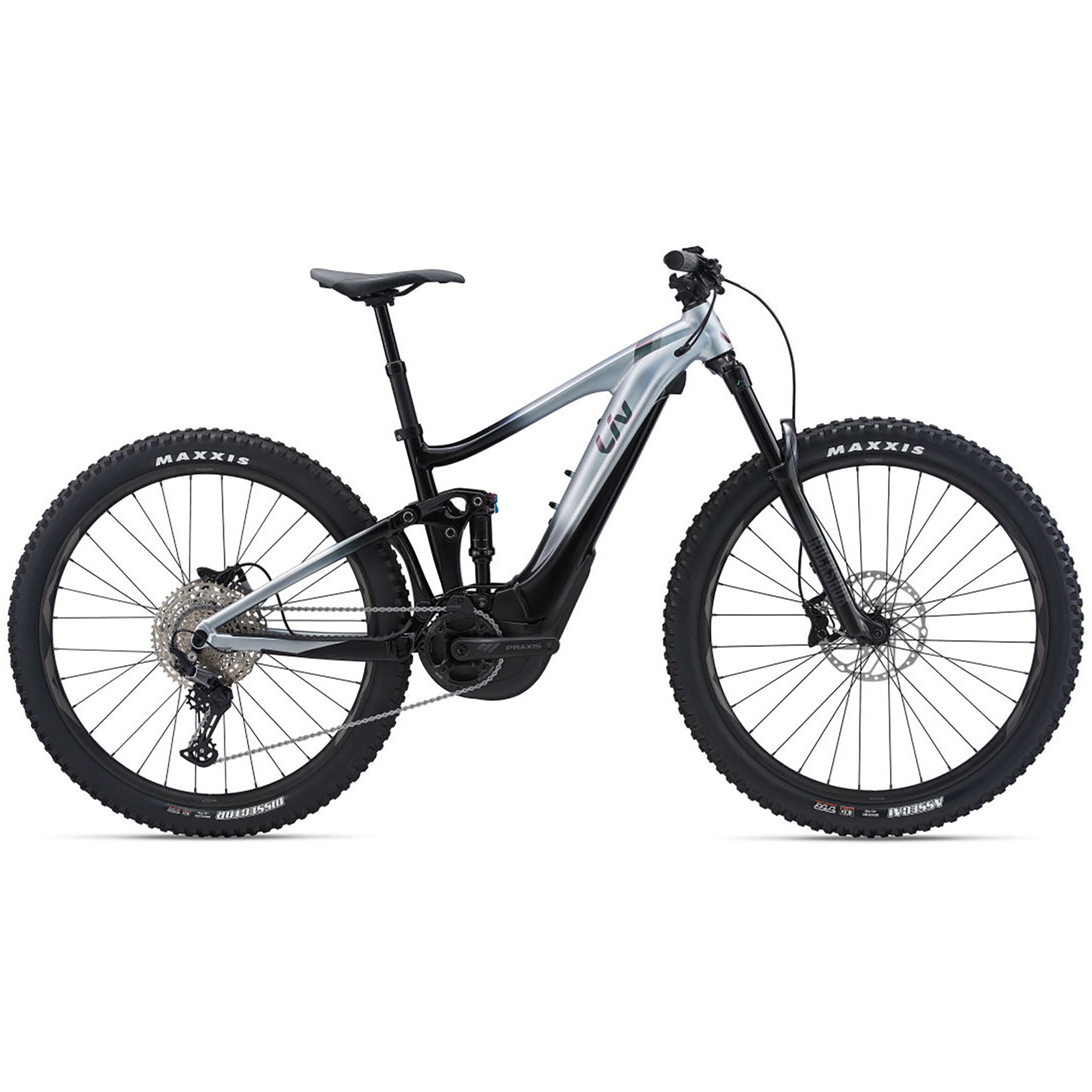

2022 Liv Intrigue X E+ 3 Pro
Sizes: 27.5: XS / 29: S, M, L
colours: Supernova/Black
Motor: SyncDrive Pro,80Nm, Powered by YAMAHA
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Controls: RideControl Ergo
Display: Wireless display compatible
Charger: EnergyPak 6A smart charger
Frame: ALUXX SL-Grade Aluminium, 140mm Maestro Suspension, flip chip, 12x148mm thru-axle Giant EnergyPak Plus Range Extender Compatible
Fork: Rock Shox 35 Gold RL DebonAir, 150mm travel, 44mm offset, Motion Control rebound and lockout control, 15x110mm Boost, Maxle Stealth, e-MTB optimised
Shock: Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position lever
Handlebar: Giant Contact TR35, alloy, 35mm
Grip: Liv Supera Lock-on
Stem: Giant Contact SL 35, XS: 40mm, S:40mm, M:50mm, L:60mm
Seatpost: Giant Contact Switch dropper, remote, XS: 100mm travel / 30.9 x 345mm, S: 150mm travel / 30.9 x 345mm, M: 125mm travel / 30.9 x 395mm, L: 150mm travel / 30.9 x 440mm
Saddle: Liv Sylvia E+
Pedal: Platform
Shifters: Shimano Deore
Front Derailleur: MRP 1X CS custom
Rear Derailleur: Shimano Deore 12-speed
Brakes: Shimano BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Shimano Deore BL-M4100, I-spec EV
Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel, Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS:160mm, S:160mm, M: 165, L:170mm)
Bottom Bracket: N/A
Rims: Giant AM 29 / 27.5+, Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock
Spokes: Sapim
Tires: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F], Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] (XS: 27.5+ / S-L: 29)
Lights: N/A
Kickstand: N/A
Carrier: N/A
Lock: N/A
Extras: Tubeless kit (liquid, valves, levers)
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
