2022 Merida Crossway 10 M/L Silk Dark Silver | ABC Bikes
Special Order 13% off

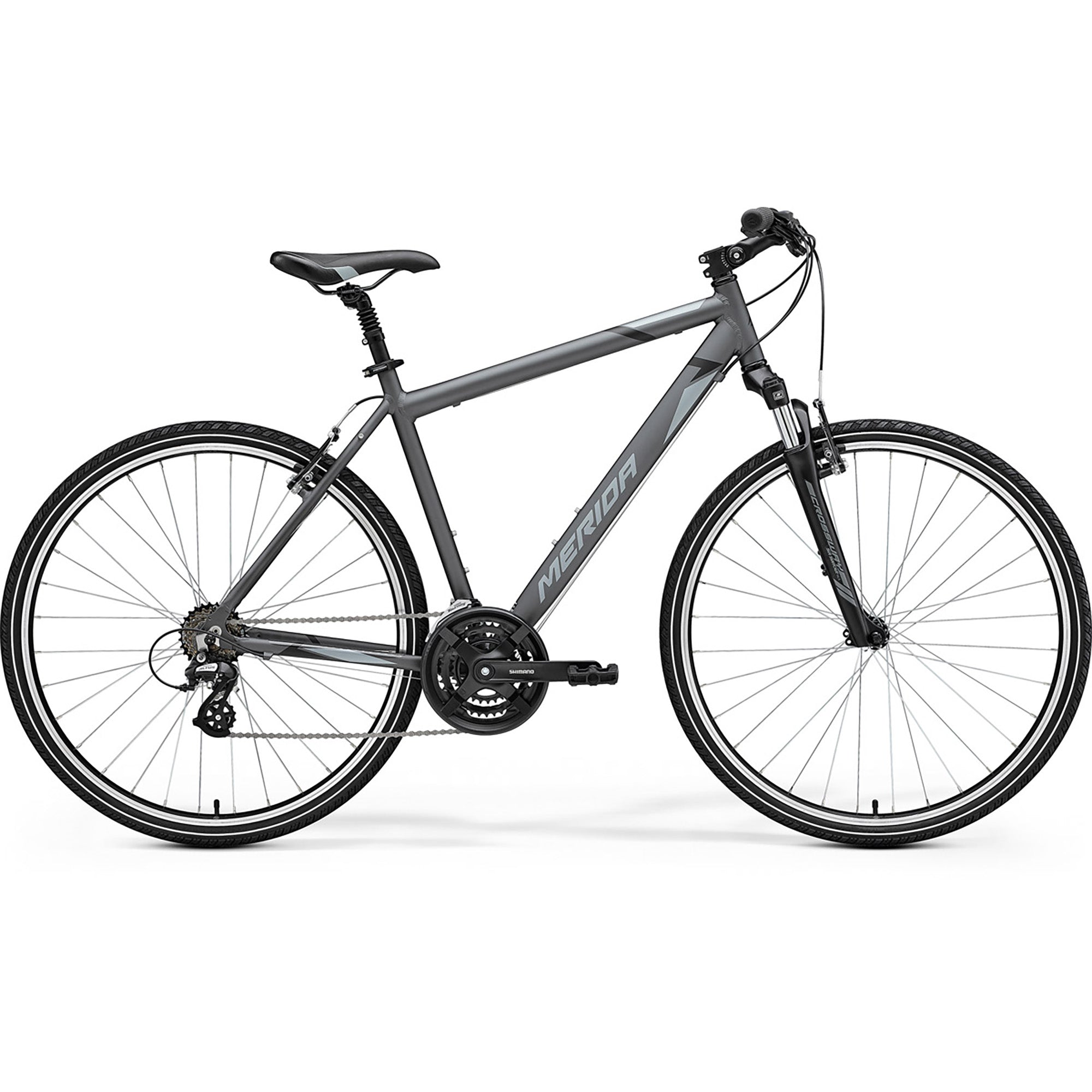

2022 Merida Crossway 10

$611.00 $699.00
By Merida
Interest Free $50 per month for 12 months
SKU 4710949832186

CLICK & COLLECT or LOCAL DELIVERY ONLY

Due to manufacturer warranties, shipping is only available to local area

SPECIAL ORDER ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 business day handling period for these items

Size
Colour: Silk Dark Silver
Minus Plus
More details Right


Frame: CROSSWAY DT; MAT aluminium; 700C WHS; 135x9 AST; BSA BBR
Sizes: XS-S-S/M-M/L-L-XL
Fork: Suntour NEX; Coil; 63 STR
Gears: 3 X 7
Chainwheel: Shimano TY301; 48-38-28 ATC
Crank Length: 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
Cassette: Shimano MF-TZ500; 14-28 ATC; 7 Speed
Chain: KMC Z7
Derailleur - Front: Shimano FD-TY510
Derailleur - Rear: Shimano RD-M310
Shifters: Shimano ST-EF500
Brakes: Promax MTV-117A
Rotors: N/A
Handlebars: MERIDA CC; MAT steel; 620 Wide; 30 Rise
Stem: MERIDA TK; MAT aluminium; 25.4 Diameter; adjustable
Stem Length: 100 mm all sizes
Head Set: FSA TH888
Seat Post: MERIDA TK; 27.2 Diameter; 13 Setback; 40 SST
Saddle: MERIDA Cross Sport
Hub - Front: Joytech JY-751DSE; 100x9 WHF; 32 Spokes
Hub - Rear: Joytech JY-752DSE; 135x9 WHR; 32 Spokes
Axle: Quick Release
Spokes: Steel UCP
Rims: MERIDA CC; 17 IWR; MAT aluminium
Tyres: MERIDA K1171; 700x40C; wire
Pedals: VP VPE-891
Max Rider Weight: 120kg
