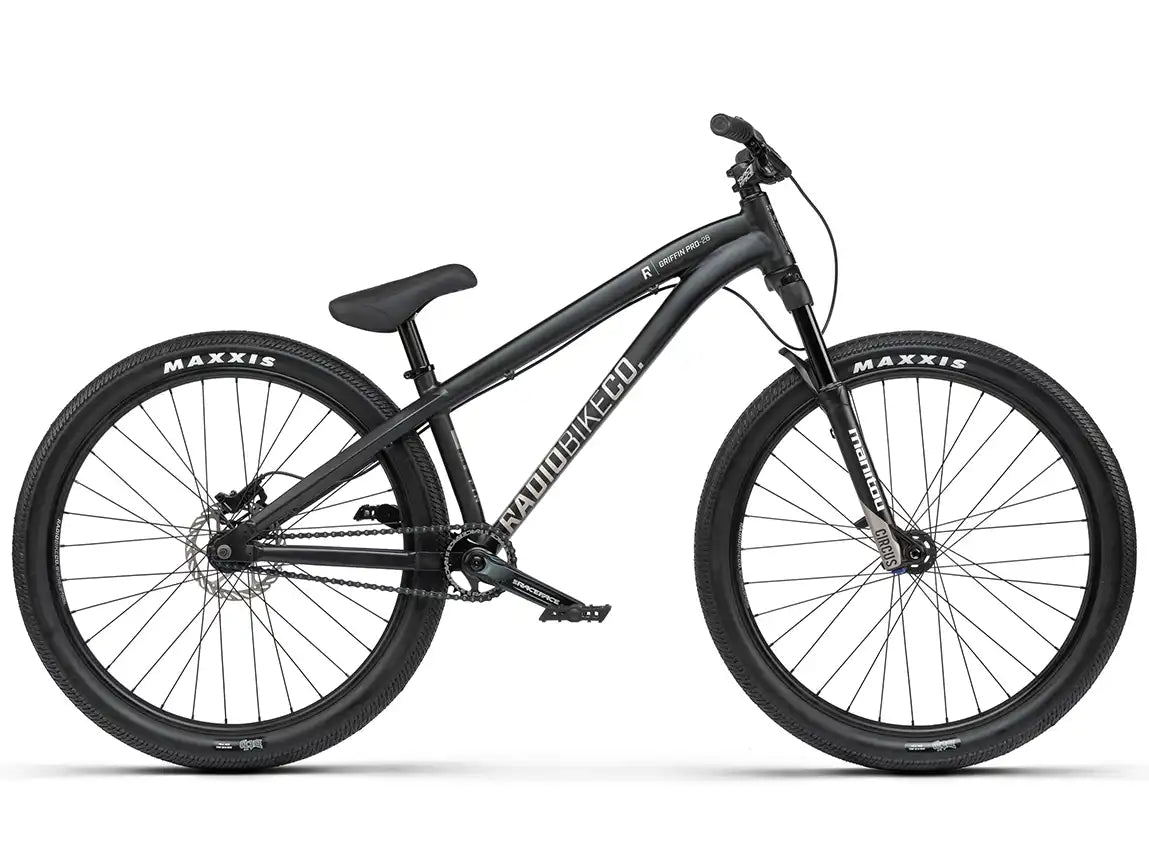

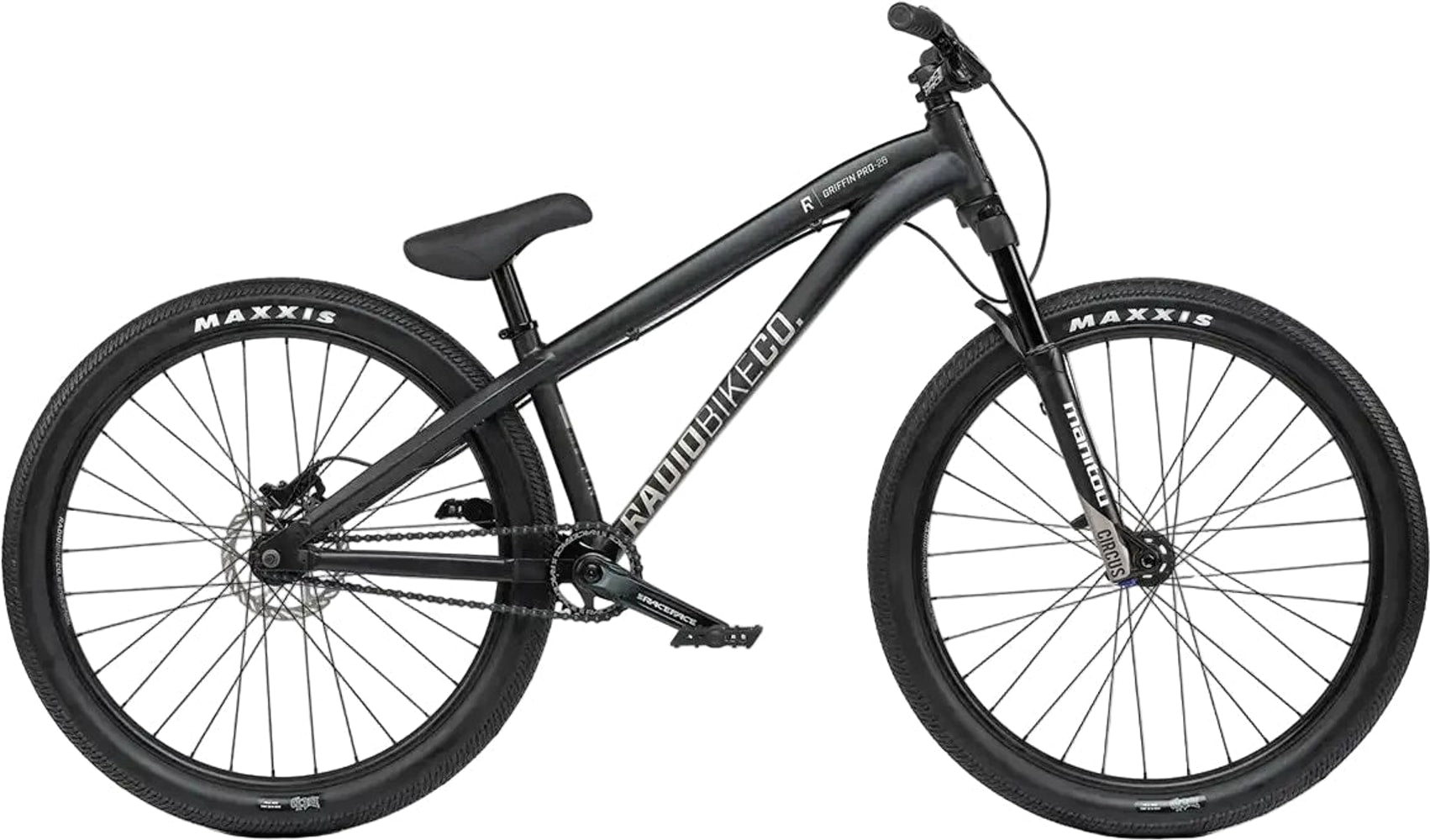

2022 Radio Griffin Pro
The crème de la crème of 26” bikes, the griffin pro is built around a super light and stiff 6061-t6 alloy frame and is adorned with manitou “circus expert” 100mm forks and a premium level parts package from race face and maxxis. A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.
Frame: RADIO "GRIFFIN PRO" frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
Fork: MANITOU "CIRCUS EXPERT" fork, 100mm travel
Bars: RADIO "GRIFFIN" bar, 6061-T6 alloy, 35mm
Grips: RADIO "FREQUENCY XL" grips, flangeless, 160mm
Stem: RACE FACE "CHESTER 35" frontload stem, alloy, 40mm reach
Headset: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
Lever: TEKTRO "RS-360A" front lever / SRAM "DB-LVL-A1" rear lever
Brakes: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / SRAM "DB-LVL-A1" hydraulic disc brake, 160mm rotor, rear
Cranks: RACE FACE "AEFFECT" crank, alloy, 170mm
Bb : RACE FACE "AEFFECT" BSA bb set, sealed bearing
Pedals: RADIO "SLIM" pedals, nylon/fiberglass
Chain: SALT "AM" chain, WZ1 type
Sprocket: RACE FACE "AEFFECT" sprocket, alloy, 28t
Driver: cassette driver, 10t, sealed bearing
Front Hub: RADIO "PRO-DJ" disc hub, alloy, sealed, 15mm alloy through axle, 32h
Rear Hub: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
Front Rim: RADIO "DB-T25" rim, double wall, sleeved
Rear Rim: RADIO "DB-T25" rim, double wall, sleeved
Seat: RADIO “CENTURY” pivotal seat, fat padded
Seat Post: RADIO "PIVOTAL" seat post, alloy
Seat Clamp: RADIO "SLIM" seat clamp, alloy
Tires: MAXXIS "DTH" tires, 2.3", front & rear
