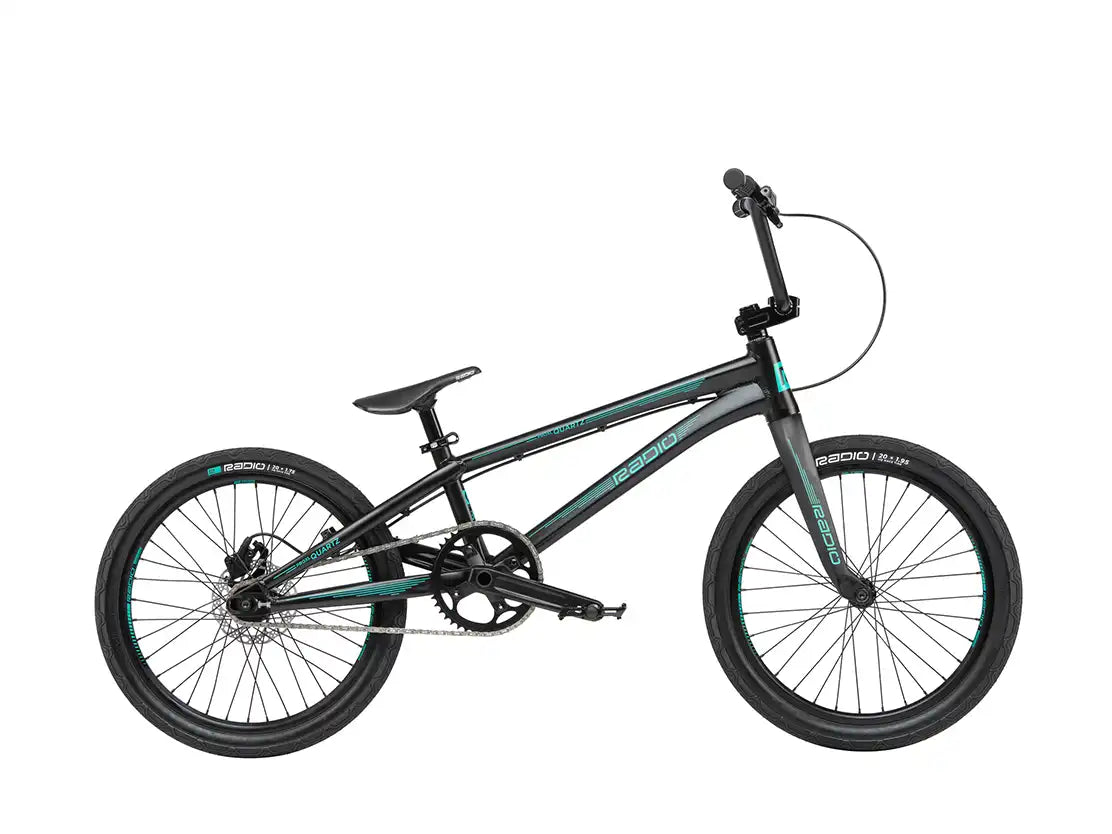

2022 Radio Raceline Quartz Pro XL

by Radio
Sold out
Original price $2,899.00 - Original price $2,899.00
Original price
$2,899.00 - $2,899.00
Current price $2,899.00
SKU 4055822509718
Out of stock


These items are ordered directly from our supplier for your order
Please allow a 3-5 day handling period for these items

Colour: Matt Black

The best of the best! The quartz is our x2 world championship winning super-lightweight alloy frame with no details spared. Radio took this frame and draped it in only the very best components creating a full pro build that anyone would be jealous to own. You’ll find their solar carbon fork, oxygen tires, argon rims, turbine hubs and even our new hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, they hope you can keep up with the speed that this machine can put out!

Frame: lightweight hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners
Fork: RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset
Bars: RADIO RACELINE "NEON PRO" hydroformed bar, multiple butted & heattreated crmo
Grips: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
Stem: RADIO RACELINE "NEON PRO" toploader stem, ext. 54mm, cnc machined, alloy
Headset: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"
Lever: RADIO RACELINE 2 finger lever for hydraulic disc brakes
Brakes: RADIO RACELINE hydraulic disc brake, 120mm rotor, rear
Cranks: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy,180mm length, 24mm spindle
BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
Pedals: RADIO RACELINE "XENON SLIM" pedal, alloy
Chain: KMC "Z1eHX" chain, 1/2" x 3/32"
Sprocket: RADIO RACELINE "XENON PRO" sprocket, 44T, alloy
Freewheel/Driver: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
Front Hub: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 36T, 3/8" female crmo axle
Rear Hub: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 36T, disc brake cassette, 3/8" female crmo axle
Front Rim: RADIO RACELINE "ARGON PRO" rim, flash welded, 36H, tubeless ready, alloy
Rear Rim: RADIO RACELINE "ARGON PRO" rim, flash welded, 36H, tubeless ready, alloy
Seat: RADIO RACELINE "XENON" pivotal seat, no padding
Seat Post: RADIO RACELINE pivotal seat post, 27.2mm, alloy
Seat Clamp: RADIO RACELINE "HELIUM PRO" seat post, quick-release, alloy
Tyres: RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"
