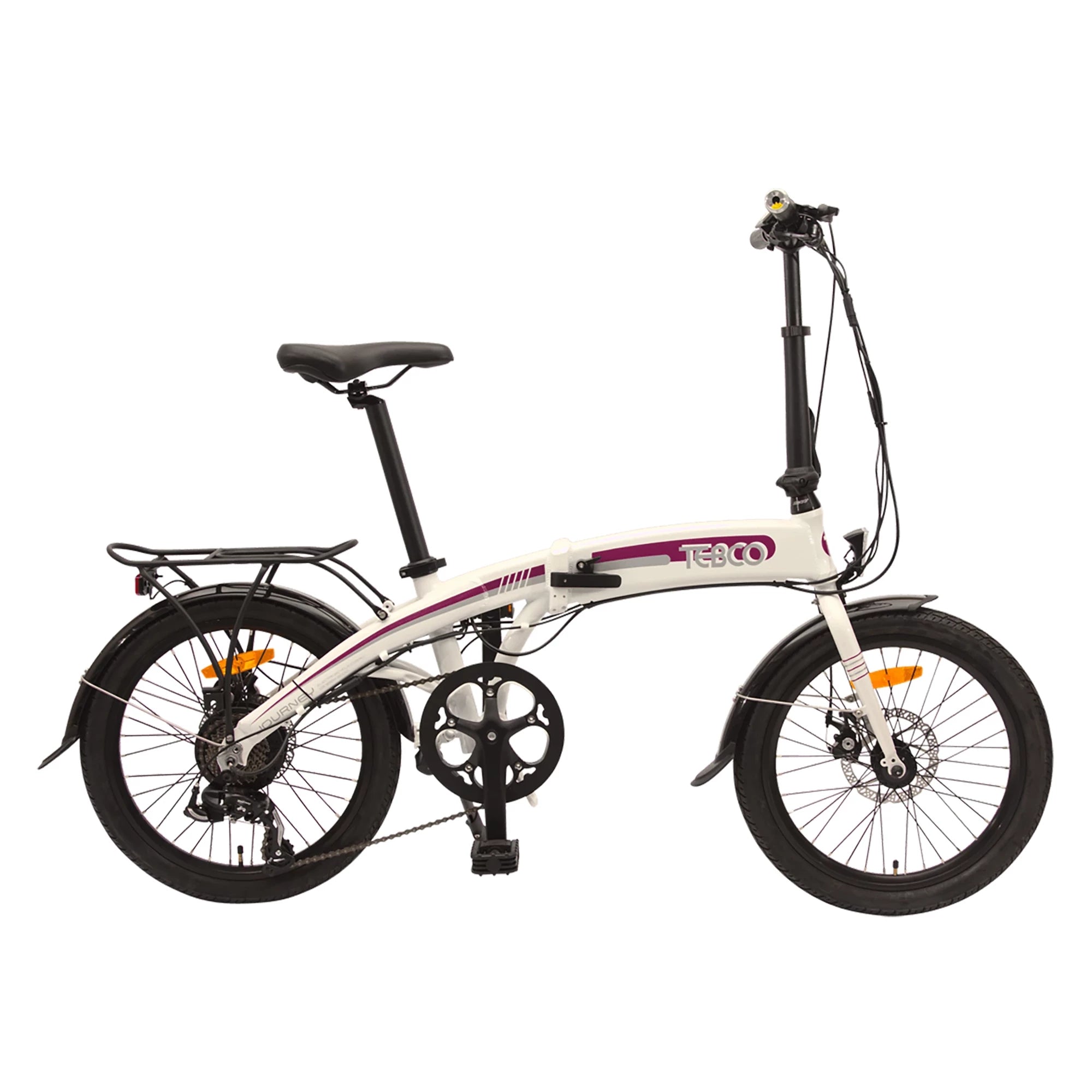

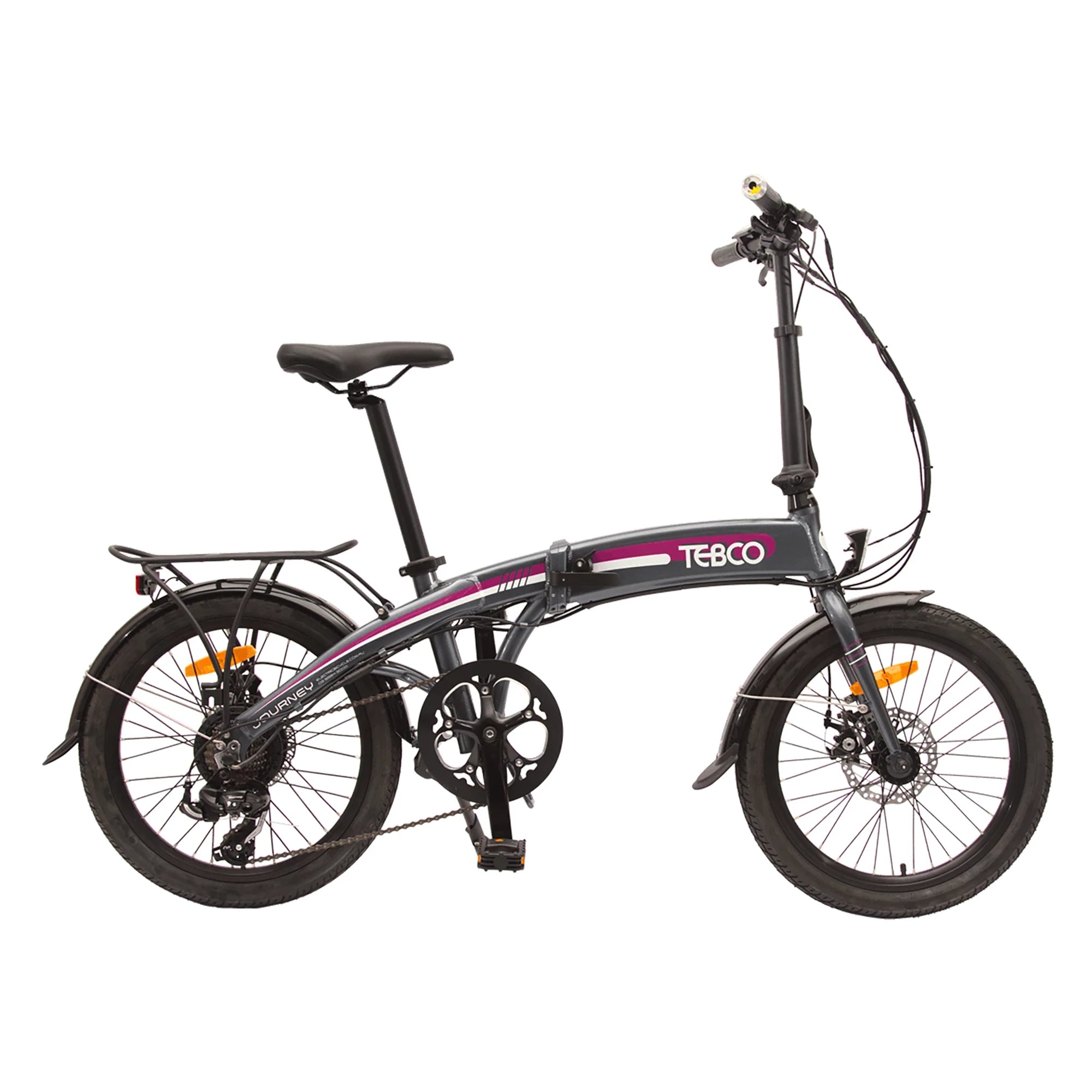

2022 TEBCO Journey

Lightweight & portable. A must have folding bike for all travellers.

Frame: 6061 Grade Alloy
Wheel Size: 20in 36H Front and Rear
Fork: SUNTOUR NEX Allum Suspension
Handlebar: ZOOM HB-T320
Stem: PROMAX MQ-565S
Seatpost: ZOOM Alloy 550*32.8mm
Seat Clamp: Alloy Quick Release
Saddle: MINGCHENG Susp 290 x 270mm
Shifters: SHIMANO SL-M310-7R
Derailleur: SHIMANO ARDTY500D
Rims: PARWEIER 25DE 20Inch 36H Double Wall Alloy
Hubs: NUOD Aluminium
Spokes: 13g 2.2mm F / 12g 2.6mm R Stainless Steel
Tyres: KENDA K924 20in x 2.125in
Cranks: PROMAX E44PP/32 170MM 52T
Pedals: YONGHUA 8X
Chain: KMC Z51/RB/140L
Brakes Front: TEKTRO Aries Mechanical Disc
Brakes Rear: TEKTRO Aries Mechanical Disc
Brake Levers: WUXING 108PPD/4
Mudguards: Black Plastic 20in x 65mm
Stand: Chain Stay Side Frame Mount Adjustable Alloy
Rear Rack: Alloy 20in Pannier Compatible
Motor: ShengYi 36V 200W DGW07-32 20in Rear Wheel
Controller: 15Ah LISHUI Brushless LSW1155-59M
Battery: SAMSUNG 36V 9.6Ah 30pcs 18650 3200MAh
Battery Life: Up to 800 recharges from flat
Battery Weight: 2.4kg
Display Panel: KEY DISPLAY KD21C
Twist Grip Acc Assy: Wuxing 158X.T / HT406 Slimline
Pedal Activation: KUNTENG 12 Magnet Left Crank Mount
Light Front: BUCHEL LED 51252712 Static Illumination
Light Rear: BUCHEL LED 51254523 Static Illumination
Charger: Sans 36V 2Amp Lithium AU Compliant
Main Cable: JULET 1T5 Waterproof Quick Release
Audible Warning: HONKA HOOTA Black
Max Speed: 25kmh
Max Range: 80kmh 1:1 Pedal Assist
Bicycle Weight: 20kg incl battery
