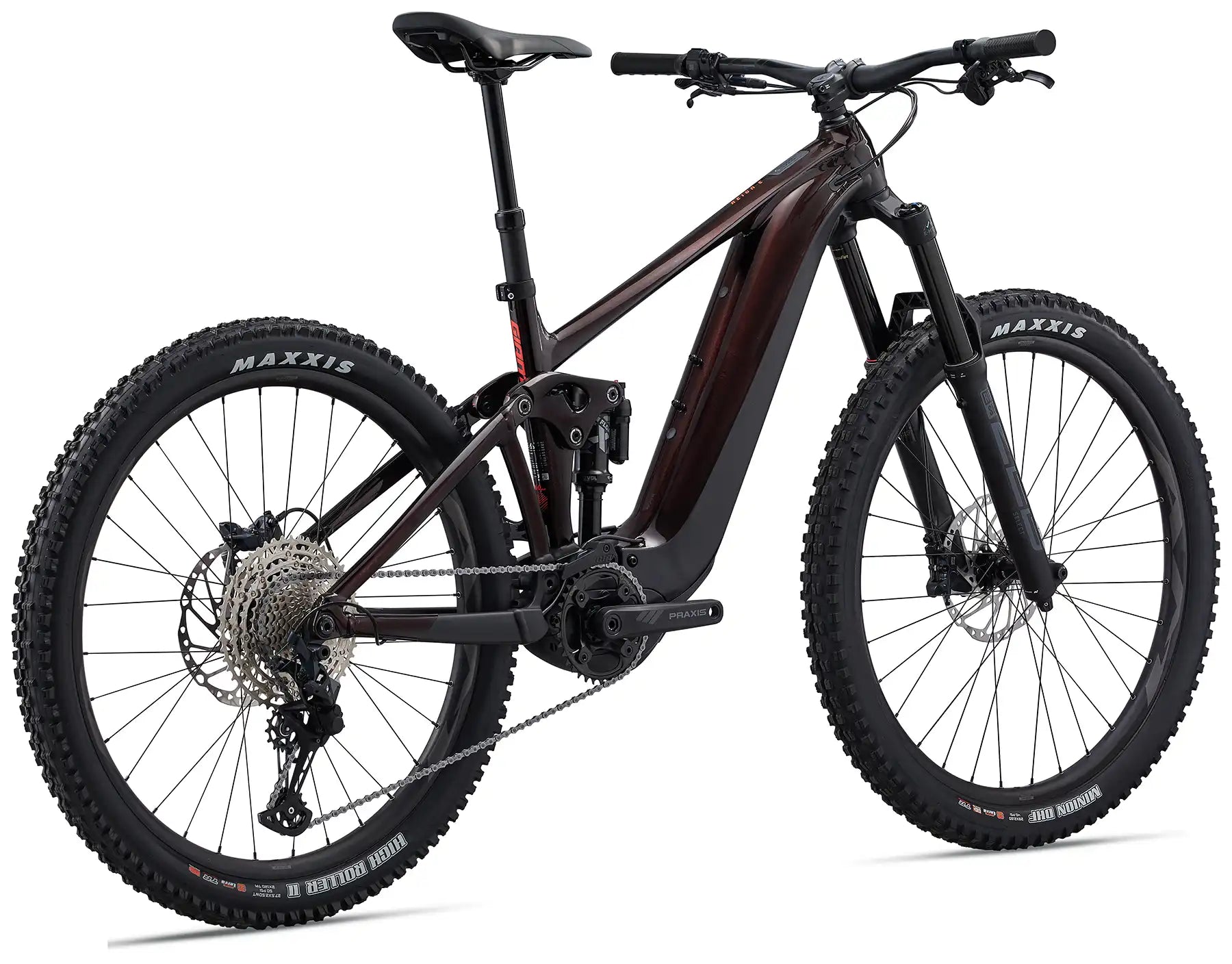

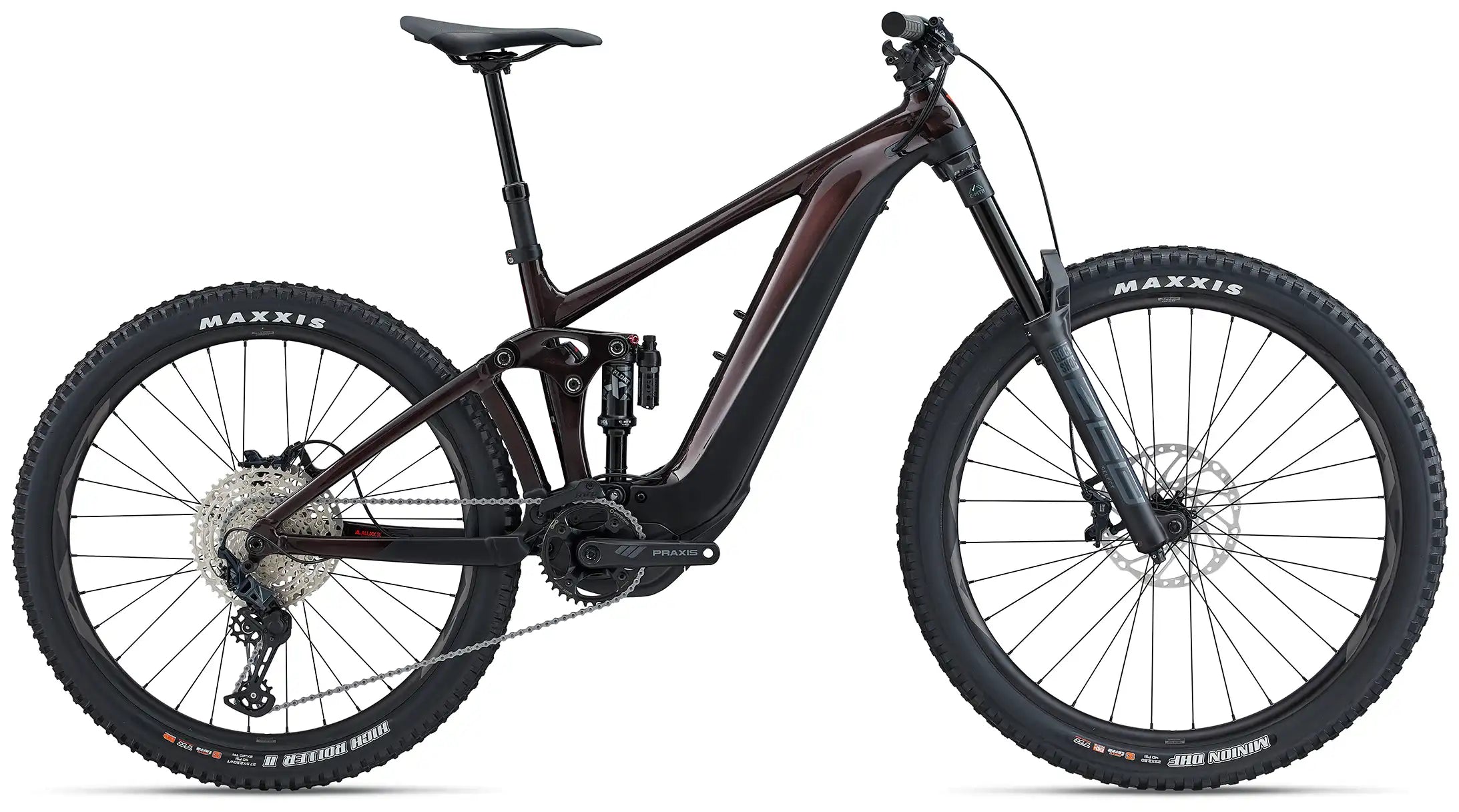

2023 Giant Reign E+ 2
Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this updated trail ripper gives you the power to enjoy the best parts of the ride again and again.
Sizes: S, M, L, XL
Colours: Cordovan/Black
Motor: SyncDrive Pro, 85Nm, powered by Yamaha
Battery: EnergyPak Smart 800Wh
EnergyPak Plus range extender compatible
Controls: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display
ANT+ Wireless display compatible
Charger: EnergyPak 6A smart charger
Frame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, 12x148mm thru-axle
Fork: RockShox ZEB Select 29er, 170mm travel, Charger RC damper, 15x110 Boost, Maxle Stealth, E-bike Approved
Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2-position lever, custom tuned
Handlebar: Giant Contact Trail, 35mm
Grip: Giant Tactal Pro-E, single lock-on
Stem: Giant Contact SL 35mm S:40mm, M:50mm, L:50mm, XL:60mm
Seatpost: Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm
Saddle: Giant Romero Trail
Pedal: Platform
Shifters: Shimano Deore SLX
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore SLX, 12-speed, Shadow+
Brakes: Shimano SLX BR-M7120, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Shimano SLX, I-spec EV
Cassette: Shimano HG-M6100, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset: Praxis Wave™ 36T Cold Forged 4130 premium steel
Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
Bottom Bracket: N//A
Rims: Giant AM 29"[F] 27.5"[R], Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock
Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
Tyres: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]
Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Lock: Torx 25 Battery Lock with built-in Torque limiter
Extras: Tubeless kit (liquid, valves, levers)
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
