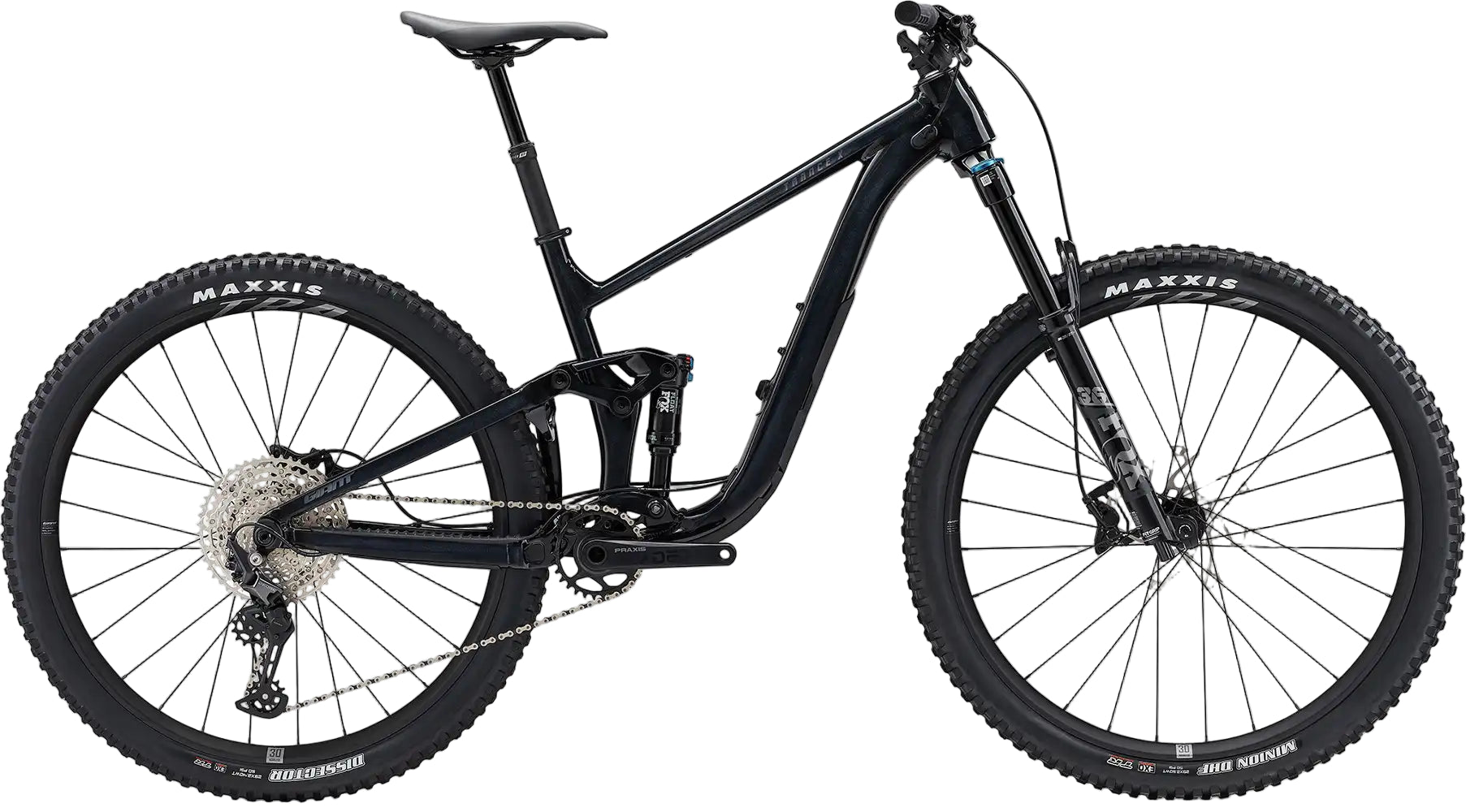

2024 Giant Trance X 2
Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
Colours: Metallic Black
Sizes: S, M, L, XL
Frame: ALUXX SL-Grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork: Fox 36 Float Rhythm, Grip, 44mm offset,150mm travel, Boost 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float Performance, 2 position lever, Trunnion, custom tuned for Giant
Handlebar: Giant Contact TR35, composite, 35mm
Grips: Giant Tactal Pro Single lock-on
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero
Pedals: N/A
Shifters: Shimano Deore M6100, 1x12
Front Derailleur: N/A
Rear Derailleur: Shimano Deore-M6100
Brakes: Shimano BR-M420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers: Shimano BL-MT401
Cassette: Shimano M6100, 10x51
Chain: KMC X-12
Crankset: Praxis Cadet, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket: Praxis, press fit
Rims: Giant TRA Hookless Tubeless ready Alloy 29 30mm inner width
Hubs: Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Spokes: Sapim Lite [R] Race [F]
Tyres: [F] Maxxis Minion DHF 29x2.5WT, 60 TPI, EXO, TR [R] Maxxis Dissector 29x2.4WT, 60 TPI, EXO, TR
Extras: Tubeless prepared, max tyre size 2.5", max chainring size 34t
