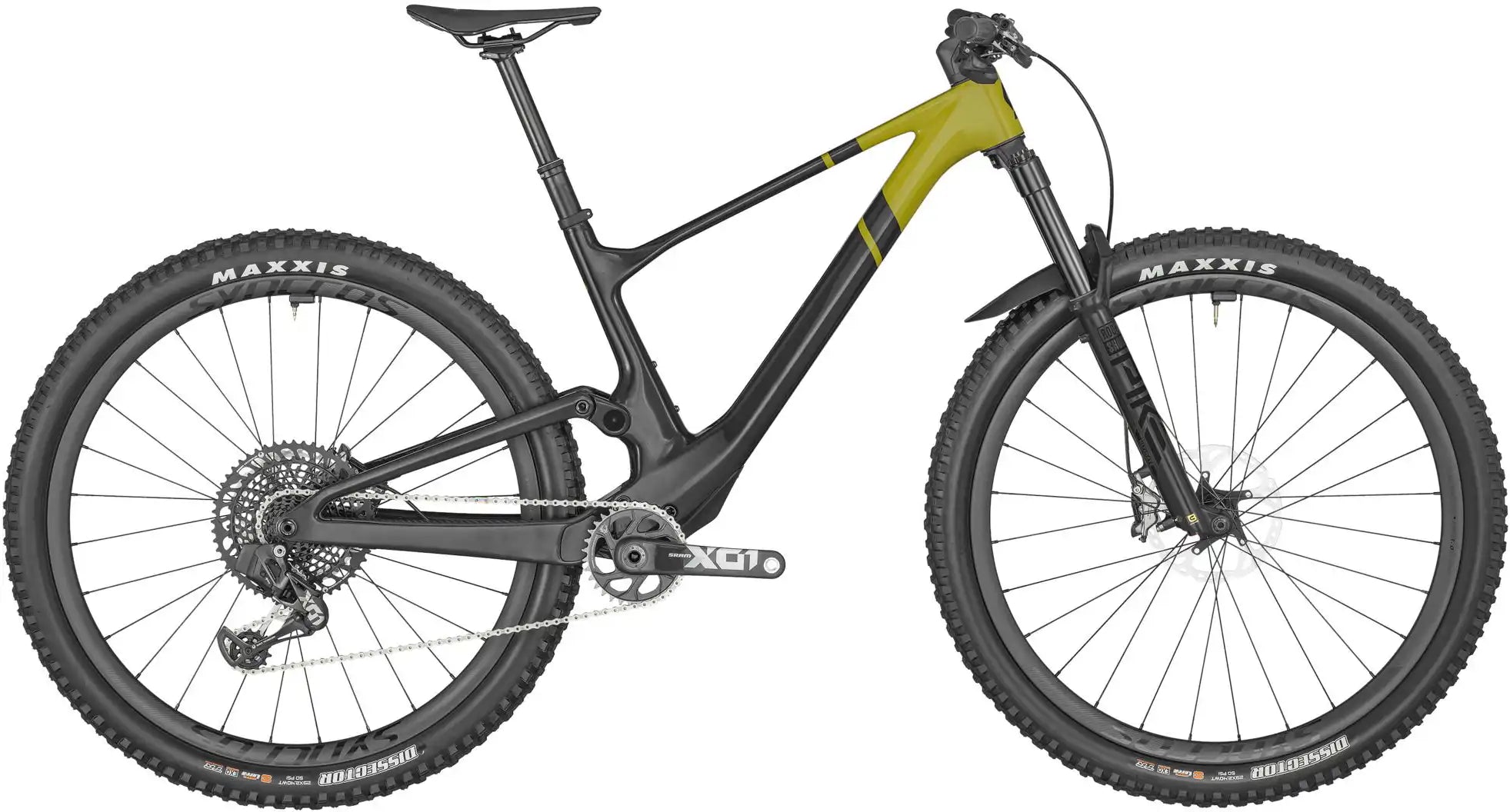

2024 Scott Spark ST 900 Tuned

by Scott
Original price $12,499.00 - Original price $12,499.00
Original price $12,499.00
$9,999.00
$9,999.00 - $9,999.00
Current price $9,999.00
SKU
Availability:
3+ Available
Availability:
3+ Available
Availability:
3+ Available
Availability:
3+ Available

CLICK & COLLECT ONLY

Due to manufacturer warranties, shipping is not available

SPECIAL ORDER ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 day handling period for these items.

Choose a Size

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever…

Frame: Spark ST Carbon HMF, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork: RockShox Pike Ultimate Air, Charger 3 RC2 w/Butter Cups Damper, HSC-LSC-LSR adjustable / 15x110mm Maxle Lite
Rear Shock: FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Climb-Traction Control-Descend, Custom large Air volume / Comp & Reb. Adj., Travel 120-80-Climb / T165X45mm
Remote System: TracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes
Rear Derailleur: SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System
Shifters: SRAM GX Eagle AXS Rocker Controller
Crankset: SRAM X01 DUB Eagle Carbon crankarm, 55mm CL / 32T
BB-Set: SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain: SRAM CN X01 Eagle
Cassette: SRAM X01 XG1295 / 10-52 T
Brakes: Shimano XTR M9120 4 Piston Disc
Rotor: Shimano SM-RT76 / 6 Bolt / F&R 180mm
Handlebar: Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 780mm, Syncros Endurance lock-on grips
Seatpost: Syncros Duncan Dropper Post 1.5, 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Seatpost: Syncros Duncan Dropper Post 1.5, 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Headset: Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Wheelset: Syncros Silverton 1.0-30 6 Bolt, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H
Front Tire: Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra
Rear Tire: Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra
Approx weights in KG: 11.95 (Tubeless setup)
Max. System Weight: 128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Extras: SRAM AXS Powerpack, SRAM TyreWiz, Syncros Fork Fender

Scott Twinloc Suspension System

WHAT IS TWINLOC?

The TwinLoc Suspension System is a proprietary SCOTT Suspension System that allows a rider to control a bikes suspension performance and geometry simultaneously.

With TwinLoc, you can have three bikes in one.

Scott Dual Suspension Bikes

HOW DOES IT WORK?

The system works by connecting the shock, fork, and ultimately the frame via a handlebar remote. With the remote, the user has the ability to choose from three ride modes, Descend, Traction Control and Lockout. Let's explain each of these modes independently.

WHY DOES IT MATTER?

Let's now look at each mode to see why they matter, and how they affect your ride.

Descend Mode

Our Proprietary FOX Nude shock features two positive air chambers. In Descend mode, both chambers are open, essentially creating one large volume chamber. This gives you the full amount of available rear wheel travel. Both fork and shock are fully optimized for downhill performance with regards to both air spring rate and damping.

Traction Control Mode

In Traction Control mode, one chamber is closed off, reducing the shock's air volume. This reduces the effective travel and results in a more progressive air spring curve. This combined with an increase in compression damping leads to a few changes. Primarily, the system changes the bikes geometry when switching from Descend Mode to Traction Control Mode. You sit higher in the shock's travel, ground to pedal clearance is increased, and you effectively move forward into a more efficient position for putting down the power and clearing technical climbs. Additionally, the bike becomes more agile, more nimble and more efficient, all without sacrificing traction or sensitivity. It is perfect for smoother, less technical terrain where you have to pump the bike to gain speed or rough, technical climbs where traction and comfort need to be maximized. Simultaneously, compression damping is increased in the fork in an effort to keep the bike well balanced.

Lockout Mode

The lockout mode is the firmest of all three modes. It is perfect for smooth road or fireroad transitions, or simply riding to the trailhead. The lockout still features a big hit blow off in the event that you hit a rough section, preventing damage to the fork and shock.
