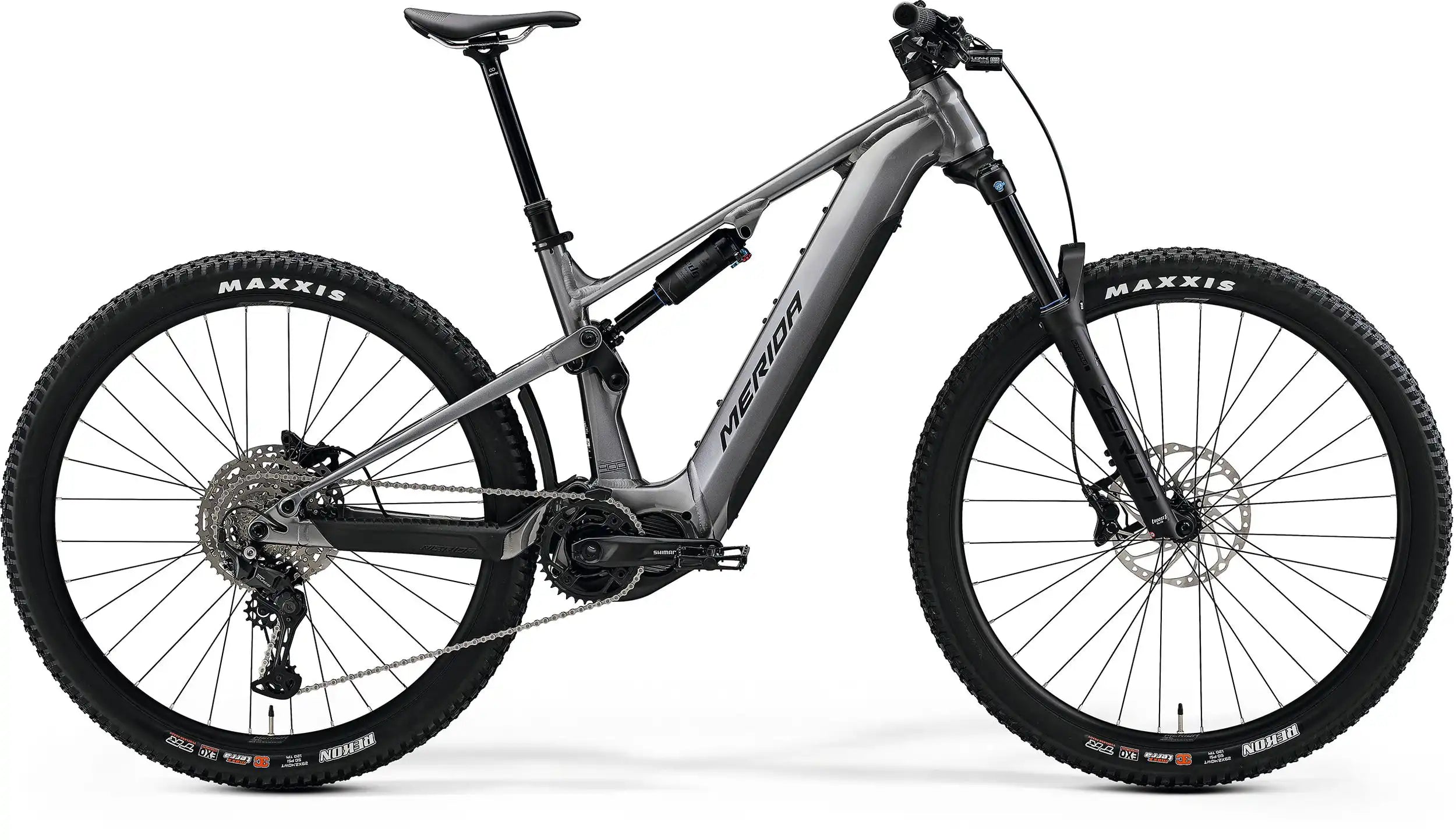

2025 Merida eOne Forty 400
Tough enough for the mountains, versatile enough for the urban jungle. Are you looking for a performance eMTB that delivers on the trail but also offers versatility for less 'extreme' tasks such as commuting, shopping and general transport? The new eONE-FORTY delivers just that - everyday usability and finely tuned off-road capability. The ability to easily fit mudguards, racks, kickstands and lights, which come as standard on our fully-equipped EQ models, underlines the versatility of the new eONE-FORTY.
Frame: eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube
Shock: SR Suntour Edge Plus; platform
Fork: SF25-ZERON36X-BOOST
Brake - Front: Shimano MT420; 4 piston
Brake - Rear: Shimano MT420; 4 piston
Rotor - Front: Shimano RT64; 203 mm
Rotor - Rear: Shimano RTEM600; 203 mm
Chain: Shimano LG500
Chainwheel: FSA 1x Steel Chainring; 36 ATC
Crank/Size: Shimano FC-EM600; 165 mm for all sizes
Bb Set: included
Dera - Rear: Shimano CUES U6000 ; GS
Freewheel: Shimano LG400; 11-48 ATC; 10 GER
Pedal: VP VPE-533
Grip: MERIDA EXPERT EC
H-Bar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
H-B Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem/Size: 40 mm all sizes
Head Set: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Hub - Front: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rim: MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT
Shifter - Front: Shimano SL -MT500-IL
Shifter - Rear: Shimano CUES U6000-10
Inner Tube: 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
Tyre - Front: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra
Tyre - Rear: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra
Fender: EOF-204
Light - Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light - Rear: USB REAR Light CG-214RG
Drive Unit: Shimano EP801; 85Nm
Drive Cover: CR-010 + CR011
Battery: Shimano EN806; 630Wh Shimano; NO Range Extender compatibility
Battery Charger: Shimano EC-E6002; 2A charging current
Battery Lock: Abus key
Display: Shimano SC-EN600
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
