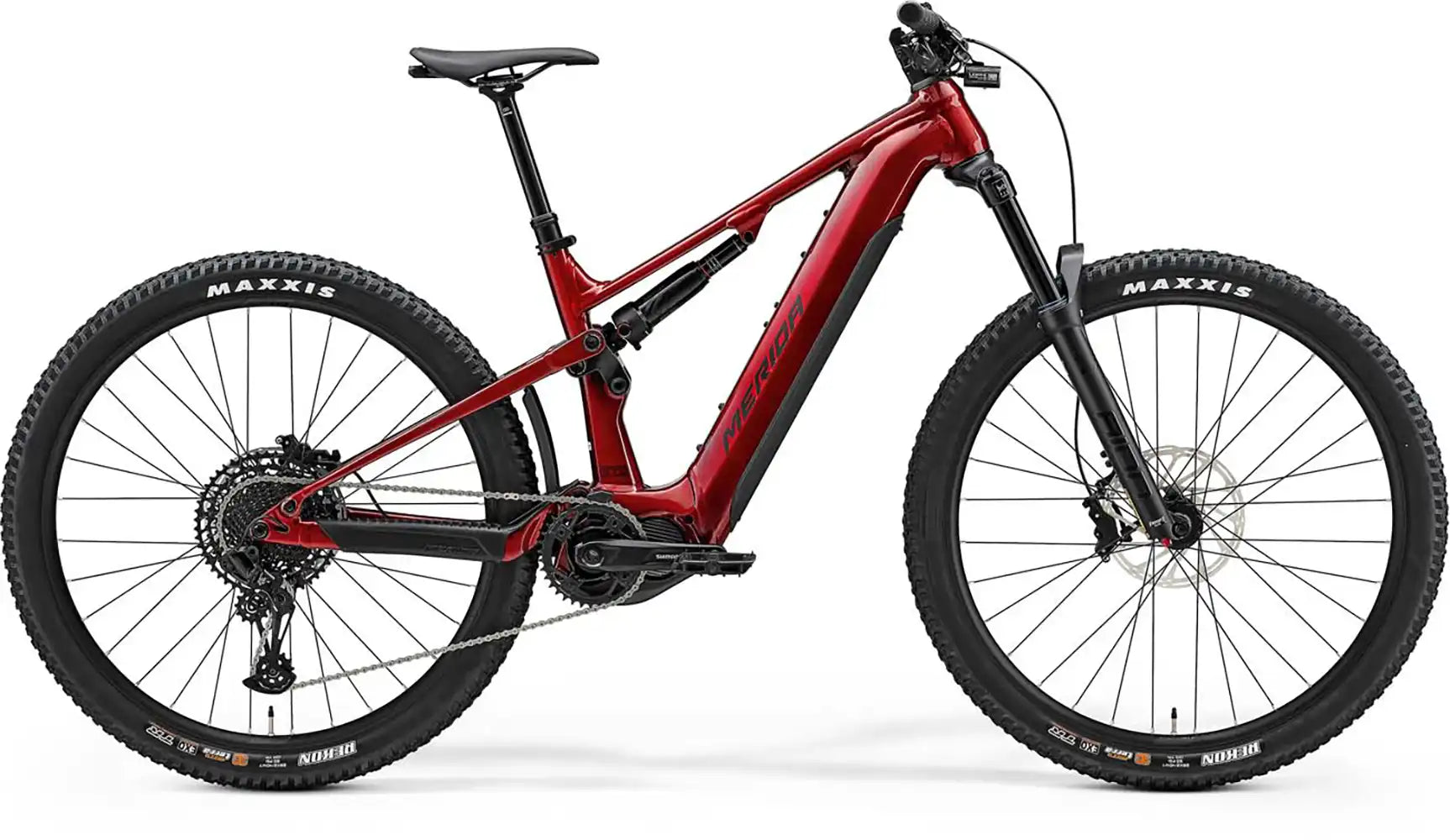

2025 Merida eOne Forty 675
Tough enough for the mountains, versatile enough for the urban jungle. Are you looking for a performance eMTB that delivers on the trail but also offers versatility for less 'extreme' tasks such as commuting, shopping and general transport? The new eONE-FORTY delivers just that - everyday usability and finely tuned off-road capability. The ability to easily fit mudguards, racks, kickstands and lights, which come as standard on our fully-equipped EQ models, underlines the versatility of the new eONE-FORTY.
Frame: eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube ; 750 Wh
Shock: Rock Shox Deluxe Select
Fork: SF25-AION36X-BOOST
Brake - Front: Sram DB8 stealth; 4 piston
Brake - Rear: Sram DB8 stealth; 4 piston
Rotor - Front: Sram CenterLine; 200mm
Rotor - Rear: Sram CenterLine; 200mm
Chain: Sram NX Eagle
Chainwheel: Sram XX Eagle Transmission E-MTB for Steps; 36 ATC
Crank/Size: Shimano FC-EM600; 165 mm for all sizes
Bb Set: included
Dera - Rear: Sram NX Eagle
Freewheel: Sram CS PG1230 EAGLE 11-50T
Pedal: VP VPE-533
Grip: MERIDA EXPERT EC
H-Bar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
H-B Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem/Size: 40 mm all sizes
Head Set: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Hub - Front: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt
Hub - Rear: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rim: MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT
Shifter - Front: Limotech RM10 (For SRAM MMX)
Shifter - Rear: Sram NX Eagle Single Click
Inner Tube: 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
Tyre - Front: MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra
Tyre - Rear: MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra
Fender: EOF-204
Light - Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light - Rear: USB REAR Light CG-214RG
Drive Unit: Shimano EP801; 85Nm
Drive Cover: CR-010 + CR011
Battery: Trendpower Internal Battery Gen 2; 750Wh
Battery Charger: Trendpower EU Smart Charger; 4A
Battery Lock: Abus key
Display: Shimano SC-EN600
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
