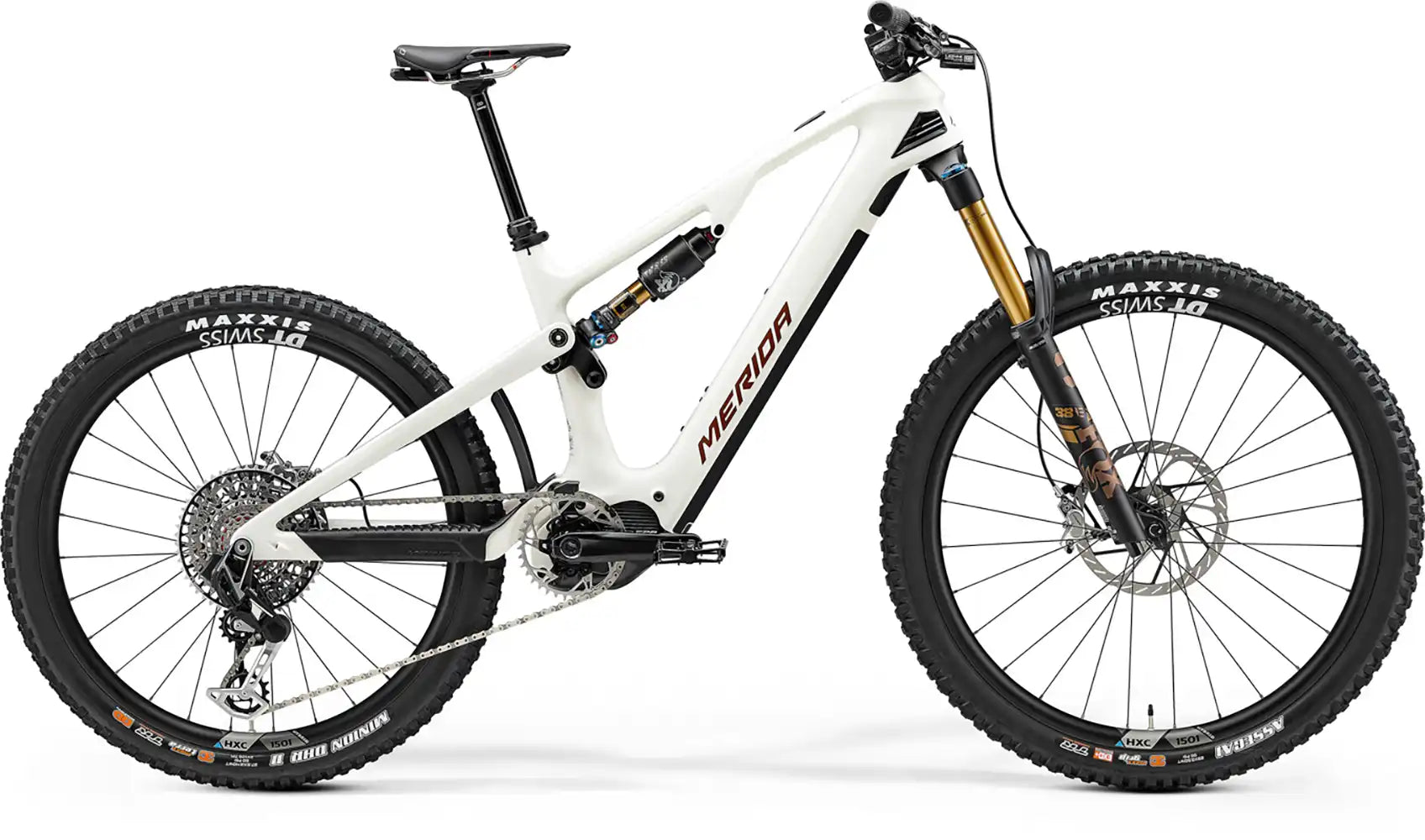

2025 Merida eOne Sixty 10K
Our new eONE-SIXTY delivers no-compromise e-enduro performance. Whether you are looking for a full power e-bike with minimal mass and uncompromising handling, or a big mountain shredder with maximum range, our eONE-SIXTY range has the perfect option for you.
Frame: eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 630 Wh
Shock: Fox Factory Float X2; 2 Pos Lever
Fork: FOX 38 Factory eMTB+; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
Brake - Front: Sram Code Ultimate Stealth; 4 piston
Brake - Rear: Sram Code Ultimate Stealth; 4 piston
Rotor - Front: Sram HS2; 220mm
Rotor - Rear: Sram HS2; 200mm
Chain: Sram XX Eagle Transmission; Flattop
Chainwheel: Sram XX Eagle Transmission E-MTB for Steps; 36 ATC
Crank/Size: Shimano FC-EM900; 165 mm all sizes;
Dera - Rear: Sram XX Eagle Transmission AXS
Freewheel: Sram XX Eagle Transmission ; 10-52; 12 GER
Pedal: VP VPE-527
Grip: MERIDA EXPERT EC
H-Bar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
H-B Stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
Stem/Size: 40 mm all sizes
Head Set: Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Axle - Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rim: DT Swiss HXC 1501; 110x15 WHF; 148x12 WHR; 30 IWR; 6-Bolt; SRAM XD; MAT carbon; Tubeless ready (tubeless tape and valves included)
Saddle: PROXIM Nembo Triox; V-mount adapter; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
Shifter - Front: Limotech RM10 (For SRAM MMX)
Shifter - Rear: Sram AXS Pod Controller
Inner Tube: 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
Tyre - Front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre - Rear: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
Fender: EOF-204
Light - Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light - Rear: LEZYNE LED FEMTO USB REAR STVZO
Drive Unit: Shimano EP801; 85Nm
Drive Cover: CR-026 + CR-027
Battery: Trendpower TPS-C15-58SD; 600Wh integrated
Battery Charger: Trendpower EU Smart Charger; 4A
Display: Shimano SC-EM800
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
