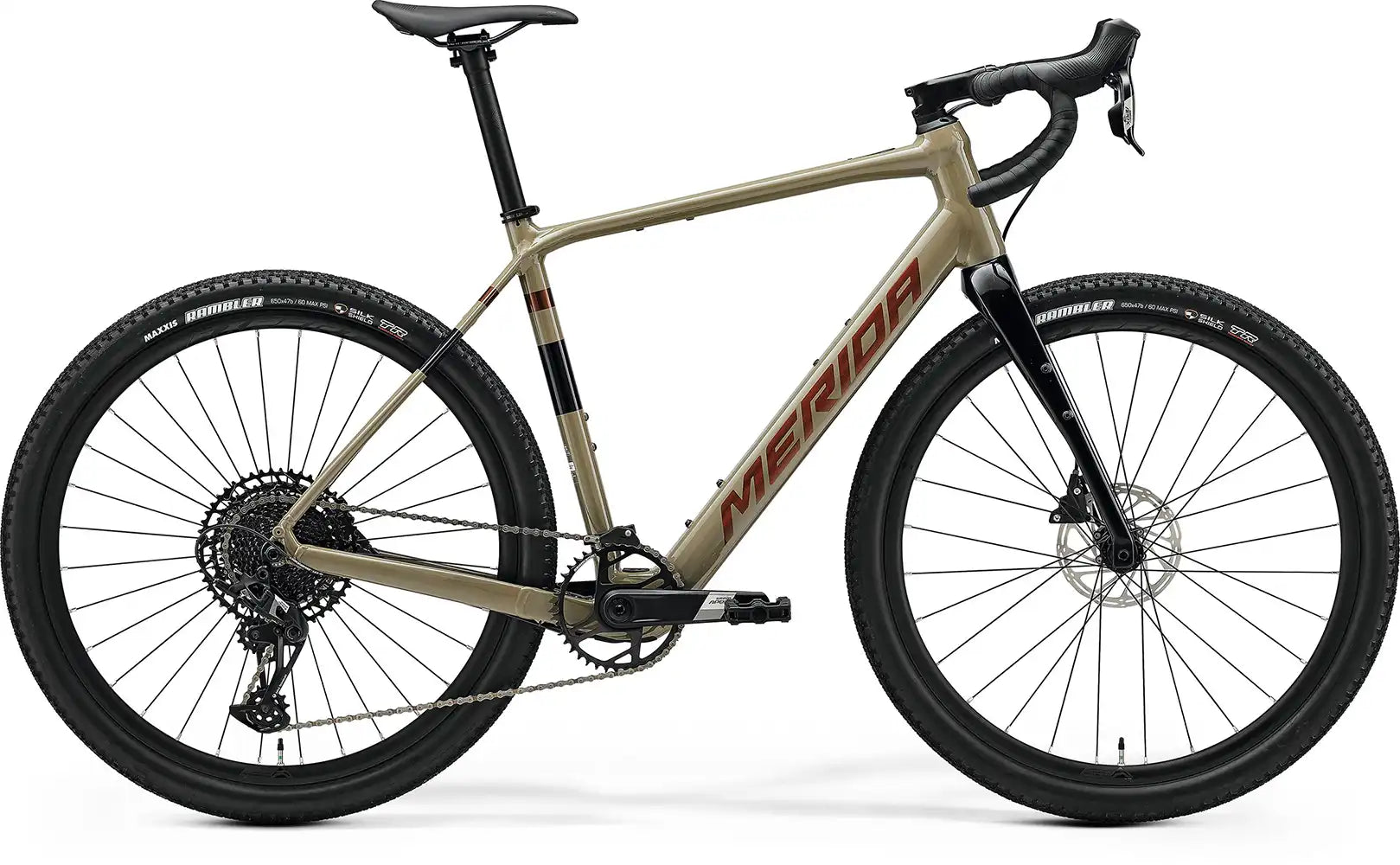

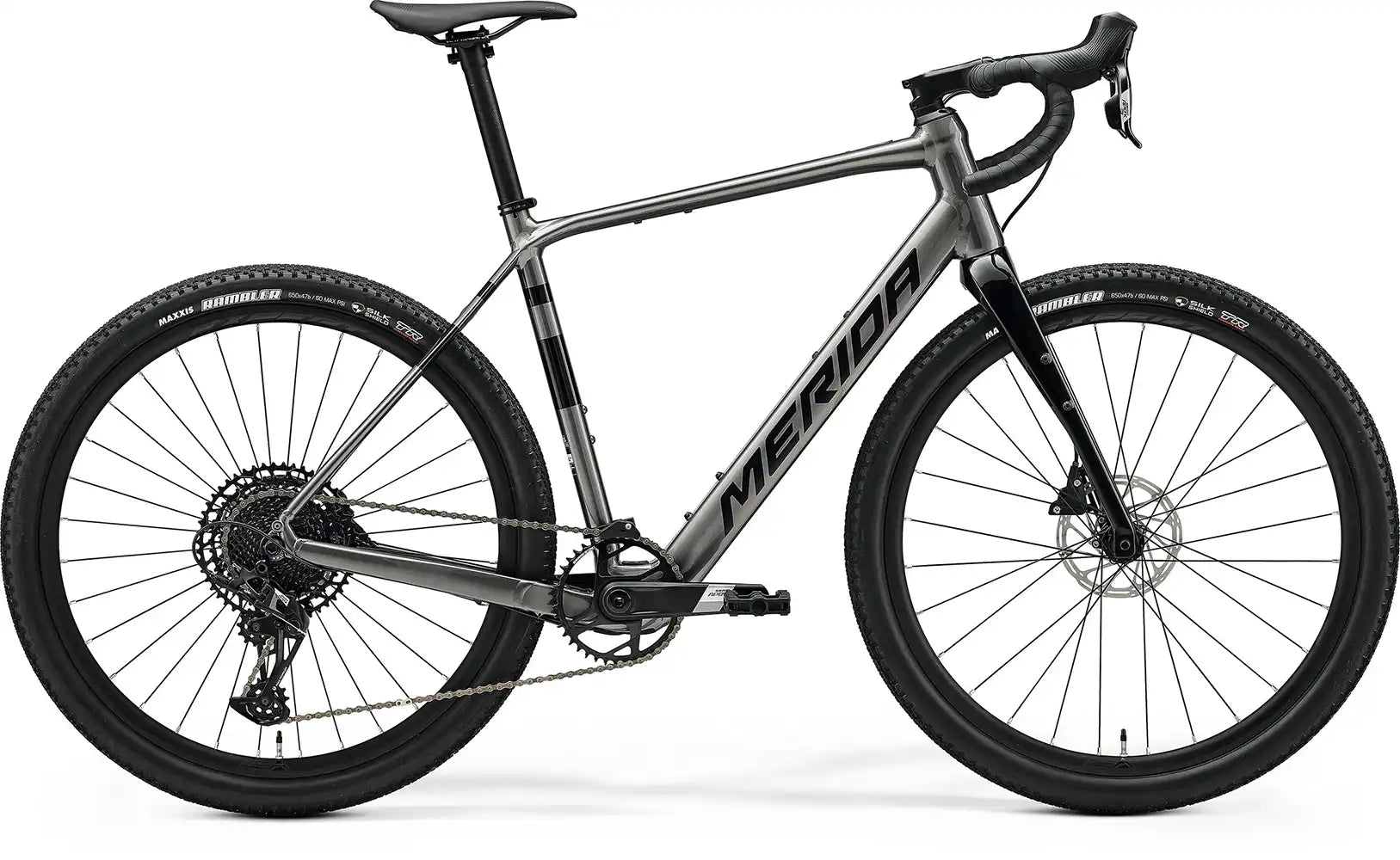

2025 Merida eSilex+ 600
Explore the path less travelled, follow the trail wherever it might take you. With hub motor assistance and battery hidden within a svelte frame, this is a bike to expand your horizons.
Frame: eSPEEDER LITE III; MAT aluminium; 700x45C / 700x42C (with fender) / 27,5x47C max. WHS; 100x9/135x9 AST; BSA BBR
Fork: MERIDA SILEX CF2; carbon; max. 700x42C / 700x35C (with fender) / max. 50x650B WHS
Brake - Front: Sram Apex
Brake - Rear: Sram Apex
Rotor - Front: Sram Centerline; 160mm
Rotor - Rear: Sram Centerline; 160mm
Chain: Sram SX Eagle
Chainwheel: Sram Apex 1 Wide Crankset; 40 ATC
Crank/Size: 170 mm-XS/S/SM/ML, 175 mm-L/XL
Bb Set: Sram DUB BSA 68 Road Wide
Dera - Rear: Sram Apex Eagle
Freewheel: Sram PG-1210 Eagle; 11-50 ATC; 12 GER
Pedal: VP VPE-891
Grip: MERIDA ROAD EXPERT
H-Bar: MERIDA EXPERT GRII; MAT aluminium; 400mm (XS-S) , 420mm (M) , 440mm (L/XL)
H-B Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD
Stem/Size: 80 mm all sizes
Head Set: MERIDA 8158
Hub - Front: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock
Axle - Front: MERIDA EXPERT SL
Rim: MERIDA EXPERT CX; 19 IWR; 24 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT CC; MAT carbon; 30.9 DSP; 0 SSB
Inner Tube: Lite
Tyre - Front: Maxxis Rambler; 650Bx47; ShieldWall / TLR
Tyre - Rear: Maxxis Rambler; 650Bx47; ShieldWall / TLR
Bottle Cage: BOTTLE CAGE ADAPTER, BK-003
Light - Front: CG-119PG-BLACK(1)
Light - Rear: CG-404RG-BLK
Drive Unit: Mahle X30 Drive Unit
Battery: Mahle ix250Wh Battery Pack; 250Wh
Battery Charger: Mahle X30 Charger
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
