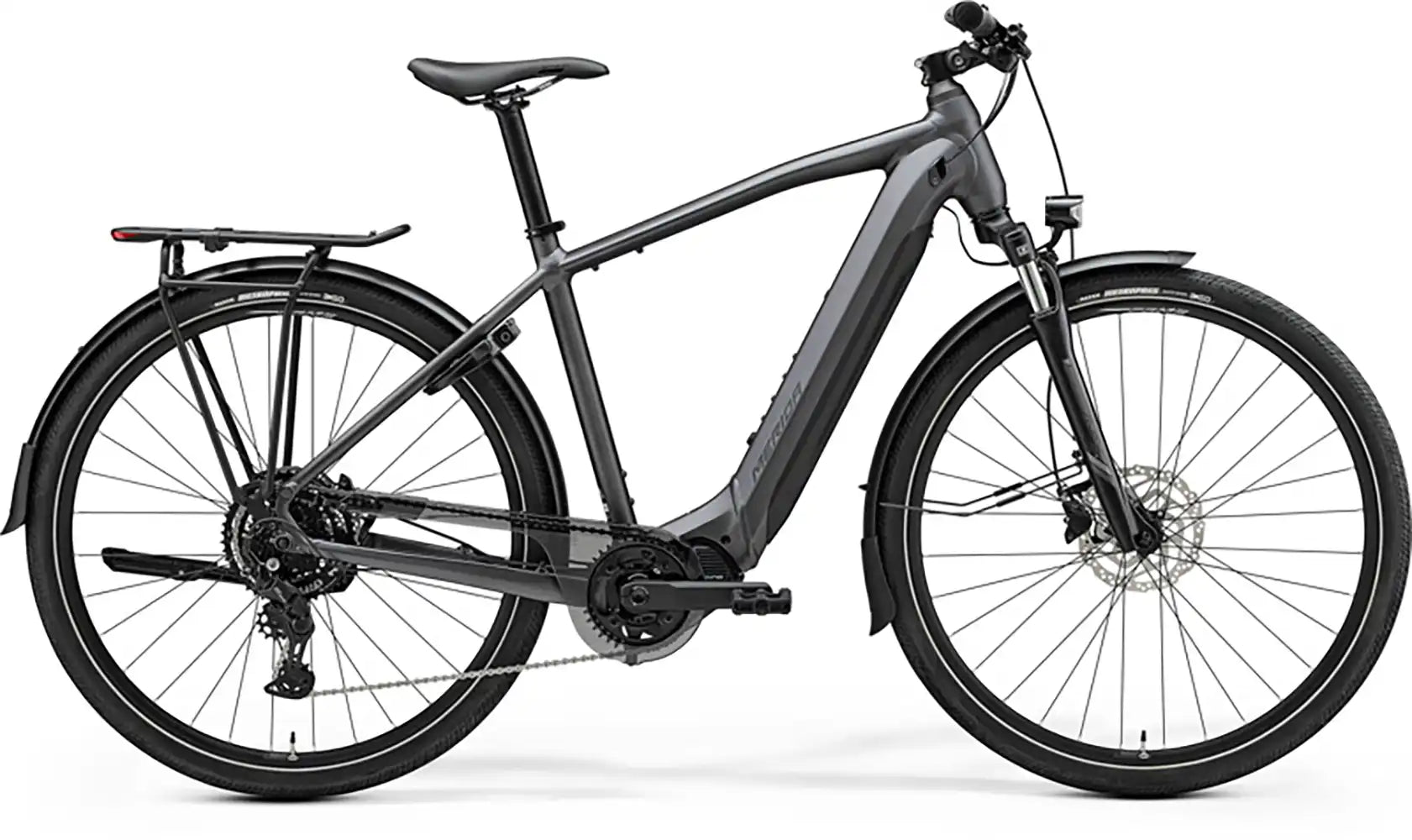

2025 Merida eSpresso 400 EQ
Our entry into the eSPRESSO family, featuring a fully-integrated 504 Wh battery paired with a quality Shimano drive unit and high value, highly functional equipment. Versatile style.
Frame: eSPRESSO LITE IV; MAT aluminium; 700x50C (with fender) max. WHS; 142x12 AST; intube
Fork: Suntour NEX E25; Coil; 63 STR; 700x52C max WHS
Brake - Front: Shimano MT-200; 2 piston
Brake - Rear: Shimano MT-200; 2 piston
Rotor - Front: Shimano RT10; 180 mm
Rotor - Rear: Shimano RT10; 180 mm
Chain: Shimano LG500
Chainwheel: Samox NWP203 ; 38 ATC
Crank/Size: MERIDA EXPERT TK; 165mm
Dera - Rear: Shimano CUES U4000
Freewheel: Shimano LG300; 11-46 ATC; 9 GER
Pedal: VP VPE-891
Grip: MERIDA EXPERT TK
H-Bar: MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB
H-B Stem: MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
Stem/Size: 90 mm-XS/S/M, 110 mm-L/XL
Head Set: MERIDA-8156
Hub - Front: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano TC500-HM; 142x12 WHR; 32 SPH; Centerlock
Axle - Rear: MERIDA COMP TR; including removeable lever, 6mm allen key
Rim: MERIDA COMP TK; 20 IWR; MAT aluminium
Saddle: MERIDA EXPERT TK II; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
Shifter - Rear: Shimano CUES U4000
Inner Tube: 700*32/50
Tyre - Front: ETB00449900 M2028eP
Tyre - Rear: ETB00449900 M2028eP
Bottle Cage: BOTTLE CAGE ADAPTER, BK-003
Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Fender: Sunnywheel SW-FA311-60E1 (MSB)
Kickstand: Massload CL-KA98
Light - Front: Herrmans H-Black MR4 E
Light - Rear: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Frame Lock: Abus 4650 SL
Drive Unit: Shimano EP6; 85Nm
Drive Cover: SM-DC-EP801
Battery: Shimano EN805-L; 504Wh
Battery Charger: Shimano EC-E6002; 2A charging current
Battery Lock: Abus Key
Display: Shimano SC-EN500
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
