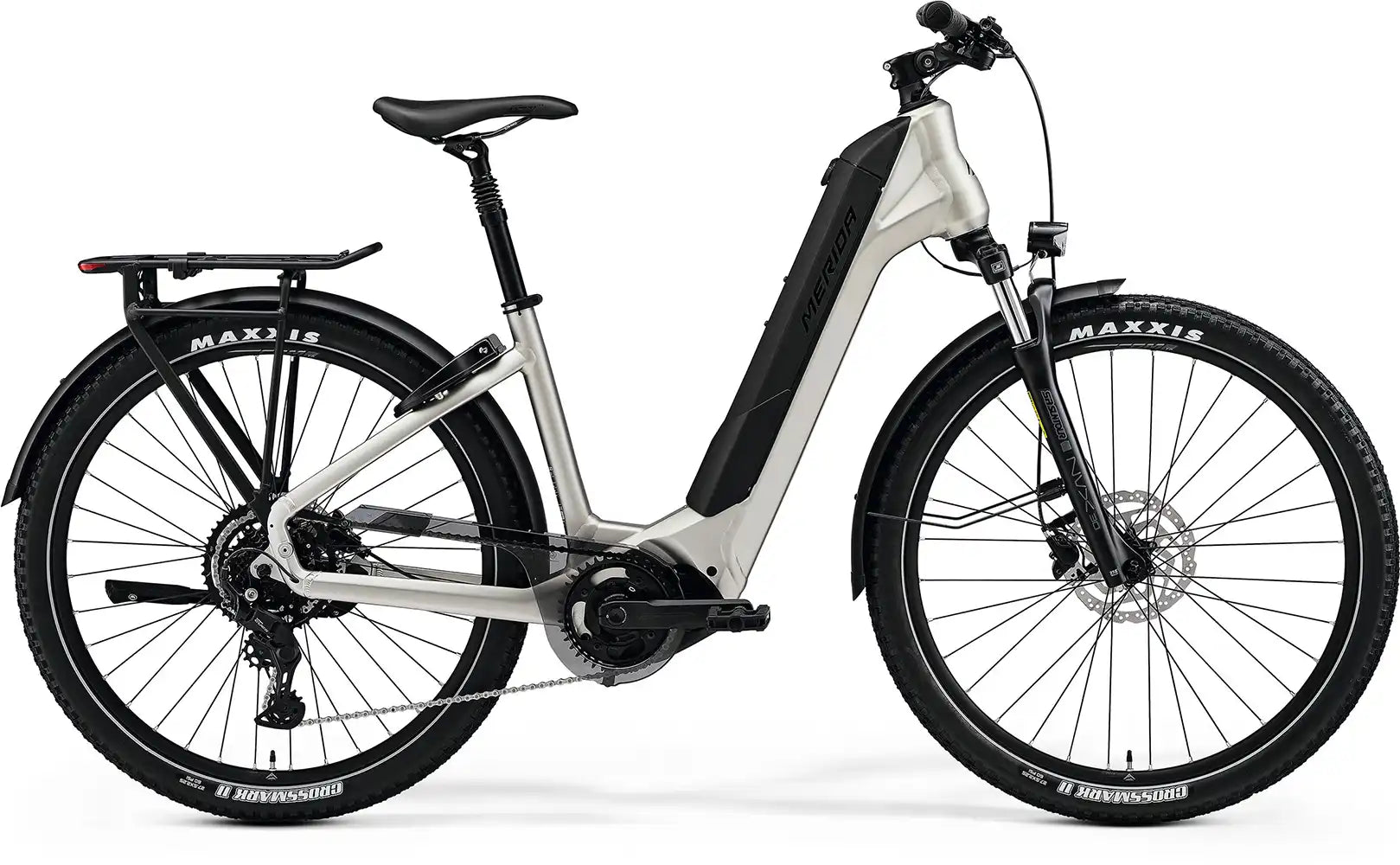

2025 Merida eSpresso CC 400 EQ
Everyday practicality with the ability to head off the beaten track. A strong Shimano drive unit with 504 Wh internal battery in our low step-through frame, plus city-ready kit and rugged rubber.
Frame: eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal
Fork: Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS
Brake - Front: Shimano MT-200; 2 piston
Brake - Rear: Shimano MT-200; 2 piston
Rotor - Front: Shimano RT10; 180 mm
Rotor - Rear: Shimano RTEM300M; 180 mm
Chain: Shimano LG500
Chainwheel: Samox NWP203 ; 38 ATC
Crank/Size: MERIDA EXPERT TK; 165mm
Dera - Rear: Shimano CUES U4000
Freewheel: Shimano LG300; 11-46 ATC; 9 GER
Pedal: VP VPE-891
Grip: MERIDA EXPERT TK
H-Bar: MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB
H-B Stem: MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
Stem/Size: 90 mm- XS/S/M/L/XL
Head Set: MERIDA-8254
Hub - Front: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock
Hub - Rear: Shimano QC300; 135x9 WHR; 32 SPH; Centerlock
Rim: MERIDA COMP TK; 20 IWR; MAT aluminium
Saddle: MERIDA EXPERT TK II; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: JD-SP79; 30.9 DSP; 15 SSB; 40 SST
Shifter - Rear: Shimano CUES U4000
Inner Tube: 27.5x1.9/2.35 F.V
Tyre - Front: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line
Tyre - Rear: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line
Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Fender: Sunnywheel SW-FA-311-65(MSB)
Kickstand: Atranvelo ED-100-PC
Light - Front: Herrmans H-Black MR4 E
Light - Rear: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Frame Lock: Abus 4650 XL
Drive Unit: Shimano EP6; 85Nm
Drive Cover: Drive Unit Cover for EP801/EP600
Battery: Shimano EN805-L; 504Wh
Battery Charger: Shimano EC-E6002; 2A charging current
Battery Lock: Abus Key
Display: Shimano SC-EN500
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
