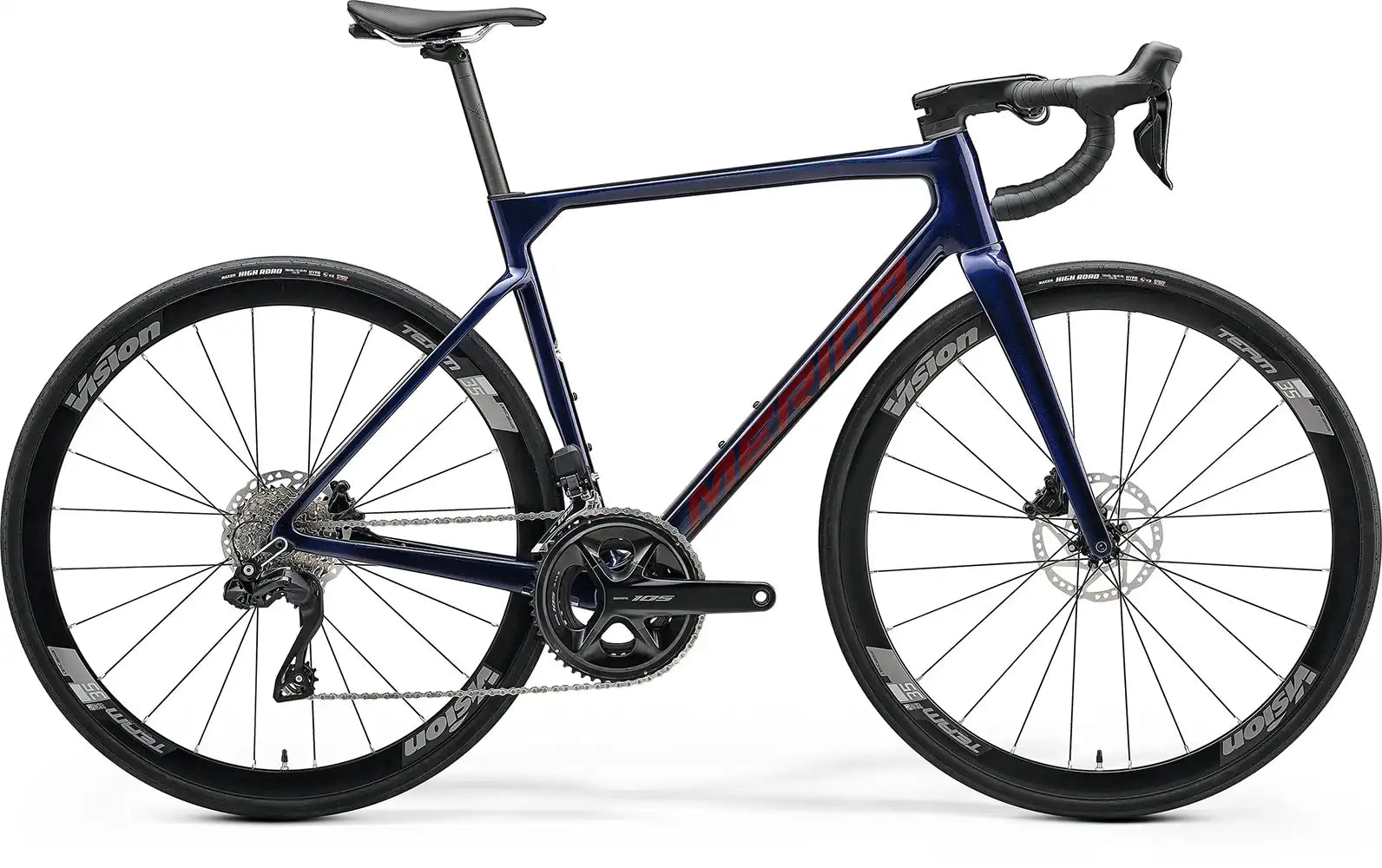

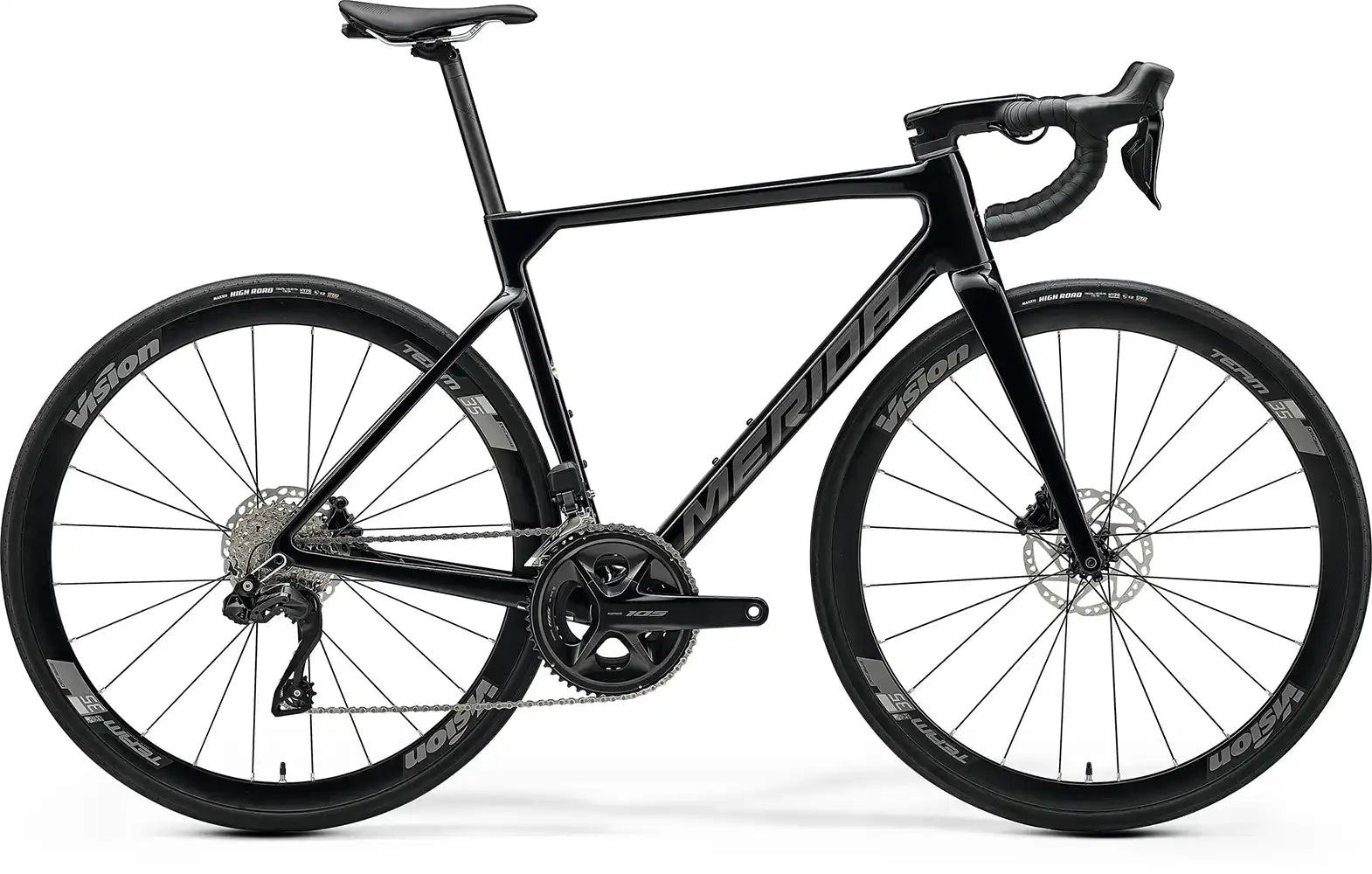

2025 Merida Scultura 5000

Pairing our carbon frame with Shimano's electronic Di2 105 groupset, the SCULTURA 5000 offers incredible bang for your buck. Sharing the same build as the SCULTURA 6000 but with a budget friendly wheelset, it's ripe for upgrades - or just riding straight away.

Frame: SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Fork: SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS
Brake Lever: Shimano 105
Brake - Front: Shimano 105; Hydraulic disc
Brake - Rear: Shimano 105; Hydraulic disc
Rotor - Front: Shimano RT64; 160mm
Rotor - Rear: Shimano RT64; 160mm
Chain: Shimano CN-M6100-12
Chainwheel: Shimano 105; FCR7100, 52-36 ATC
Crank/Size: 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
Bb Set: SM-BB71-41B, Pressfit 86.5
Derailleur - Front: Shimano 105 Di2
Derailleur - Rear: Shimano 105 Di2
Freewheel: Shimano CS-R7101; 11-34 ATC; 12 GER
Grip: MERIDA ROAD Expert
Handlebar: MERIDA EXPERT SLII; MAT aluminium; 380mm(3S-XXS-XS-S) , 400mm (M-L-XL)
H-B Stem: EXPERT SL 2PII; MAT aluminium; -9 ASD
H-Stem/Size: 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
Axle - Front: MERIDA EXPERT TR
Axle - Rear: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Rim: Team 35 Clincher Disc Centerlock; 19 IWR; 35 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Saddle: MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon
Shifter - Front: Shimano 105 disc Di2
Shifter - Rear: Shimano 105 disc Di2
Tyre - Front: Maxxis Highroad; 700x28C; fold;tubeless ready
Tyre - Rear: Maxxis Highroad; 700x28C; fold;tubeless ready
E-Shift Parts-2: Battery BT-DN300
E-Shift Parts-3: Shimano SW-ED300 x 2
Other 5: MERIDA Multitool with saddlebox
