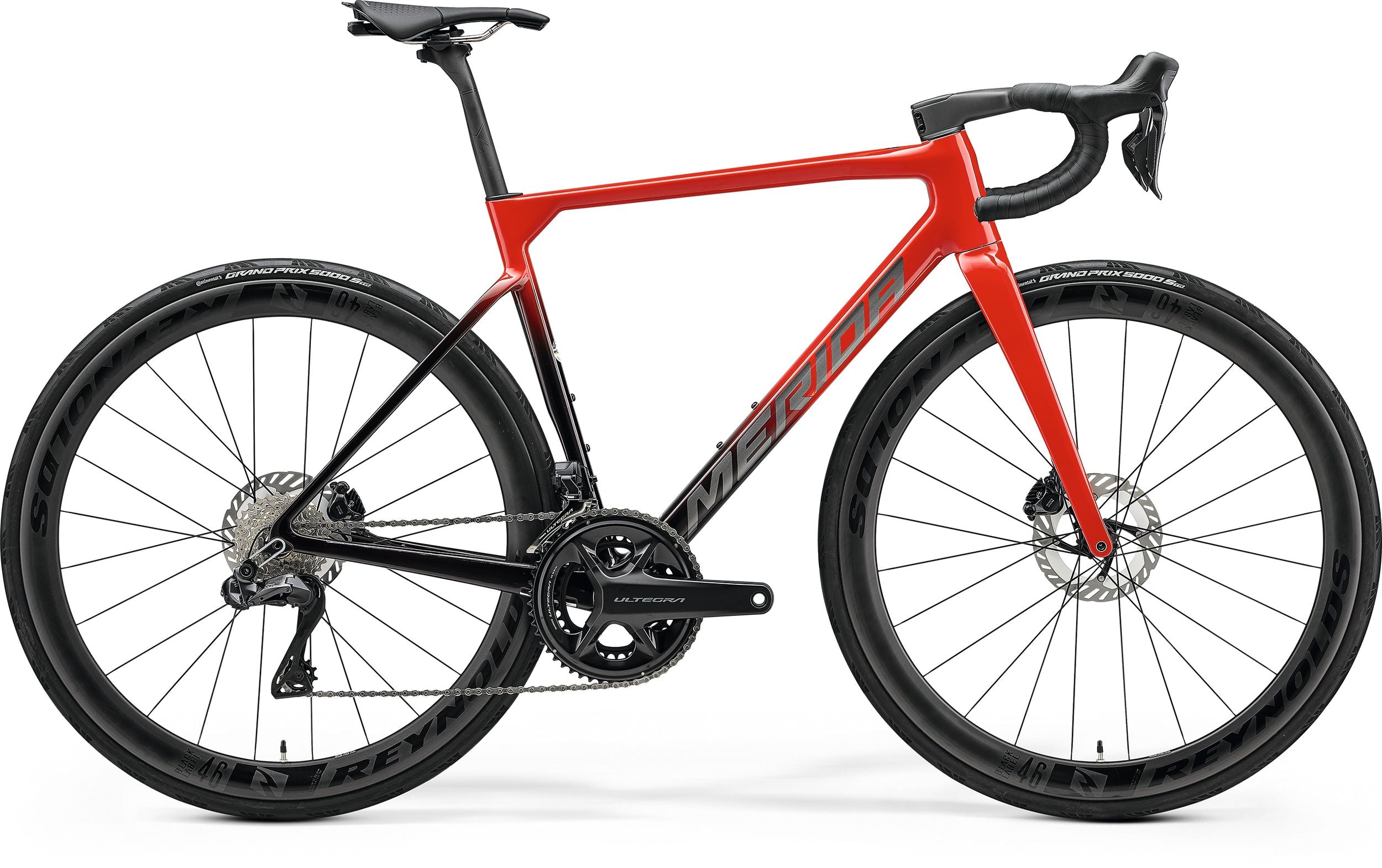

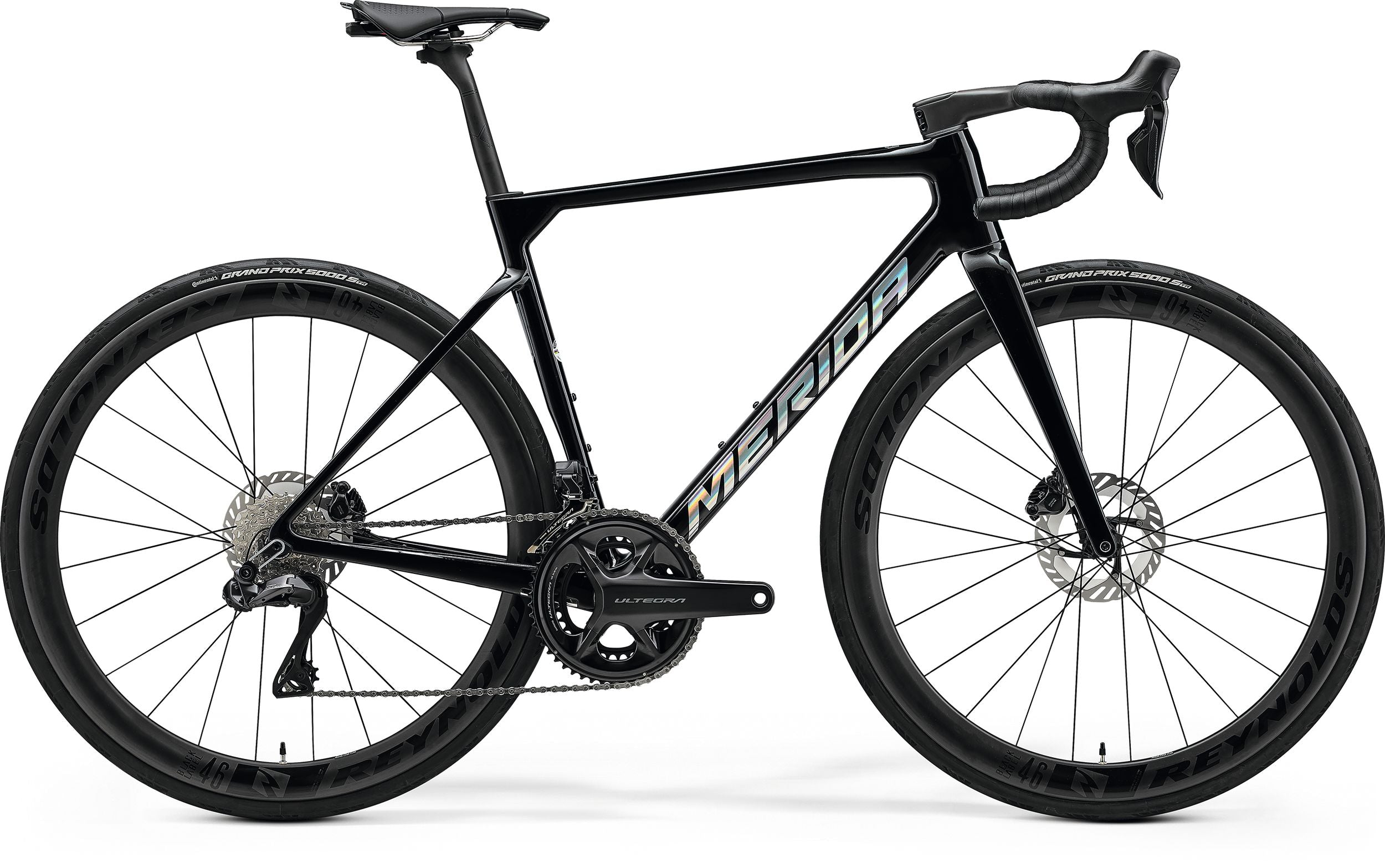

2025 Merida Scultura 9000
Top-level components matched perfectly with our weight-optimised SCULTURA CF5 frame. On top of a super-light frame, this bike has adapted a long list of 'streamlined' features from the REACTO and combined them perfectly with razor-sharp handling and class-leading race compliance.
Frame: SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Fork: SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS
Brake Lever: Shimano Ultegra
Brake - Front: Shimano Ultegra; Hydraulic disc
Brake - Rear: Shimano Ultegra; Hydraulic disc
Rotor - Front: Shimano CL800; 160mm
Rotor - Rear: Shimano CL800; 160mm
Chain: Shimano CN-M8100-12
Chainwheel: Shimano Ultegra; 52-36 ATC
Crank/Size: 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
Bb Set: SM-BB72-41B, Pressfit 86.5
Derailleur - Front: Shimano Ultegra Di2; FD-R8150
Derailleur - Rear: Shimano Ultegra Di2; RD-R8150
Freewheel: Shimano CS-R8101; 11-30 ATC; 12 GER
Grip: MERIDA ROAD Expert
Handlebar: TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL)
H-B Stem: TEAM ONE-PIECE INTEGRATED; MAT carbon
H-Stem/Size: 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
Axle - Front: MERIDA EXPERT SL
Axle - Rear: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Rim: Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 41 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included)
Saddle: SCRATCH M5; V-mount adapter; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex
Shifter - Front: Shimano Ultegra disc Di2
Shifter - Rear: Shimano Ultegra disc Di2
Tyre - Front: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
Tyre - Rear: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
E-Shift Parts-2: Battery BT-DN300
E-Shift Parts-3: Shimano EW-SD300 x 2
Other 5: MERIDA Multitool with saddlebox
