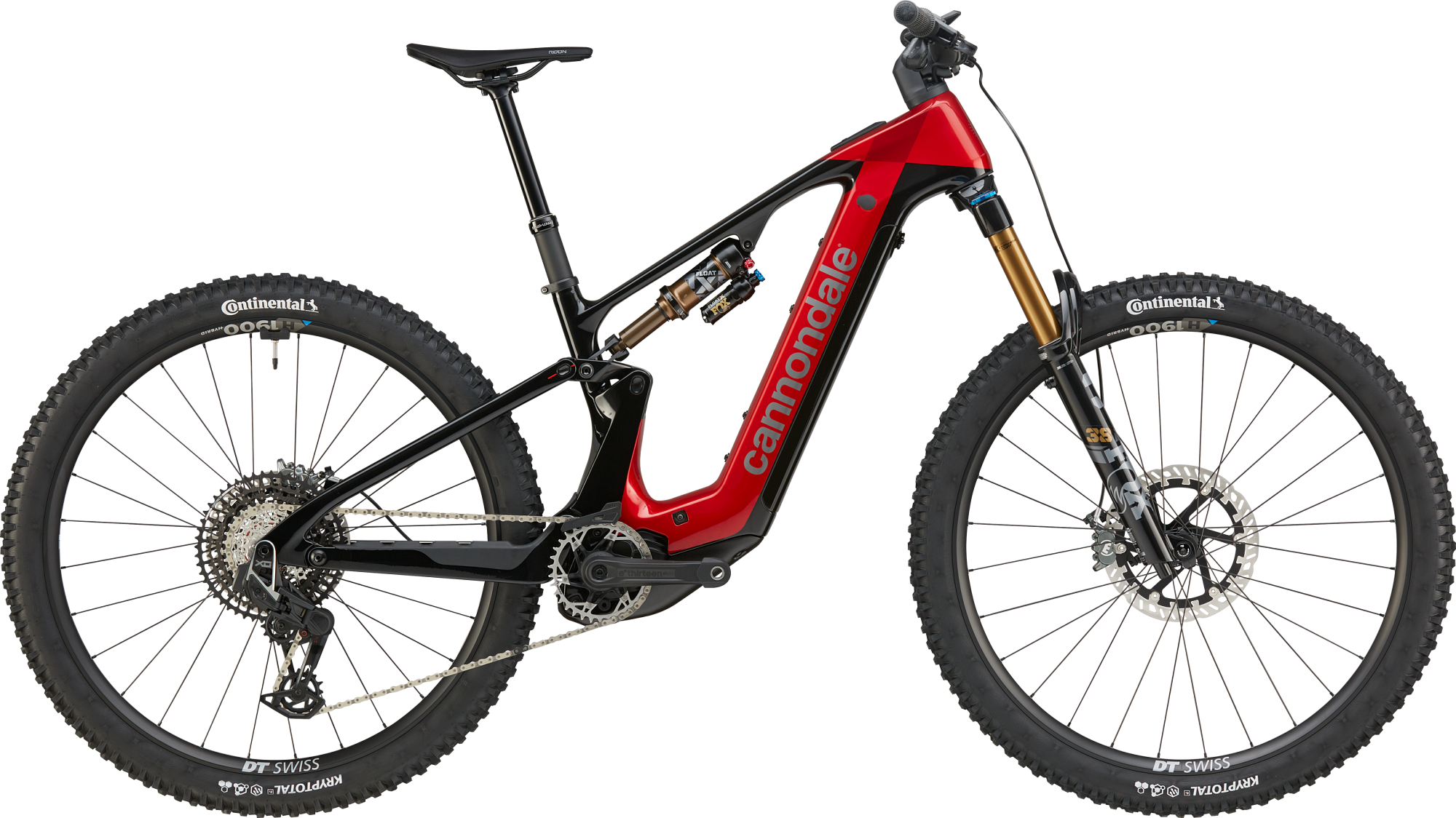

2026 Cannondale Moterra 1
The most capable Moterra ever built. Moterra 1 pairs the full-power Bosch Performance Line CX motor and 800Wh PowerTube battery with a race-bred SRAM X0 Eagle AXS T-Type drivetrain and Fox Factory suspension, so you can push further and ride harder without holding back.
Frame: Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension
Fork: Fox Float Factory 38, 160mm travel, GRIP X2 damper, Kashima coating, 15x110mm Kabolt thru-axle
Rear Shock: Fox Float X Factory, Kashima coating, 2-position adjust, EVOL LV air can, 230x62.5mm
Headset: Acros ICR, 1.5" to 1.8" tapered, sealed bearings
Motor: Bosch Performance Line CX
Battery: Bosch PowerTube, 800Wh, removable
Display/Remote: Top Tube System Controller w/ Bosch Kiox 500 display & Mini Remote
Shifters: SRAM Eagle AXS T-Type Pod Controller
Rear Derailleur: SRAM X0 Eagle AXS, T-Type
Crank: e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Cassette: SRAM GX Eagle T-Type, 10-52, 12-speed
Chain: SRAM GX T-Type, 12-speed
Brakes: Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
Rims: DT Swiss H 1900 Spline, 30mm inner width, tubeless ready
Hubs: (F) DT Swiss 370, 15x110mm / (R) DT Swiss 370 LN Ratchet, 12x148mm
Spokes: DT Swiss Competition, straight pull
Tyres: Continental Kryptotal Front/Rear, 29x2.4", Enduro Soft compound, foldable
Handlebar: HollowGram SAVE Riser, Carbon, 35mm clamp, 30mm rise, 780mm
Stem: Cannondale Trail HeadsUp w/ integrated display mount, 45mm
Grips: Cannondale TaperRidge
Seatpost: Cannondale DownLow Dropper, internal routing, 34.9mm, 150/170/200/230mm
Saddle: Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
