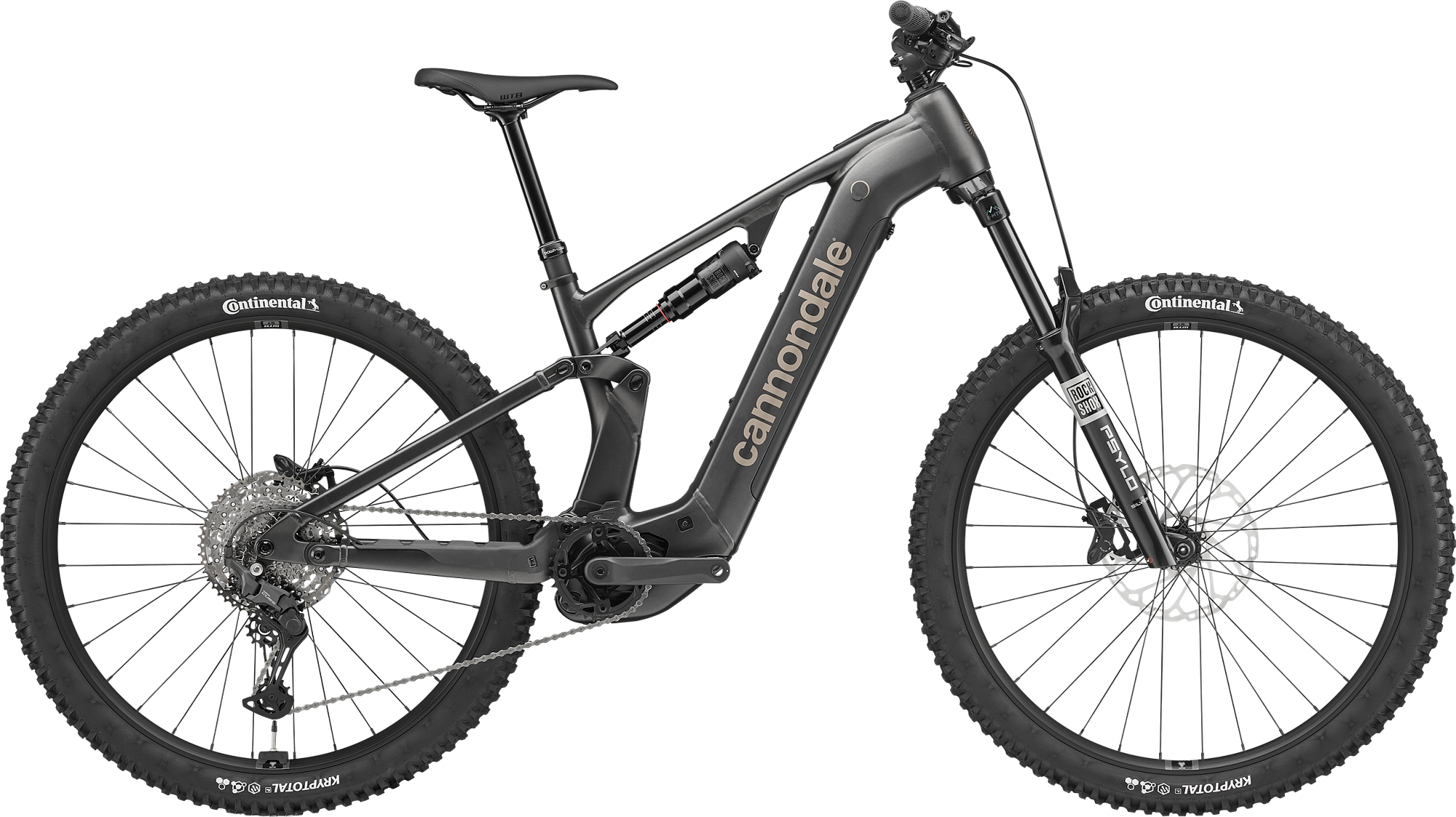

2026 Cannondale Moterra 3
The 2026 Cannondale Moterra 3 pairs Bosch's punchy Performance Line CX motor and a huge 800Wh PowerTube battery with 150mm of Cannondale Tuned rear travel and a burly 160mm RockShox fork, giving you the power and squish to charge up the climbs and hang on through the gnar. A dependable Shimano CUES 11-speed LinkGlide drivetrain and 4-piston Shimano brakes round out a trail-ready build that just works, ride after ride.
Frame: SmartForm C1 Alloy, 150mm travel, Cannondale Tuned Suspension
Fork: RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir
Rear Shock: RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
Headset: Acros ICR, 1.5" to 1.8", sealed bearings
Motor: Bosch Performance Line CX, up to 120Nm torque
Battery: Bosch PowerTube, 800Wh
Display: Bosch Purion 200
Shifters: Shimano CUES U6000, 11-speed, LinkGlide
Rear Derailleur: Shimano CUES U6000, LinkGlide
Crank: FSA Bosch E-bike, 160mm, 34T, 55mm chainline
Cassette: Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Chain: Shimano LG500, LinkGlide, 11-speed
Brakes: Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
Rims: WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
Hubs: Shimano TC500 (front) / TC600 (rear), thru-axle
Spokes: DT Swiss Champion 2.0
Tyres: Continental Kryptotal-F/R, 29 x 2.4", Enduro Soft, foldable
Handlebar: Cannondale 3 riser, 6061 Alloy, 25mm rise, 800mm
Stem: Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Grips: Cannondale TaperRidge
Seatpost: Cannondale DownLow Dropper, internal routing, 34.9, 150-230mm (size-dependent)
Saddle: WTB Silverado Medium
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
