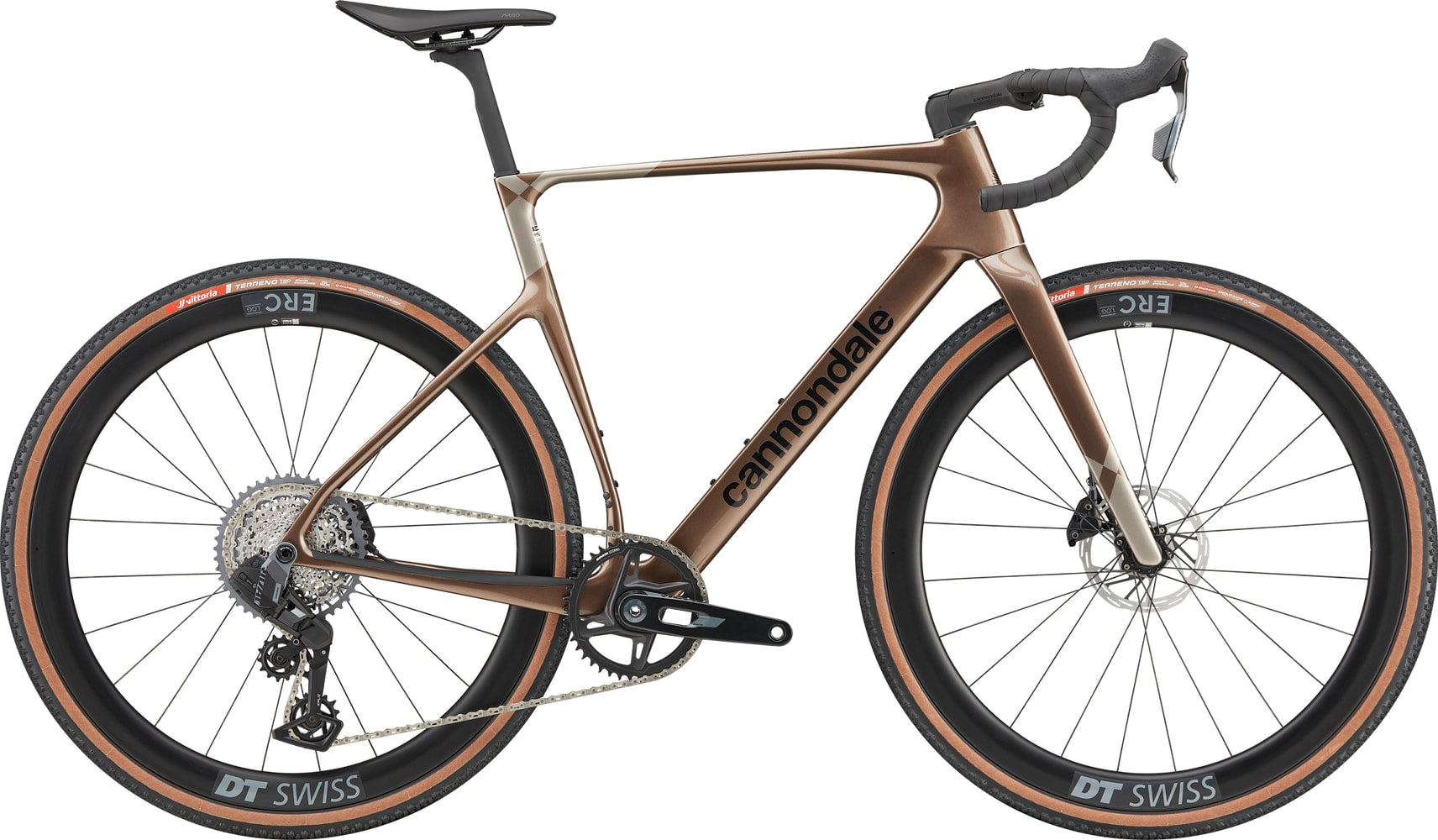

2026 Cannondale SuperX 3

Ready, set, thrash. SuperX 3 channels Cannondale's racing pedigree, turning every stretch of gravel into a proving ground. A pure gravel race machine focused on taking the lead and staying there, it pairs a lightweight SuperX Carbon frame with SRAM's wireless Rival AXS XPLR groupset, DT Swiss carbon wheels and tubeless-ready Vittoria tyres for confident speed over loose, mixed terrain.

Frame: SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork: SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Headset: Integrated, 1-1/8" - 1.5"
Shifters: SRAM Rival AXS
Rear Derailleur: SRAM Rival AXS XPLR
Crank: SRAM Rival XPLR Wide, 42T (165mm - 46cm, 170mm - 51-54cm, 172.5mm - 56-58cm, 175mm - 61cm)
Cassette: SRAM Rival XPLR XG-1351, 10-46T, 13-speed
Chain: SRAM Rival
Bottom Bracket: SRAM DUB BSA Road 68 Wide
Brakes: SRAM Rival hydraulic disc, 160/160mm PaceLine centerlock rotors
Rims: DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Hubs: DT Swiss 370, 12x100mm centerlock (front) / DT Swiss 370 LN Ratchet System, 12x142mm centerlock (rear)
Spokes: DT Swiss Competition
Tyres: Vittoria Terreno T50, 700x40c, tubeless ready
Handlebar: Vision Trimax Aero Alloy, 400mm (46-51cm) / 420mm (54-61cm)
Stem: Cannondale C1 Conceal, Alloy, 31.8mm, -6°, 90mm (46-51cm) / 100mm (54-56cm) / 110mm (58-61cm)
Grips: Cannondale Bar Tape, 3.5mm
Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm) / 15mm offset (51-61cm)
Saddle: Fizik Vento Argo X5, S-Alloy rails, 140mm
