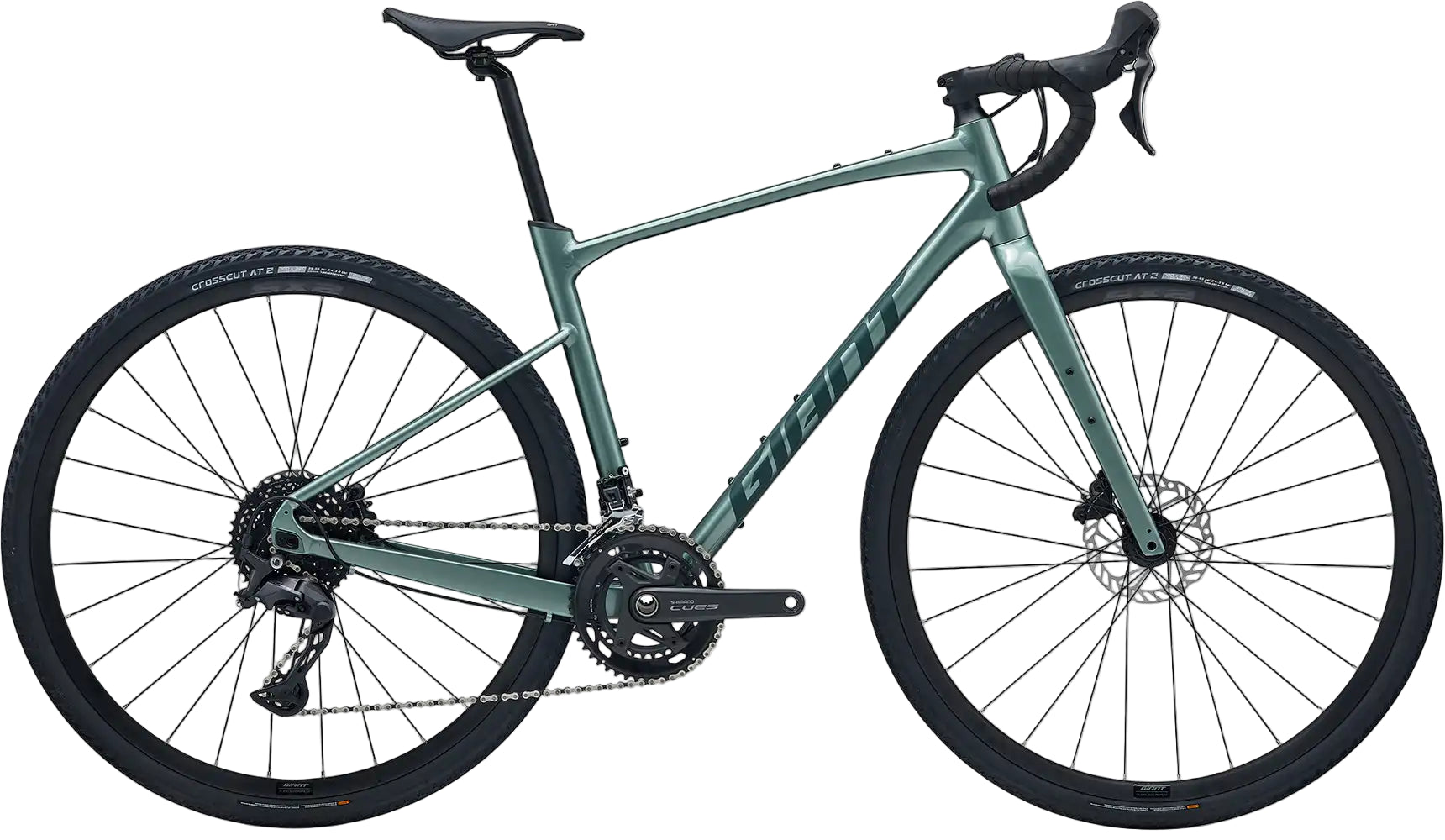

2026 Giant Revolt 1

Ride faster and smoother on roads, gravel and dirt. These gravel bikes feature lightweight frames with endurance geometry and generous tyre clearance. Whether you’re racing a gravel grinder or exploring backcountry roads, we have the perfect gravel endurance bike to ride variable terrain.

Colours: Alpine Green
Sizes: XS, S, M, M/L, L, XL
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR D-Fuse, 31.8mm    XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Cork tape with gel
Stem: Giant Contact, 8-degree    XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit
Pedals: N/A
Shifters: Shimano Cues U6030, 2x10
Front Derailleur: Shimano Cues U6030
Rear Derailleur: Shimano Cues U6020, Shadow+
Brakes: Shimano Cues U6030 hydraulic, Giant MPH rotors    [F]160mm, [R]160mm
Brake Levers: Shimano Cues U6030 hydraulic
Cassette: Shimano LG300, 11-39
Chain: KMC X11
Crankset: Shimano Cues U6030-2, 32-46    XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Shimano, press fit
Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Stainless
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
