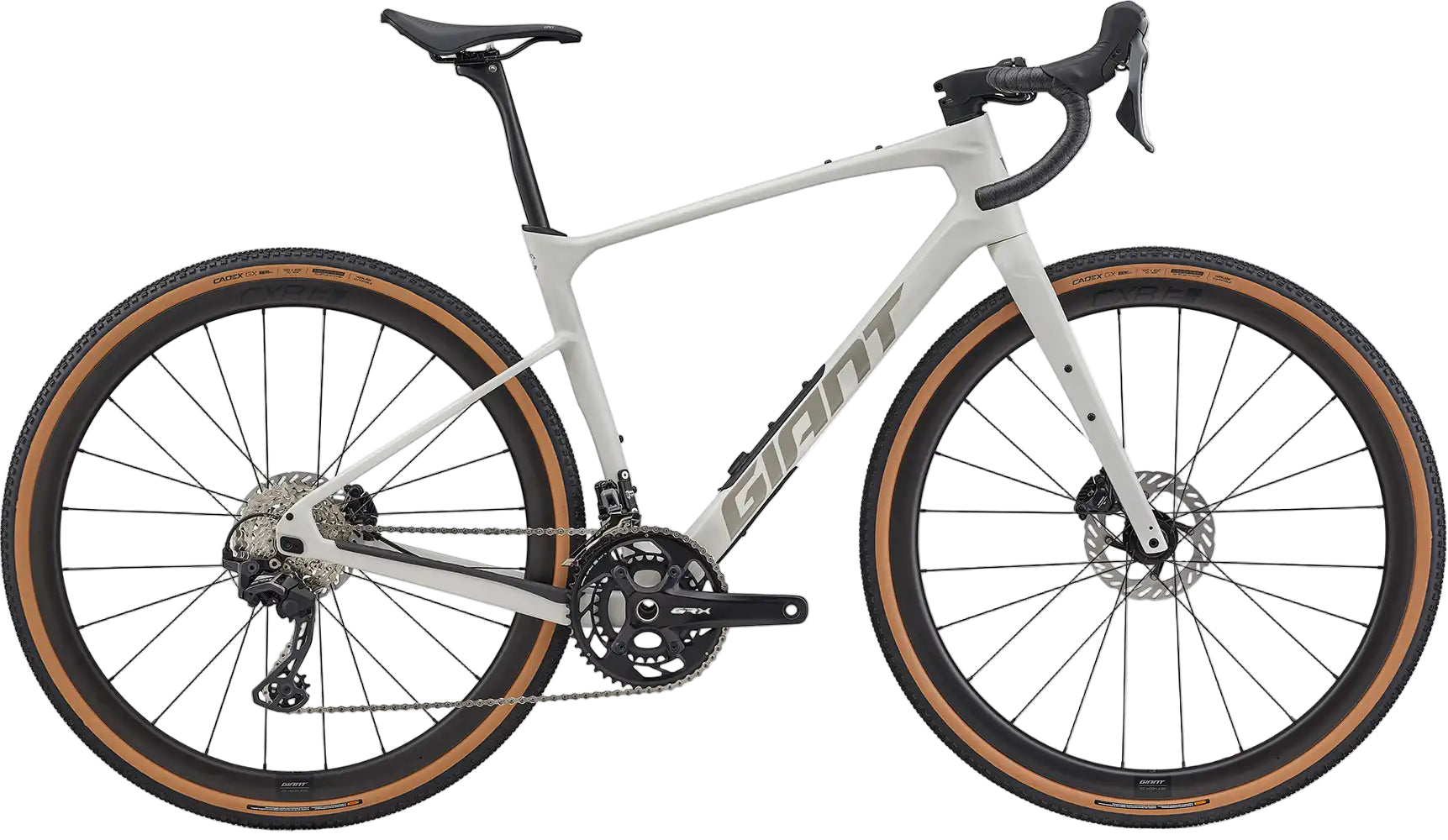

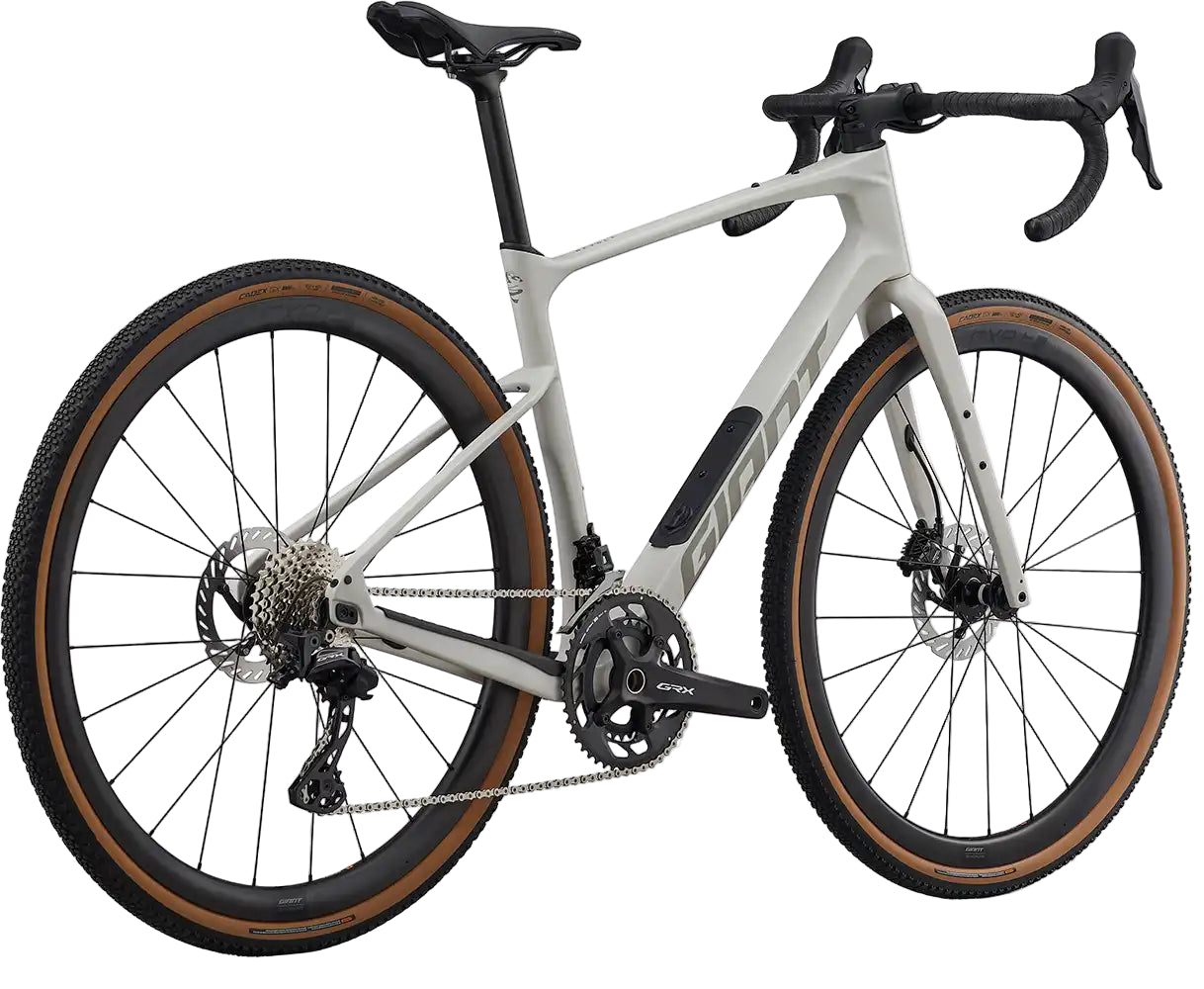

2026 Giant Revolt Advanced 0

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Colour: Snow Drift
Sizes: XS, S, M, M/L, L, XL
Frame: Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc, flip chip dropout, integrated downtube storage
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR D-Fuse, 31.8mm    XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Stratus Lite 3.0
Stem: Giant Contact Aerolight    XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, composite, -5mm/+15mm
Saddle: Giant Grit
Pedals: N/A
Shifters: Shimano GRX RX-820, 2x12
Front Derailleur: Shimano GRX RX-820
Rear Derailleur: Shimano GRX RX-820
Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors    [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-820 hydraulic
Cassette: Shimano CS-HG710, 12-speed, 11x36
Chain: KMC X12L-1
Crankset: Shimano GRX RX-820, 31/48    XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Shimano, press fit
Wheels: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle    [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes: Sapim Sprint
Tyres: CADEX GX, 700x40c, tubeless
Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, In frame storage bag
