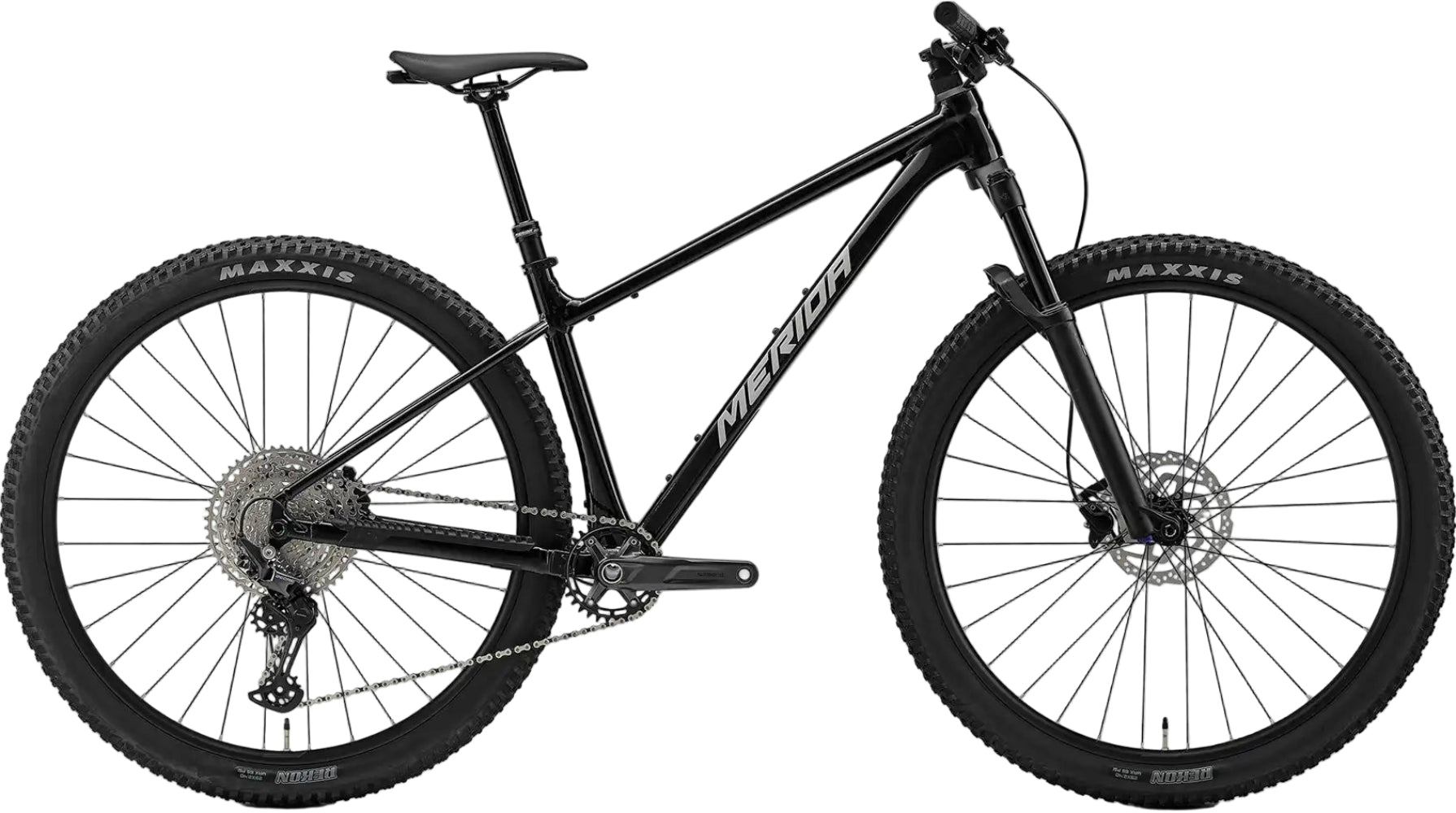

2026 Merida Big Nine TR 700

Serious speed on the climbs with trail bike swagger on the descents. By adding a 120 mm travel fork and dropper seatpost to our 29" wheeled aluminium frame, we've made a bike that's as fast and fun on the uphill as is on the way back down.

Accessories: MERIDA Multitool with saddlebox
Axles: R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Bottom Bracket: Shimano BB-MT-501; 24mm
Brakes: F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston
Cassette: Shimano Deore M6100; 10-51 ATC; 12 GER
Chain: KMC X12
Crankset: Shimano Deore MT512; 32 ATC; 170 mm for all sizes
Derailleur Rear: Shimano Deore M6100; SGS
Fork: Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset
Frame: BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Grip: MERIDA COMP TR
Handlebar: MERIDA EXPERT CC; MAT aluminium; 760 WHB; 10 RHB
Handlebar Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 60mm
Headset: Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Hubs: F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Rotor Front: Shimano RT10; 180mm
Rotor Rear: Shimano RT10; 180mm
Saddle: MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT
Shifters: F: Shimano SL-MT500-IL | R: Shimano Deore M6100
Spokes: Black stainless
Tyres: F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire
