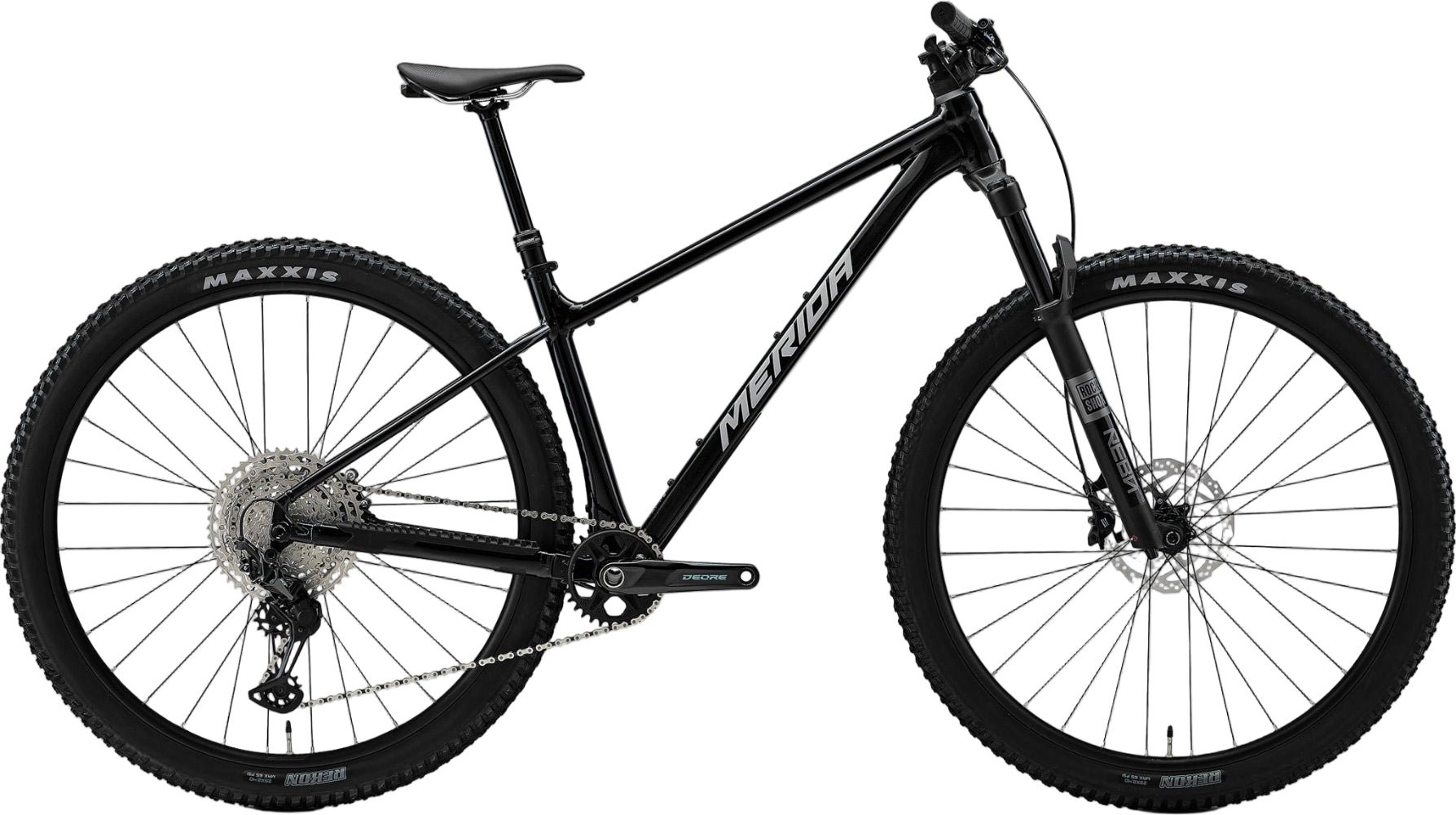

2026 Merida Big Nine TR Limited

Blurring the line between cross-country and trail, we pair a high-value, high-performance aluminium frame with a 120 RockShox mm fork, high-volume 2.4" tyres and a control-enhancing dropper post.

Accessories: MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; Brake Adapter SM-MA-R160D/D; MERIDA Multitool with saddlebox
Axles: R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Bottom Bracket: Shimano BB-MT-501; 24mm
Brakes: F: Shimano SLX M7100; 2 piston | R: Shimano SLX M7110; 2 piston
Cassette: Shimano Deore M6100; 10-51 ATC; 12 GER
Chain: KMC X12
Crankset: Shimano Deore M6100; 32 ATC; 170 mm for all sizes
Derailleur Rear: Shimano XT; SGS
Fork: Rock Shox Reba RL; Air; 120 STR; Tapered; 44 mm fork offset
Frame: BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Grip: MERIDA COMP TR
Handlebar: MERIDA EXPERT CC; MAT aluminium; 760 WHB; 10 RHB
Handlebar Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 60mm
Headset: Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Hubs: F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Rotor Front: Shimano RT10; 180mm
Rotor Rear: Shimano RT10; 180mm
Saddle: MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT
Shifters: F: Shimano SL-MT500-IL | R: Shimano Deore M6100
Spokes: Double Butted Black stainless
Tyres: F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire
