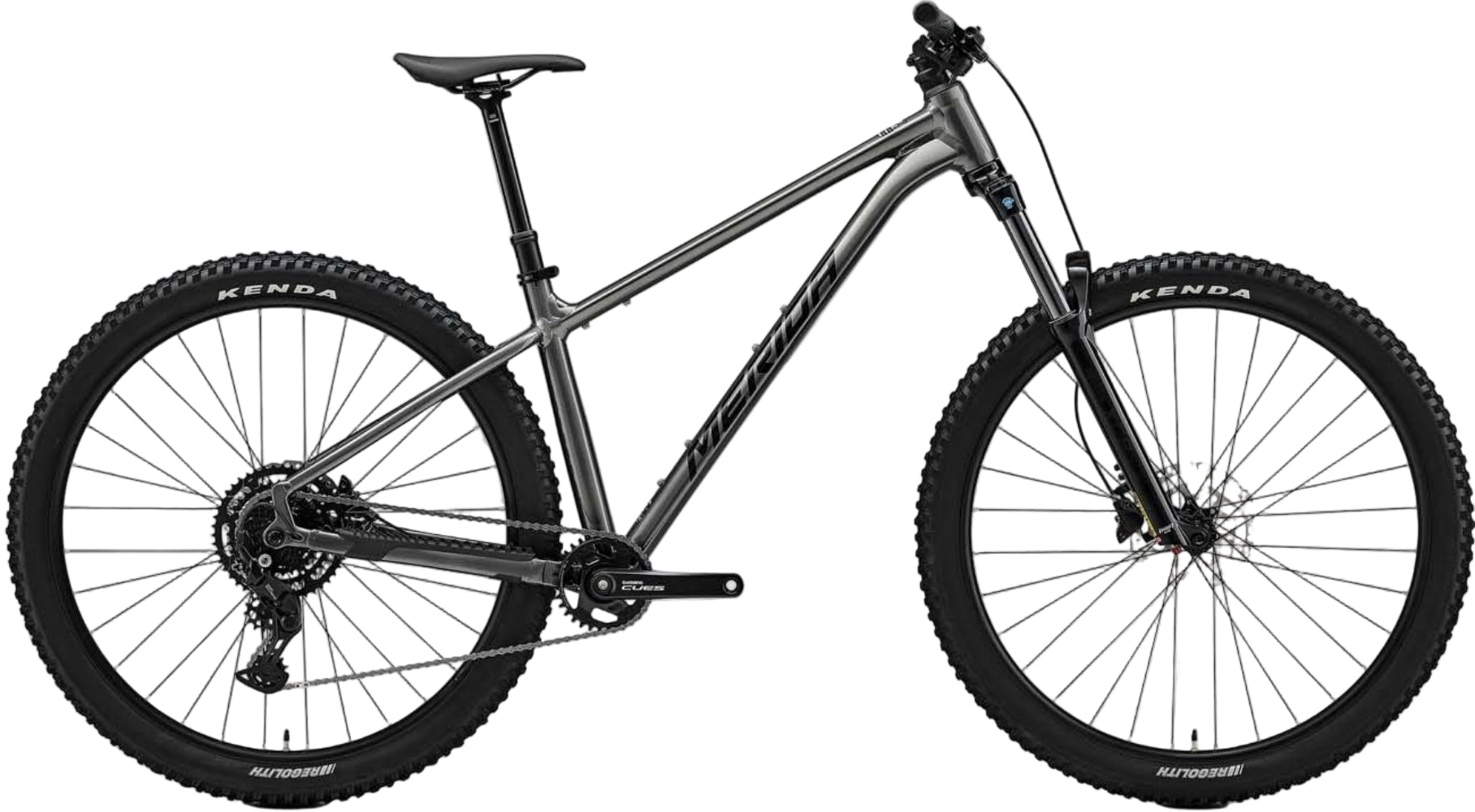

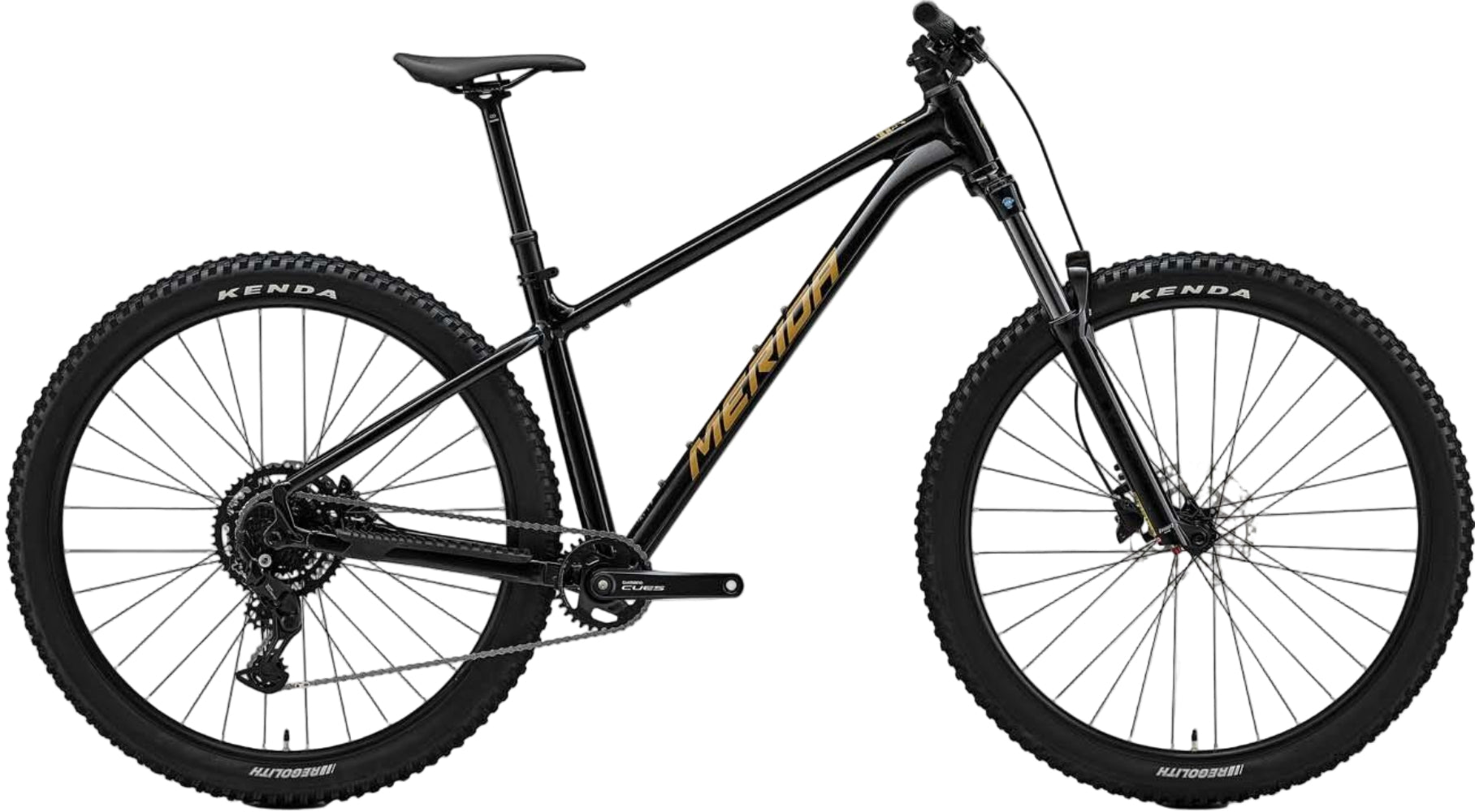

2026 Merida Big Trail 300

The same fun handling and trail taming performance as its bigger brothers, but in a wallet-friendly specification. This is affordable trail performance at its best.

Axles: R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Bottom Bracket: Shimano BB-UN101; 73mm
Brakes: F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston
Cassette: SunRace U9; CS-U980 9AZ; 11-46 ATC
Chain: KMC xGlide
Crankset: Shimano CUES UT-400-1; 32 ATC; 170mm on all sizes
Derailleur Rear: Shimano CUES U4000
Fork: SR Suntour XCR34 2CR; Air; 140 STR; Tapered; lockout; 44mm fork offset; 29x2.4" max WHS
Frame: BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Grip: MERIDA COMP TR
Handlebar: MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
Handlebar Stem: MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm
Headset: Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Hubs: F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Rotor Front: Shimano RT10; 180mm
Rotor Rear: Shimano RT10; 180mm
Saddle: MERIDA COMP SL; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA COMP TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT, MID, LONG, XLONG: 170 SPT
Shifters: R: Shimano CUES U4000
Spokes: Black stainless
Tyres: F: Kenda Regolith; 29x2.4"; wire | R: Kenda Regolith; 29x2.4"; wire
