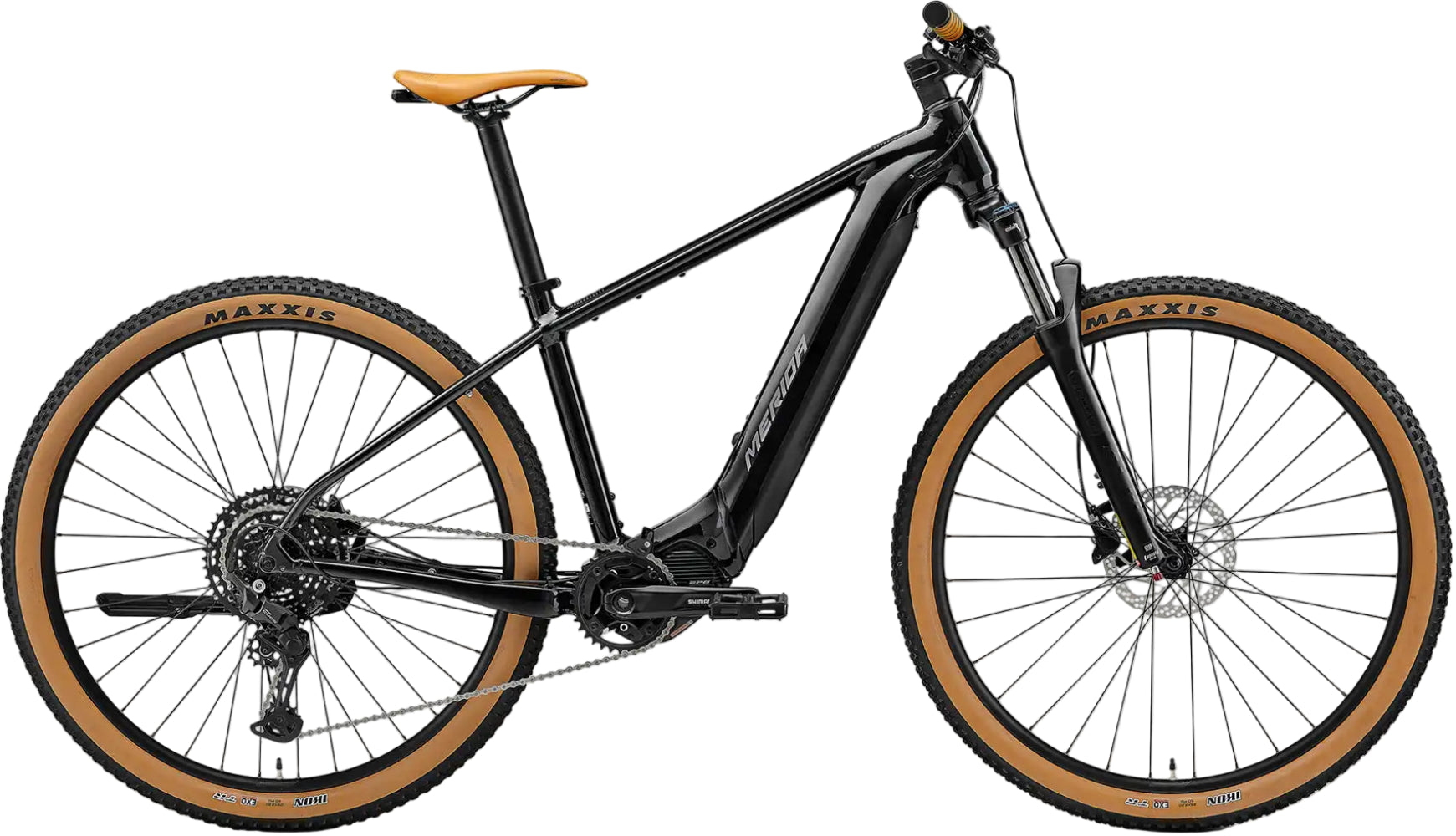

2026 Merida eBig Nine 400

The power to do more of what matters, whether you want e-assisted off-road fun or a hassle-free commute, all wrapped up in a sleek, high-quality, fully integrated frame.

Accessories: Kickstand: CL-KA98, 29"; MERIDA Multitool with saddlebox
Axles: R: MERIDA COMP TR; including removeable lever, 6/4mm allen key
Brakes: F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston
Cassette: Shimano LG300; 11-48 ATC; 10 GER
Chain: Shimano LG500
Crankset: Shimano CRE70-B; 34 ATC ; Shimano FC-EM600; 165 mm for all sizes
Derailleur Rear: Shimano CUES U6000 ; GS
Fork: Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS
Frame: eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube
Grip: MERIDA COMP TK
Handlebar: MERIDA MERIDA EXPERT TR II; 760 WHB; 18 RHB
Handlebar Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; GoPro & Supernova mount; 50 mm all sizes
Headset: MERIDA-8157
Hubs: F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock
Light(s): F: CG-119PG-BLACK(1) | R: CG-404RG-BLK
Pedals: VP VPE-537
Rim: MERIDA COMP CC II; 25 IWR; MAT aluminium
Rotor Front: Shimano RT30; 180 mm
Rotor Rear: Shimano RTEM300; 180 mm
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
Shifters: R: Shimano CUES U6000-10
Spokes: Black stainless ; black nipples
Tyres: F: Maxxis Ikon; 29x2.2"; kevlar bead | R: Maxxis Ikon; 29x2.2"; kevlar bead
Motor/Drive Unit: Shimano EP6; 85Nm; 25KPH
Motor Brand: Shimano
Motor Model: STePS EP6
Motor Power (Watts): 250
Motor Torque (NM): 85
Battery: Shimano EN806; 630Wh
Battery Brand: Shimano
Battery Model: Shimano EN806
Battery Size (Watt-Hours): 630
Ebike Drive System: Mid Drive
Display: Shimano SC-EN500A
