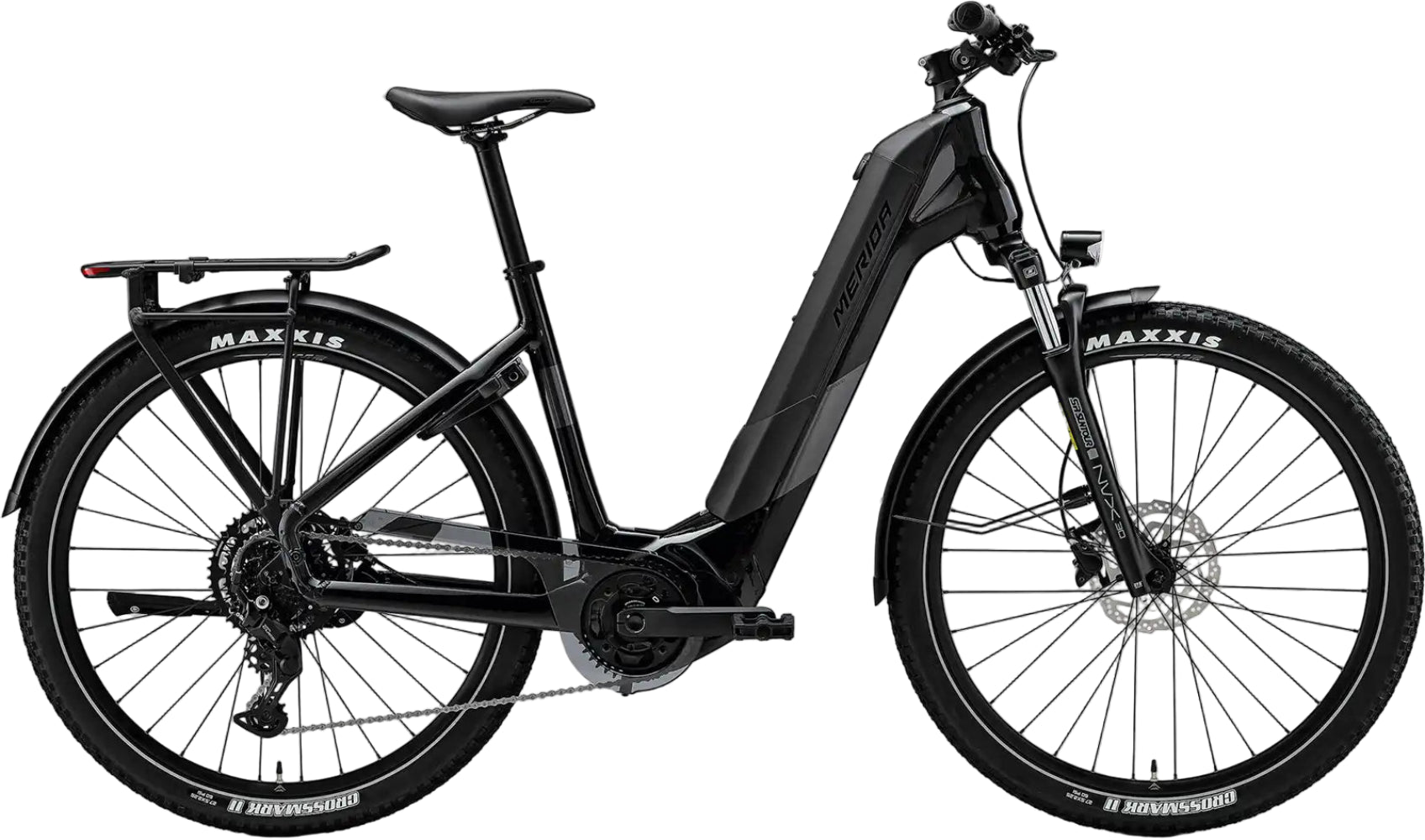

2026 Merida eSpresso CC 400 EQ

Everyday practicality with the ability to head off the beaten track. A strong Shimano drive unit with 504 Wh internal battery in our low step-through frame, plus city-ready kit and rugged rubber.

Accessories: Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light; Fender: Sunnywheel SW-FA-311-65(MSB); Kickstand: Atranvelo ED-100-PC; Frame Lock: Abus 4650 XL
Brakes: F: Shimano MT-200; 2 piston | R: Shimano MT-200; 2 piston
Cassette: Shimano LG300; 11-46 ATC; 9 GER
Chain: Shimano LG500
Crankset: Samox NWP203 ; 38 ATC; MERIDA EXPERT TK; 165mm
Derailleur Rear: Shimano CUES U4000
Fork: Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS
Frame: eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal
Grip: MERIDA EXPERT TK
Handlebar: MERIDA COMP CC; MAT aluminium; 660 WHB; 15 RHB
Handlebar Stem: MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable; 90 mm- XS/S/M/L/XL
Headset: MERIDA-8254
Hubs: F: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock | R: Shimano QC300; 135x9 WHR; 32 SPH; Centerlock
Light(s): F: Herrmans H-Black MR4 E | R: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Pedals: VP VPE-891
Rim: MERIDA COMP TK; 20 IWR; MAT aluminium
Rotor Front: Shimano RT10; 180 mm
Rotor Rear: Shimano RTEM300; 180 mm
Saddle: MERIDA EXPERT TK II; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
Shifters: R: Shimano CUES U4000
Spokes: Black stainless ; black nipples
Tyres: F: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line | R: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line
Motor/Drive Unit: Shimano EP6; 85Nm; 25KPH
Motor Brand: Shimano
Motor Model: STePS EP6
Motor Power (Watts): 250
Motor Torque (NM): 85
Battery: Shimano EN805-L; 504Wh
Battery Brand: Shimano
Battery Model: Shimano EN805-L
Battery Size (Watt-Hours): 504
Ebike Drive System: Mid Drive
Display: Shimano SC-EN500
