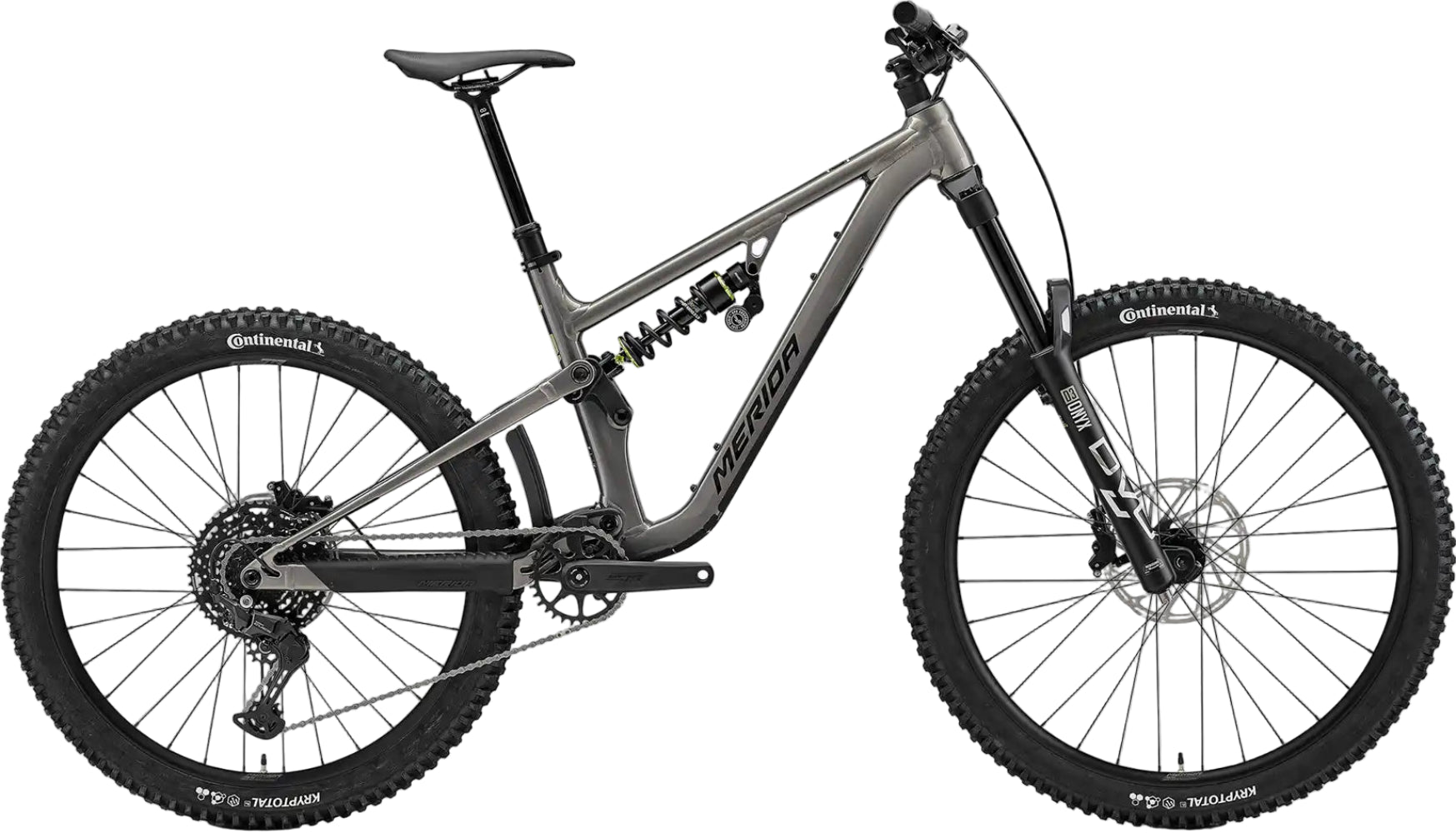

2026 Merida One Sixty FR 400

Take our proven aluminium enduro frame and crank the volume up. The music? Heavy metal, thanks to a coil sprung back end plus longer travel 180 mm fork, mixed wheel size handling for a ride that's ready to get rad.

Axles: R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Bottom Bracket: Samox BSA 24mm EB2401
Brakes: F: Sram DB4; 4 piston | R: Sram DB4; 4 piston
Cassette: Shimano LG300; 11-48 ATC; 10 GER
Chain: KMC xGlide
Crankset: MERIDA Expert TR II; 32 ATC; 165 mm for all sizes
Derailleur Rear: Shimano CUES U6000; GS
Fork: DVO Onyx 38 D3; Air; 180 STR; Tapered; 44 mm fork offset; 29x2.60" max. WHS
Frame: ONE-SIXTY LITE III; 171 STR mullet; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
Grip: MERIDA COMP TR
Handlebar: MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
Handlebar Stem: MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40 mm
Headset: Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Hubs: F: Novatec SL-TEAM D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D442SB-B12-A4A-HG; 148x12 WHR; 32 SPH; 6 bolt
Rim: MERIDA COMP TR II; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
Rotor Front: Sram CenterLine; 203mm
Rotor Rear: Sram CenterLine; 200mm
Saddle: MERIDA COMP SL; 25% recycled material; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT
Shifters: R: Shimano CUES U6000
Shock: DVO Jade X core; coil; spring rate: XS 300 lbs; S 350 lbs, M: 400 lbs; L: 450; XL: 500
Spokes: Double Butted Black stainless w/black nipples
Tyres: F: Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund | R: Continental Kryptotal-R; 27.5x2.4"; fold; TR; Enduro Casing; Soft Compound
