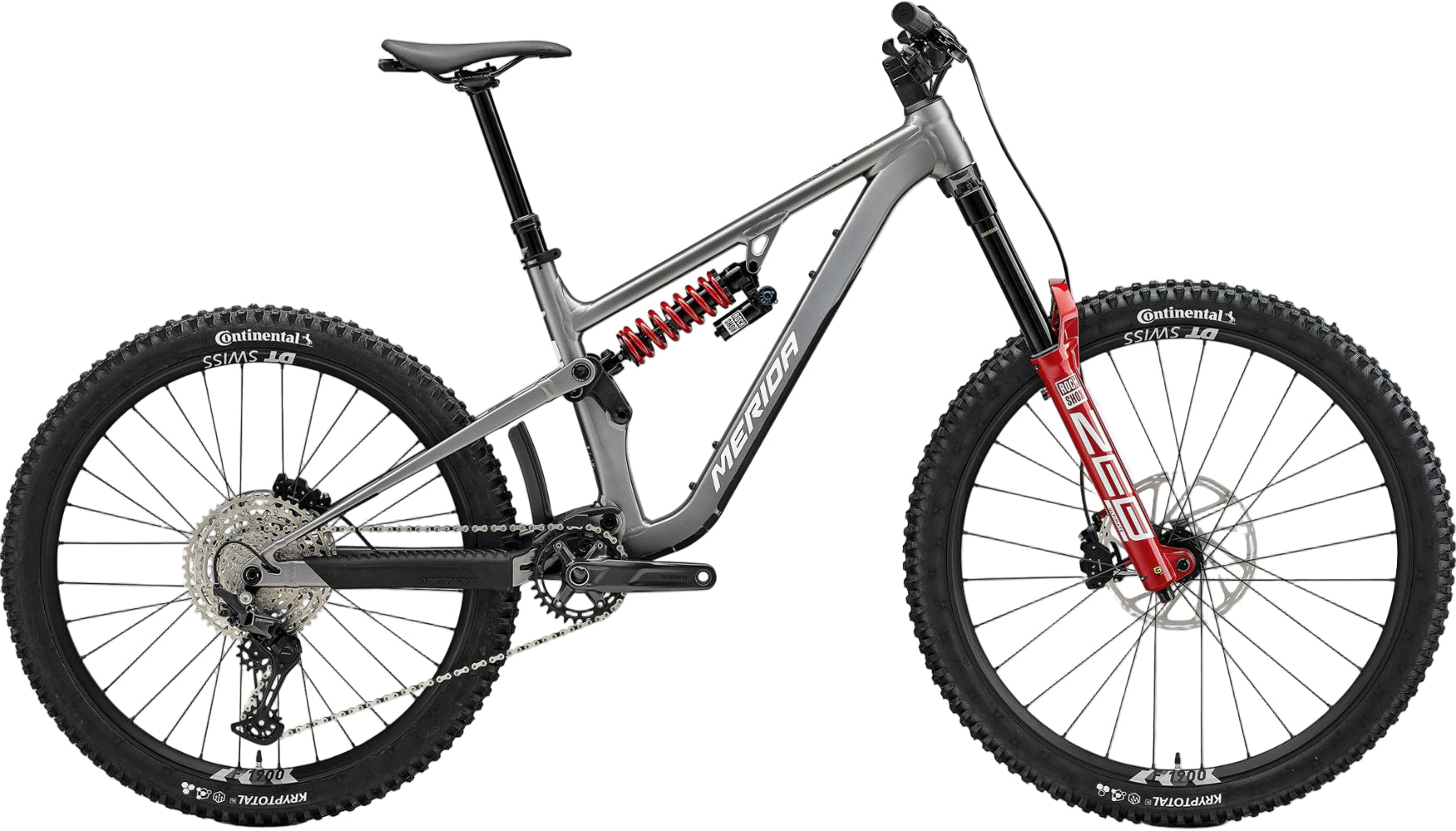

2026 Merida One Sixty FR 800

Hard-hitting and bike park proof. We’ve pumped up the attitude to make a hard rider's dream thanks to extra travel and a coil sprung rear shock, plus mixed wheel sizes on a tough aluminium frame.

Accessories: Brake adapter front 200mm to 220mm; Velcro strap & Tube Base Mount LITE; V-mount adapter; MERIDA Multitool with saddlebox
Axles: R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Bottom Bracket: Shimano BB-MT-501; 24mm
Brakes: F: Sram Maven; 4 piston | R: Sram Maven; 4 piston
Cassette: Shimano Deore M6100; 10-51 ATC; 12 GER
Chain: KMC X12
Crankset: Shimano Deore MT512; 32 ATC; 165 mm for all sizes
Derailleur Rear: Shimano Deore M6100; SGS
Fork: Rock Shox Zeb Ultimate; Air; 180 STR; 44mm offset; 29x2.6" max. WHS
Frame: ONE-SIXTY LITE III; 171 STR mullet; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
Grip: MERIDA EXPERT TR; recycled material
Handlebar: MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 30 RHB
Handlebar Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD; 40 mm
Headset: Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Rim: DT Swiss F 1900; 110x15 WHF; 148x12 WHR; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5"
Rotor Front: Sram CenterLine; 220mm
Rotor Rear: Sram CenterLine; 200mm
Saddle: MERIDA COMP SL; 25% recycled material; V-mount
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA EXPERT III; 34.9 DSP; 0 SSB; 25mm travel adjustability; XSHORT: 170mm, SHORT/MID: 200mm, LONG/XLONG: 230mm
Shifters: F: Sram dropper lever MMX | R: Shimano Deore M6100
Shock: Rock Shox Vivid coil; lockout; spring rate: XSHORT 300 lbs; SHORT:350 lbs; MID:400; LONG: 450 lbs; XLONG: 500 lbs
Spokes: Double Butted Black stainless w/black nipples
Tyres: F: Continental Kryptotal-F; 29x2.4"; fold; TR; Enduro casing; Soft Compund | R: Continental Kryptotal-R; 27.5x2.4"; fold; TR; Downhill Casing; Soft Compound
