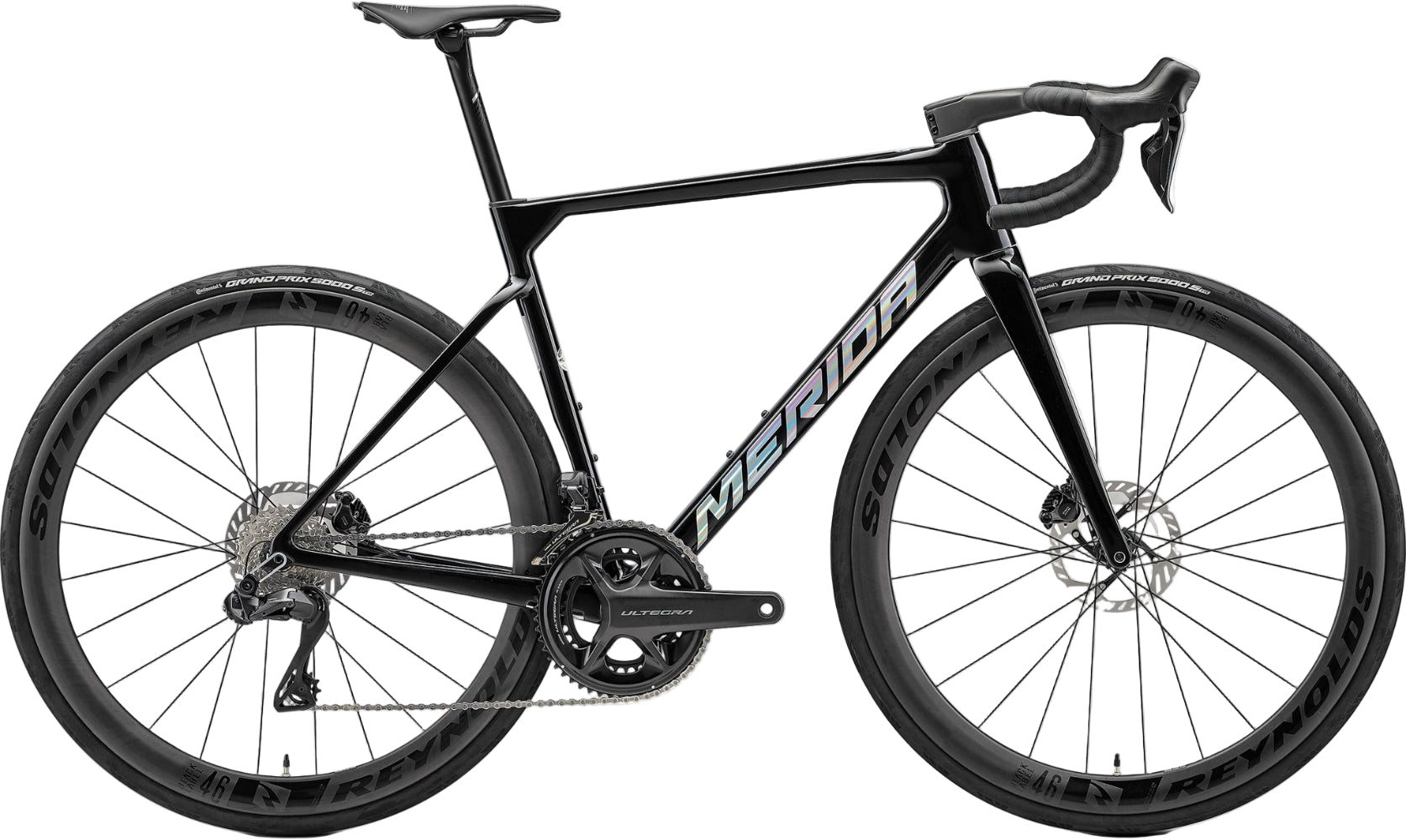

2026 Merida Scultura 9000

Top-level components matched perfectly with our weight-optimised SCULTURA CF5 frame. On top of a super-light frame, this bike has adapted a long list of 'streamlined' features from the REACTO and combined them perfectly with razor-sharp handling and class-leading race compliance.

Accessories: Bottle Cage: BC156C-D; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount; Seatpost adapter for DI2 battery
Axles: F: MERIDA EXPERT SL | R: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Bottom Bracket: Shimano SM-BB72-41B; Pressfit 86.5
Brakes: F: Shimano Ultegra; Hydraulic disc | R: Shimano Ultegra; Hydraulic disc
Brake Levers: Shimano Ultegra
Cassette: Shimano Ultegra R8101; 11-30 ATC; 12 GER
Chain: Shimano M6100-12

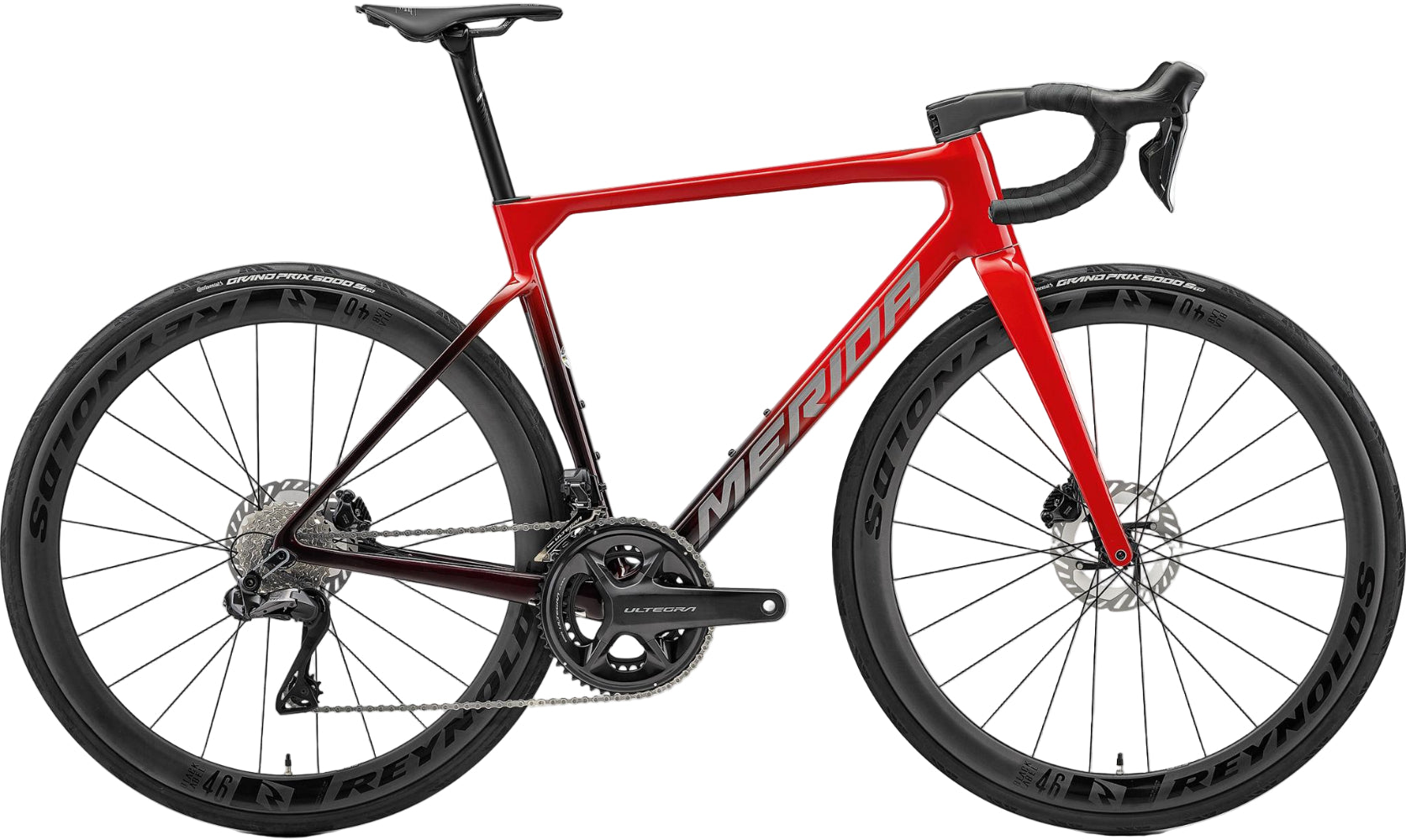

Colour: PASSION RED/DARK RACE RED(BLACK)
Crankset: Shimano Ultegra; 52-36 ATC; left side 4iiii 300+ power meter with Apple Find My; 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
Derailleur Front: Shimano Ultegra Di2
Derailleur Rear: Shimano Ultegra Di2
Fork: SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS
Frame: SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Grip: MERIDA ROAD Expert
Handlebar: MERIDA TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)
Handlebar Stem: MERIDA TEAM ONE-PIECE INTEGRATED; MAT carbon; 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
Headset: MERIDA TEAM SL (OP-203 neck)
Rim: Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 46 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included)
Rotor Front: Shimano CL800; 160mm
Rotor Rear: Shimano CL800; 160mm
Saddle: Prologo Nago R4 PAS; Nack
Seat Clamp: MERIDA EXPERT
Seat Post: MERIDA TEAM SL; 27.2 DSP; 0 SSB; Carbon; S-Flex
Shifters: F: Shimano Ultegra disc Di2 | R: Shimano Ultegra disc Di2
Tyres: F: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready | R: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
