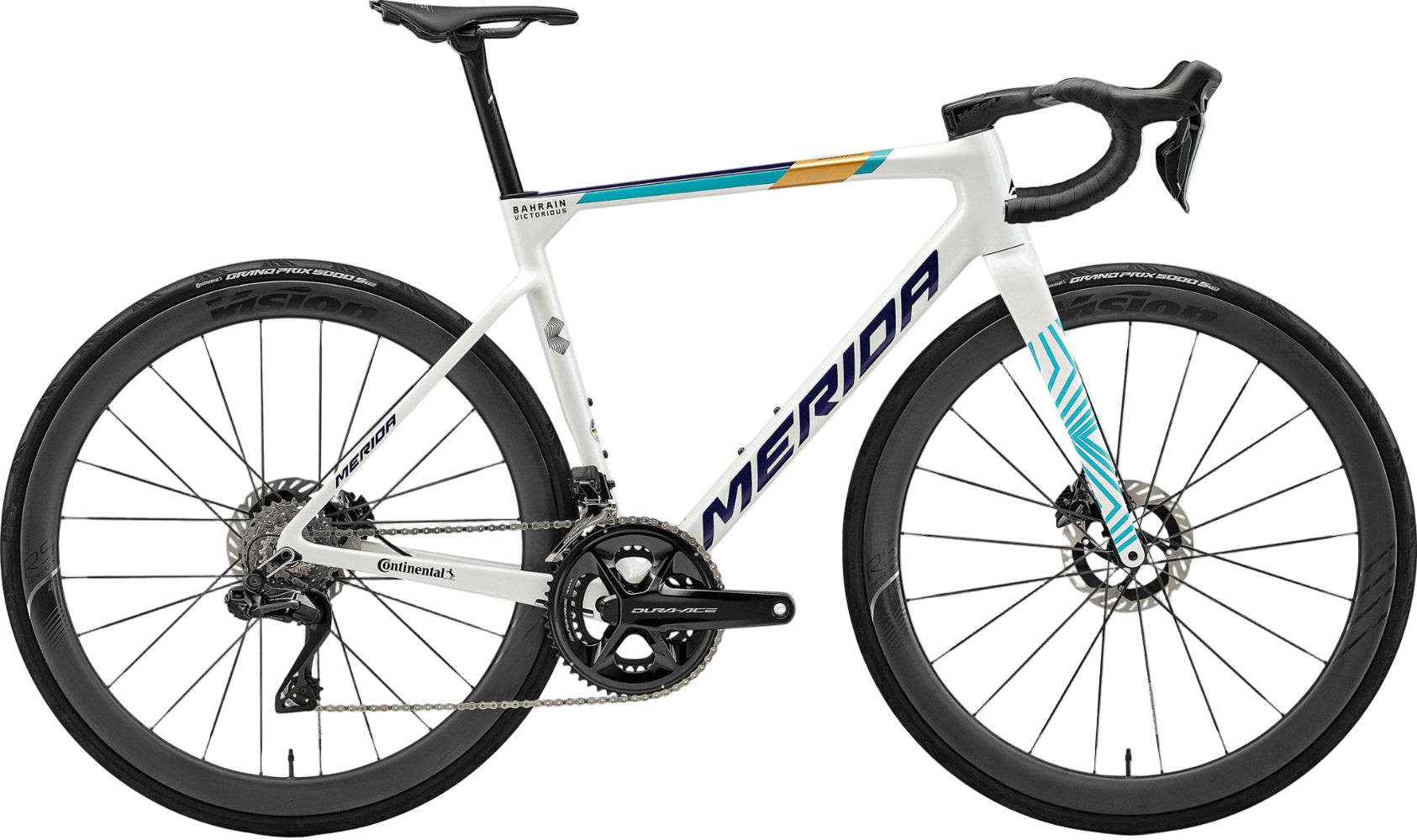

2026 Merida Scultura Team

Team level SCULTURA road race bike featuring an award-winning frame and the same race proven geometry as the REACTO aero bike. The TEAM provides low weight, gunshot acceleration, air slicing frame features and class-leading frame compliance.

Accessories: Bottle Cage: B-147B; Seatpost adapter for DI2 battery
Axles: F: MERIDA EXPERT SL | R: MERIDA EXPERT SL; including removable lever; 6/4mm allen key
Bottom Bracket: Shimano SM-BB92-41B; Pressfit 86.5
Brakes: F: Shimano Dura Ace; Hydraulic disc | R: Shimano Dura Ace; Hydraulic disc
Brake Levers: Shimano Dura Ace disc
Cassette: Shimano Dura-Ace R9200; 11-30 ATC; 12 GER
Chain: Shimano M9100-12
Colour: TEAL/PEARL(TEAM)
Crankset: Shimano Dura Ace; 52-36 ATC; Power Meter; 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
Derailleur Front: Shimano Dura Ace Di2
Derailleur Rear: Shimano Dura Ace Di2
Fork: SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS
Frame: SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Grip: Prologo One-Touch
Handlebar: Vision Metron 5D ACR EVO; MAT carbon; 380mm (3S-XXS-XS-S); 400mm (M-L); 420mm (XL)
Handlebar Stem: Vision Metron 5D ACR EVO; MAT carbon; 90 mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
Headset: FSA ACR, SL bearing
Rim: Vision Metron RS 45 SL Clincher TL Disc; 100x12 WHF; 142x12 WHR; 23 IWR; 45 HRI; Centerlock; MAT carbon; Tubeless tape ready
Rotor Front: Shimano CL900; 160mm
Rotor Rear: Shimano CL900; 160mm
Saddle: Prologo Nago R4 PAS; Nack
Seat Clamp: MERIDA EXPERT
Seat Post: Metron RS Seatpost; 27.2 DSP; 0 SSB; Carbon
Shifters: F: Shimano Dura Ace disc Di2 | R: Shimano Dura Ace disc Di2
Tyres: F: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready | R: Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
