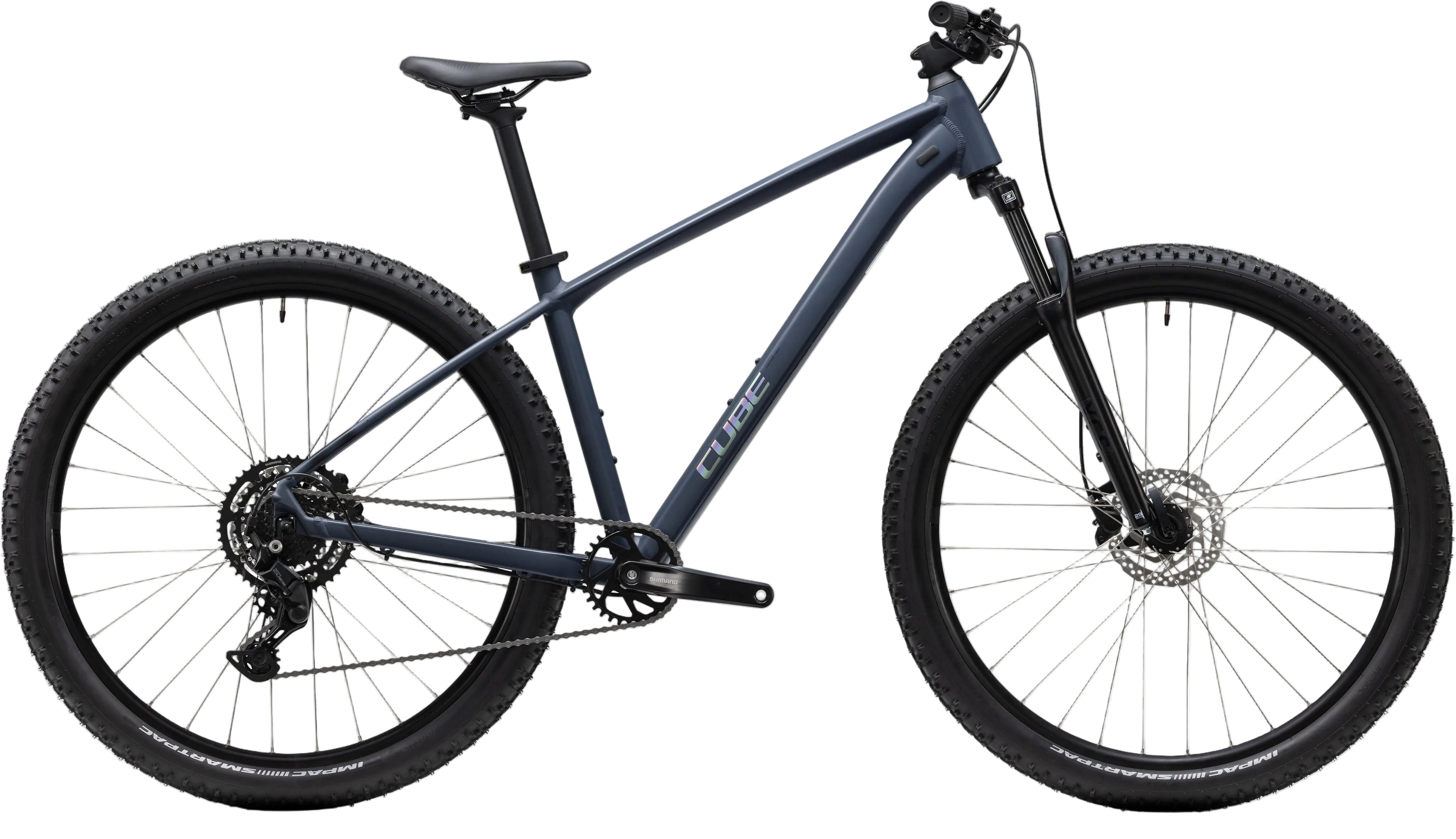

Fun, go-anywhere riding for everyone. The Aim ONE's double-butted aluminium frame has internal cable routing plus mounts for a kickstand and carrier, making it as practical around town as it is on the trail. A 100mm SR Suntour fork, Shimano CUES 9-speed gearing and Shimano hydraulic disc brakes give it dependable all-terrain ability.
Colour: Mole n PrismFrame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork: SR Suntour XCS, 100mm
Headset: CUBE FPH868, Semi-Integrated
Handlebar Stem: CUBE Performance Stem, 31.8mm
Handlebar: CUBE Rise Trail Bar, 680mm
Grip: ACID Icon
Shifters: Shimano CUES SL-U4010, Rapidfire Plus
Rear Derailleur: Shimano CUES RD-U4000-GS, 9-Speed
Brakes: Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Crankset: Shimano CUES FC-UT400, 32T
Bottom Bracket: Thun Paso-ML, 73mm BSA
Cassette: Shimano CUES CS-LG300, 11-46T
Chain: KMC xGlide
Wheelset: ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
Tyres: CUBE MTB, Draht, 2.25
Saddle: ACID Venec Lite
Seat Post: CUBE Performance Post, 30.9mm
Pedals: CUBE PP MTB
Wheel Size: 27.5" (XS, S), 29" (M, L, XL)
Weight: 15.3 kg
Maximum Rider Weight: 100 kg
