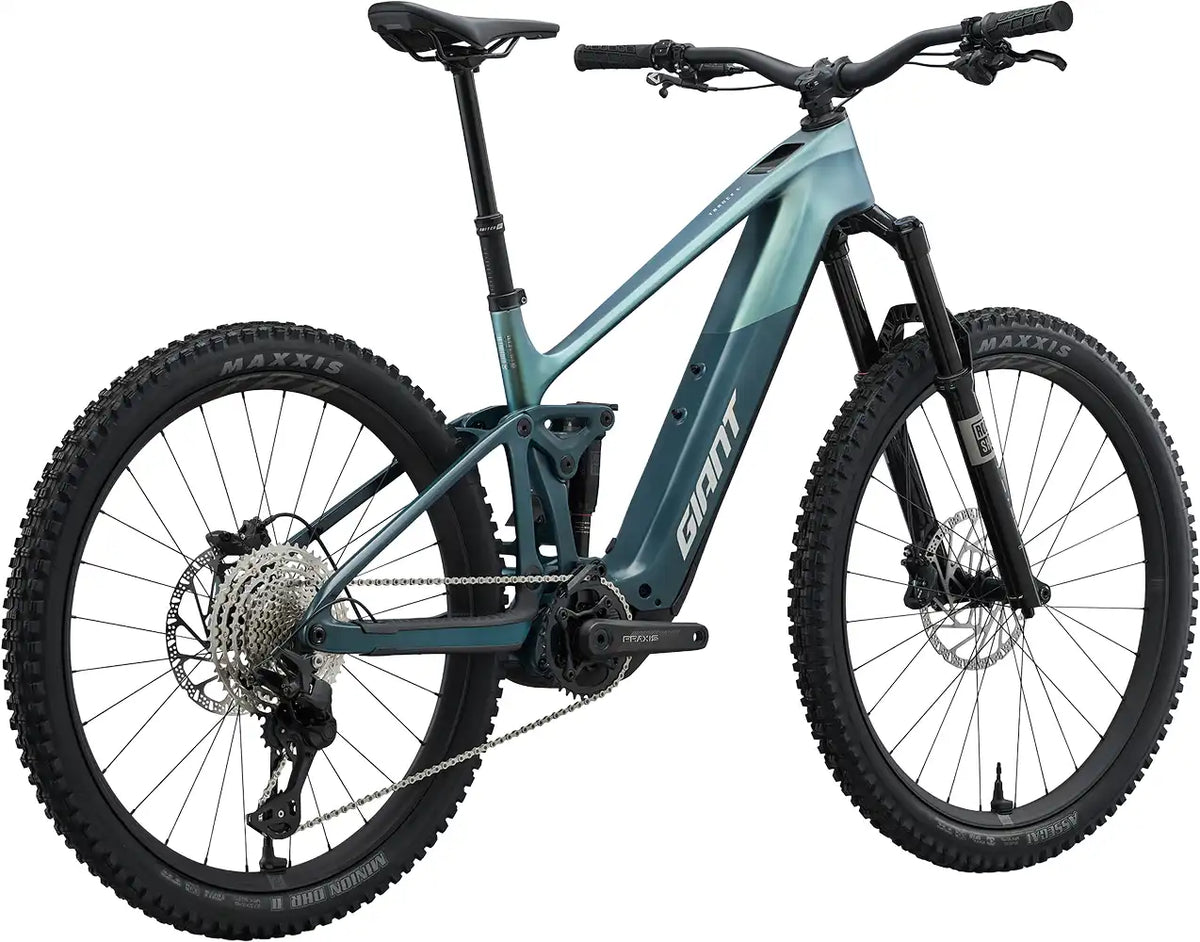

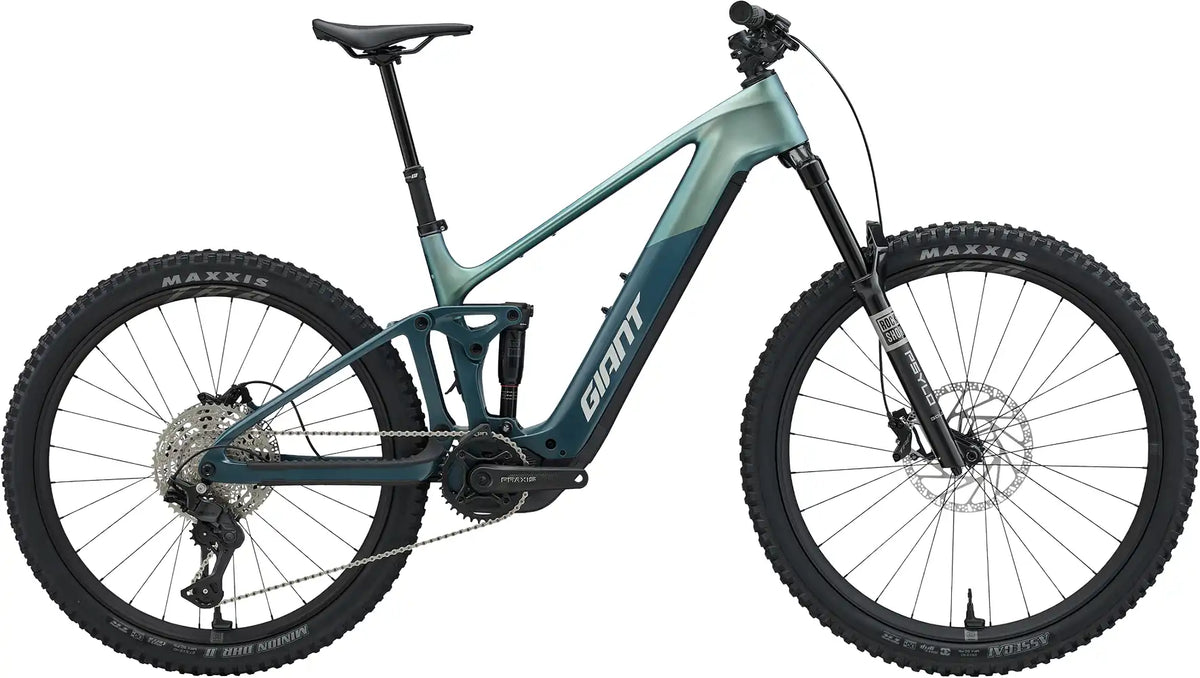

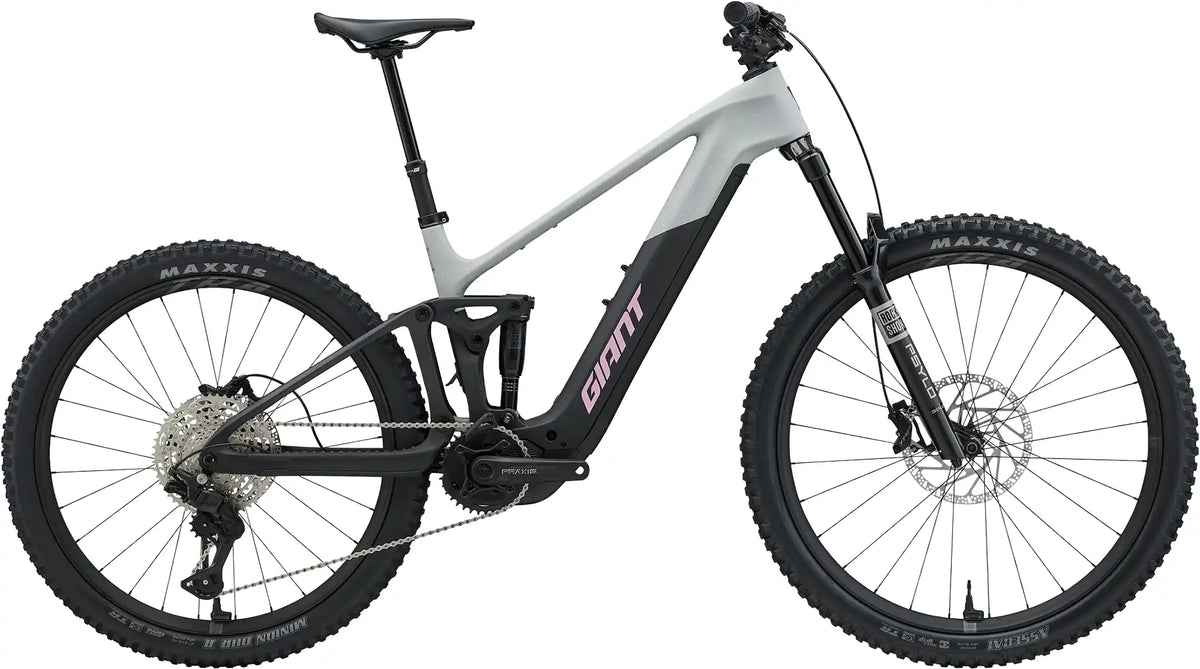

2027 Giant Trance Advanced E+ 2
A carbon e-MTB with 150mm Maestro suspension, a RockShox Psylo Gold RC fork and Deluxe Select shock and a Shimano Deore 1x12 drivetrain, powered by the SyncDrive Pro4 motor and 840Wh EnergyPak Smart battery.
Colours: Fanatic Teal/Deep Lake, Moon Dust/Carbon
Sizes: S, M, L, XL
Motor: Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power
Battery: EnergyPak Smart 840Wh; EnergyPak Plus 280 range extender compatible
Controls: Giant RideControl Ergo 5 wireless; Integrated E+ System
Display: RideControl GO LUX, frame integrated LED display; ANT+
Charger: 48V 4A Smart Charger X
Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle
Fork: RockShox Psylo Gold RC, 160mm travel, 44mm offset, Isolator RC damper, Maxle Stealth 15x110 thru-axle
Shock: RockShox Deluxe Select, custom tuned
Handlebar: Giant Contact TR35, 35mm Rise
Grips: Giant Tactal Pro Single lock-on
Stem: Giant Contact SL 35mm; S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost: Giant Contact Switch AT travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm; M: 140-170mm travel / 30.9 x 470mm; L: 170-200mm travel / 30.9 x 530mm; XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero HD
Pedals: N/A
Shifters: Shimano Deore, 1x12
Rear Derailleur: Shimano Deore, Shadow+
Brakes: TRP EVO Comp, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Comp
Cassette: Shimano Deore CS-M6200, 10-51T
Chain: KMC e12HT
Crankset: Praxis e-HD alloy crank arms; Praxis steel direct mount, 36T chain ring; S:155mm, M: 155mm, L:155mm, XL:155mm
Rims: Giant E-TRA Hookless Tubeless ready Alloy 29" [F] 27.5" [R]; 30mm inner width
Hubs: [F] Giant E-TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRA MTB Alloy Hub, HG Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H
Spokes: Sapim Laser, e-bike optimised
Tyres: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F]; Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]
Extras: Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), Chainguide
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
