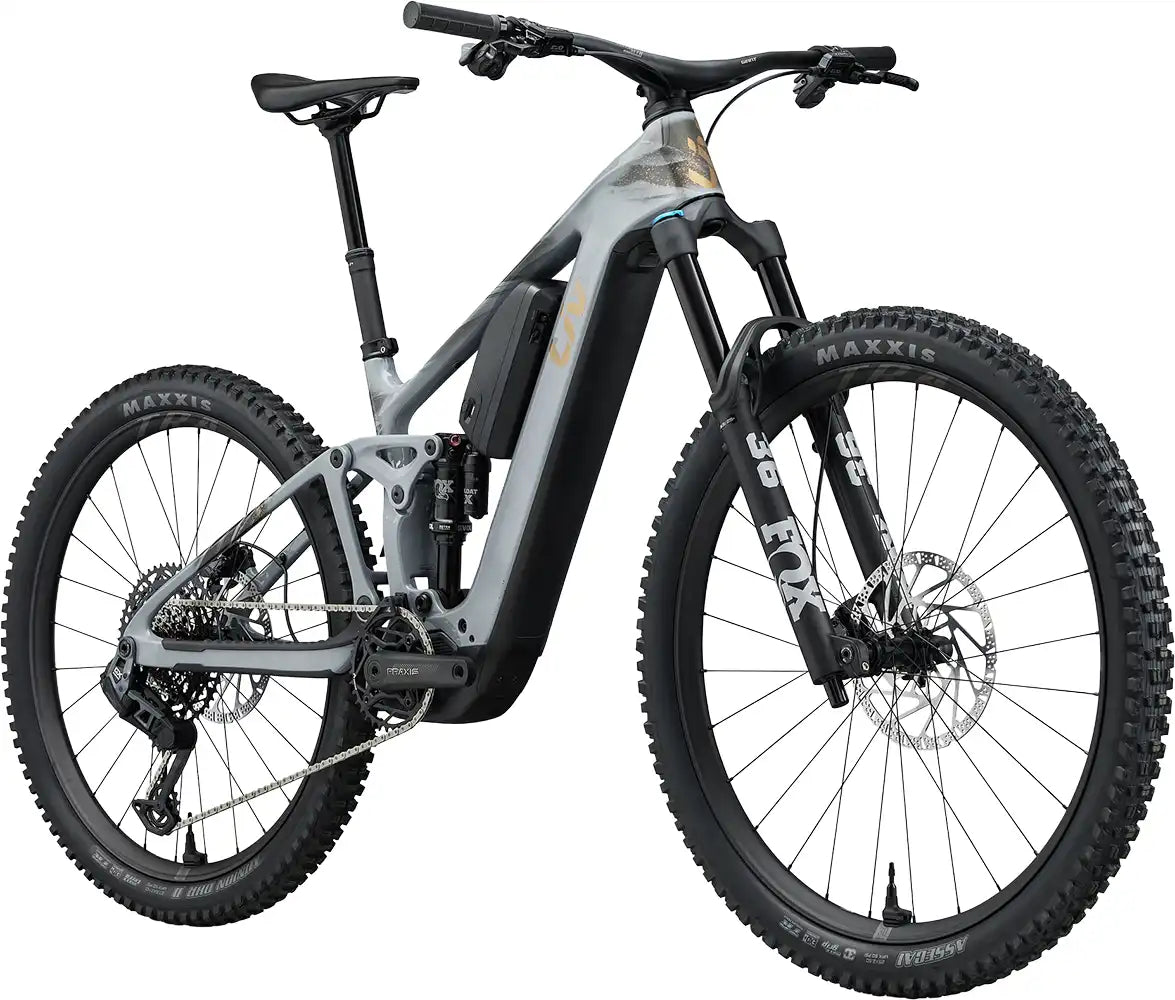

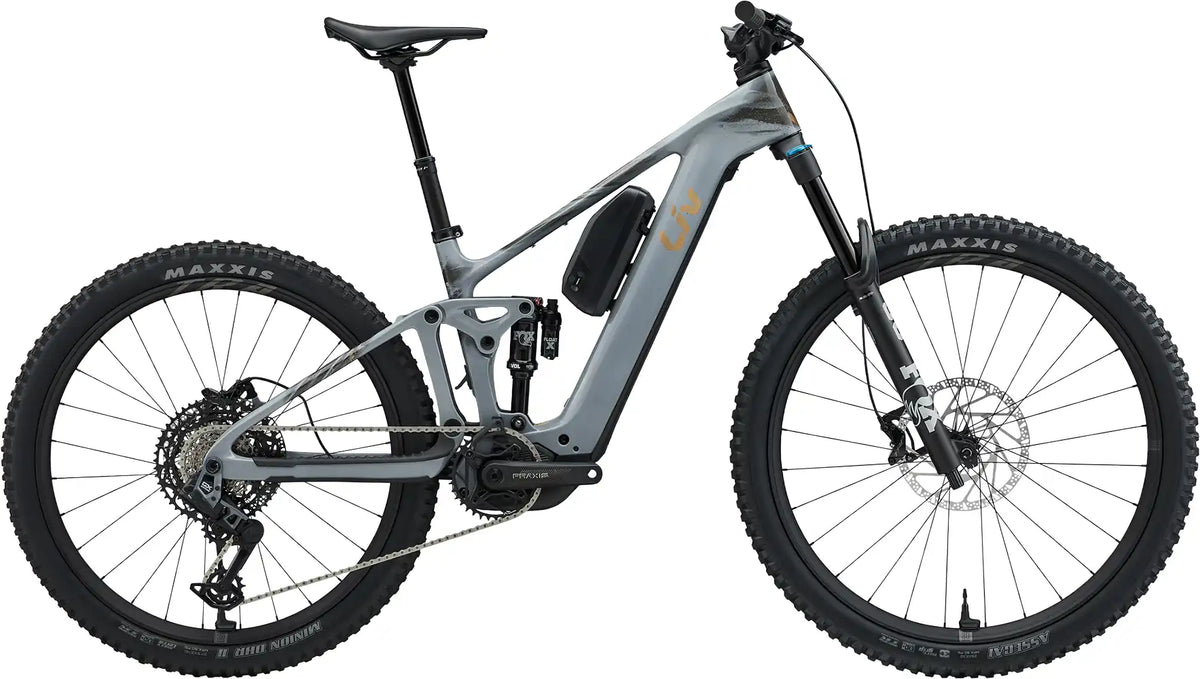

2027 Liv Intrigue Advanced E+ 1
A women's carbon e-MTB with 150mm Maestro suspension, a Fox 36 Performance fork and Float X Performance shock and a SRAM GX Eagle Transmission AXS drivetrain, powered by the SyncDrive Pro4 motor and 560Wh EnergyPak Smart battery.
Colours: Stardust Grey
Sizes: XS, S, M
Motor: Giant SyncDrive Pro4, 120Nm, 48V, 850W Peak Power
Battery: EnergyPak Smart 560Wh; EnergyPak Plus 280 range extender included
Controls: Giant RideControl Ergo 5 wireless; Integrated E+ System & seatpost remote
Display: RideControl GO LUX, frame integrated LED display; ANT+
Charger: 48V 4A Smart Charger X
Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 150mm Maestro suspension system, 3 position flip chip, UDH hanger 12x148mm thru-axle
Fork: Fox 36 Performance, 160mm travel, 44mm offset, GRIP damper, 3 position, Kabolt-X 15x110mm thru-axle
Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2 position lever, custom tuned
Handlebar: Giant Contact SL Trail integrated, alloy, 27mm rise
Grips: Liv Tactal Pro Single lock-on
Stem: Giant Contact SL Trail integrated, alloy, 27mm rise XS:50, S:50mm, M:50mm
Seatpost: Giant Contact Switch E, electronic travel-adjust dropper post; XS: 100mm travel / 30.9 x 374mm; S: 140mm travel / 30.9 x 457mm; M:170mm travel / 30.9 x 514mm
Saddle: Liv Sylvia SL HD
Pedals: N/A
Shifters: SRAM AXS Pod, Rocker Paddle, 1x12
Rear Derailleur: SRAM GX Eagle Transmission AXS
Brakes: TRP EVO Expert, hydraulic, TRP 2.3mm rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Expert
Cassette: SRAM GX XS-1270 Eagle Transmission 10-52T
Chain: KMC eFlatHT
Crankset: Praxis e-HD alloy crank arms; SRAM Eagle Transmission steel direct mount, 36T chain ring; XS:155mm, S:155mm, M: 155mm
Rims: Giant E-TRA Hookless Tubeless ready Alloy 29"[F] 27.5"[R]; 30mm inner width
Hubs: [F] Giant E-TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant E-TRA MTB Alloy Hub, HG Drive Body 72T Helical-Bevel Ratchet Driver, 6 Bolt, 28H
Spokes: Sapim Laser, e-bike optimised
Tyres: Maxxis Assagai 29x2.5" foldable, Tubeless, EXO+, 3C Maxx Grip [F]; Maxxis Minion DHR II 27.5x2.4" foldable, Tubeless, EXO+ 3C Maxx Terra [R]
Extras: Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), Chainguide
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
