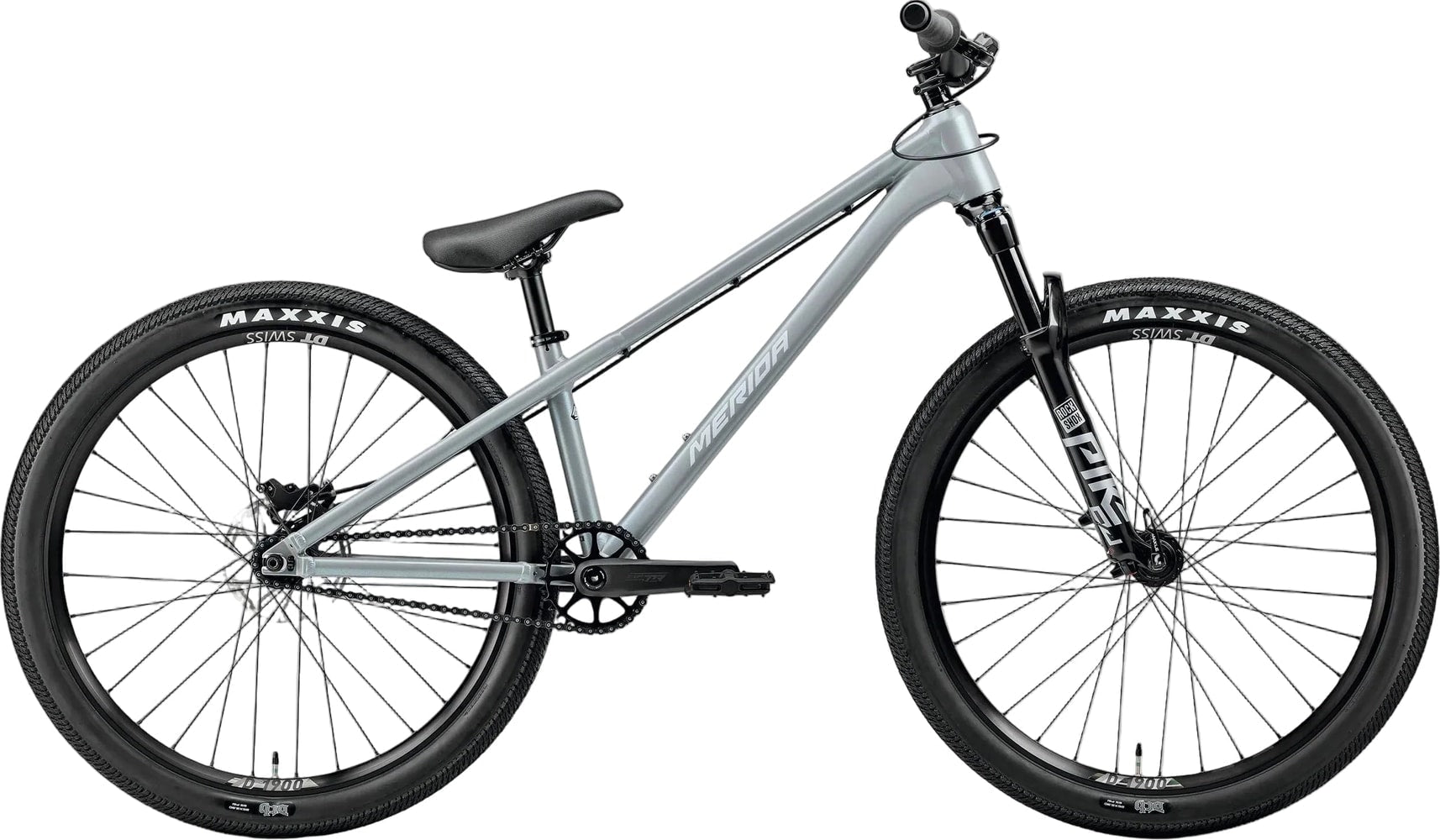

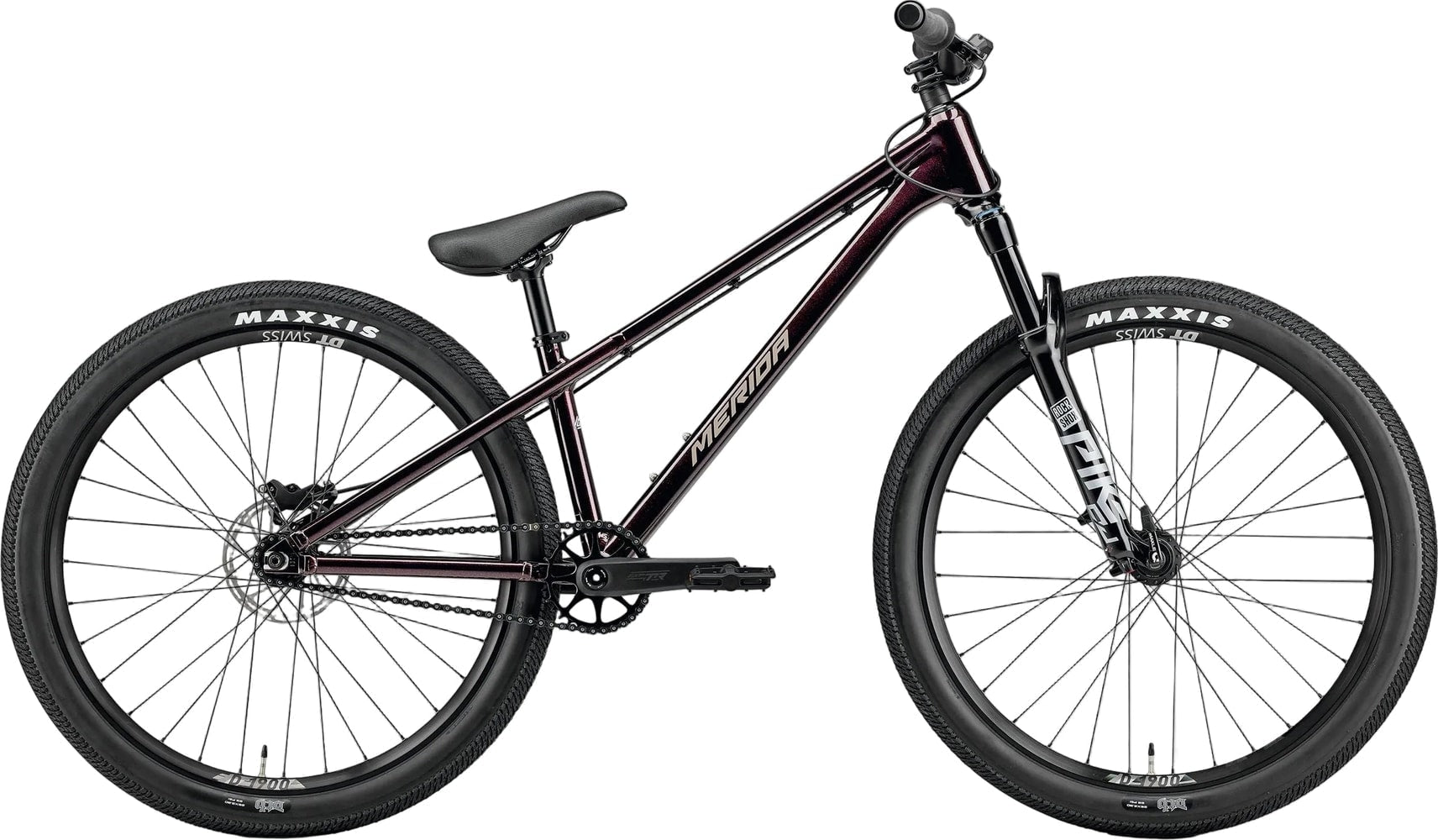

2027 Merida Dirt 700
MERIDA's top-end dirt-jump build, made for trail bosses, slopestyle shredders and pump-track pinners. A tough 6061 aluminium frame is paired with some of the best dirt-jump-ready gear on the market — the benchmark RockShox Pike DJ fork takes the sting out of landings, and the robust DT Swiss D1900 wheelset shrugs off hard landings. A hydraulic SRAM 4-piston rear brake with cable-operated front give controllable stopping power, and the frame is gyro-compatible for barspins and tailwhips.
Frame: DIRT TFS; 6061 aluminium; gyro compatible; 135x10mm axle; BSA bottom bracket
Frame Sizes: M, L
Fork: RockShox Pike DJ; air; 100mm travel; 15x100mm; tapered
Headset: FSA NO.57
Handlebar: MERIDA COMP TR
Handlebar Stem: MERIDA EXPERT TR II
Grip: MERIDA COMP DR
Brake Front: Tektro MD-M280 (2-piston)
Brake Rear: SRAM DB4 (4-piston, hydraulic)
Rotors (F/R): Tektro TR-160-52 / SRAM CenterLine
Chain: KMC Z1 wide
Crank: MERIDA Expert TR II; 160mm
Freewheel: 13T singlespeed cog
Bottom Bracket: Samox BSA 24mm EB2401
Wheelset: DT Swiss D1900; tubeless tape ready
Tyres (F/R): Maxxis DTH 26x2.3"
Spokes: Disc attached
Seatpost: MERIDA COMP DR
Seat Clamp: MERIDA EXPERT
Saddle: MERIDA COMP DR
Approx. Weight: 11.0 kg (size M)
Max. Weight: 135 kg
