DT Swiss ARC 1100 Dicut 50 Tubeless Disc Wheel 100x12 Centerlock | ABC Bikes

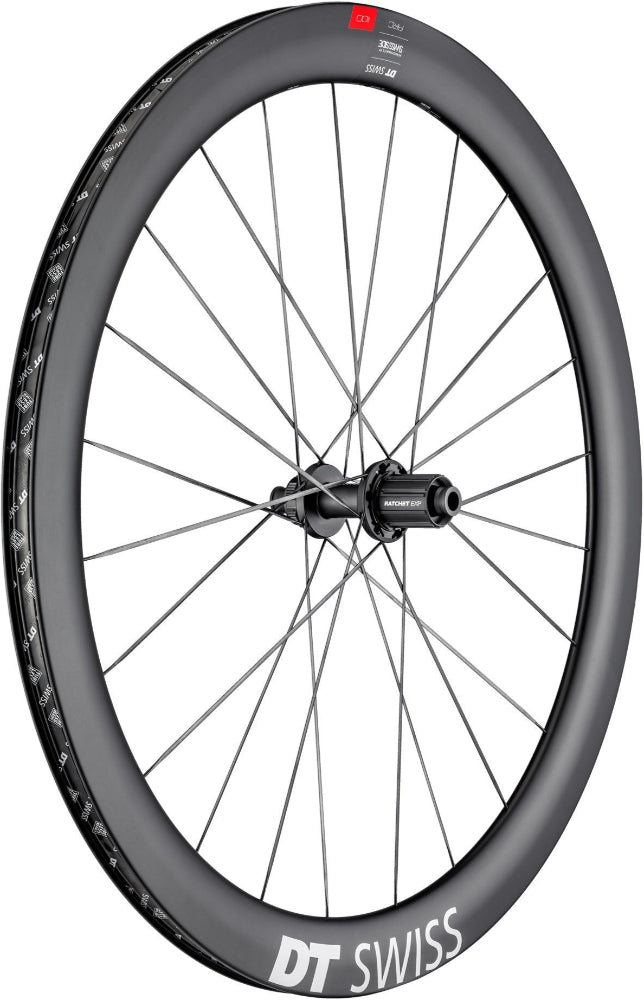

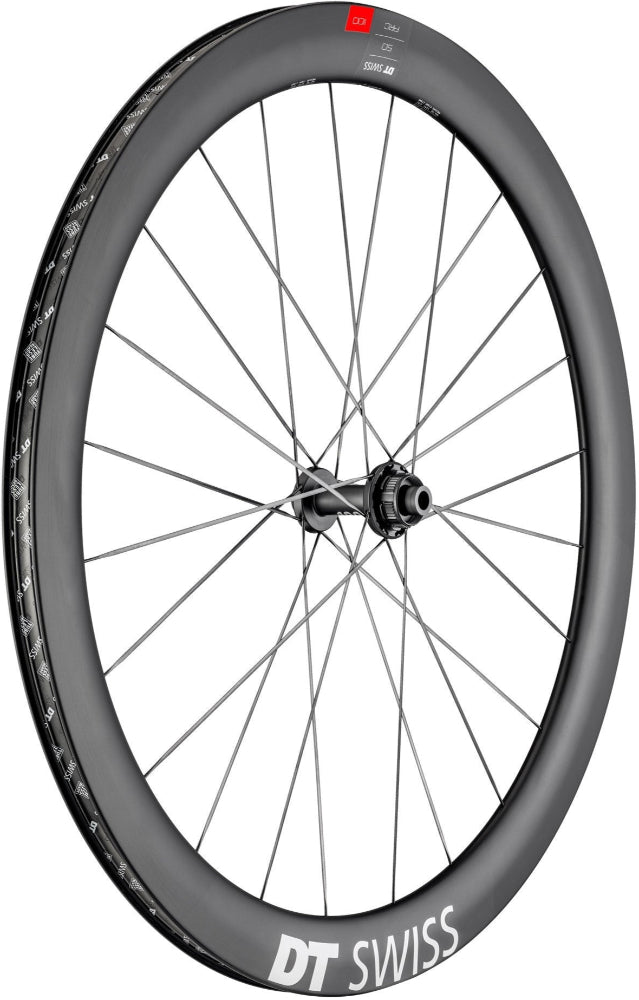

DT Swiss ARC 1100 Dicut 50 Tubeless Disc Wheel

by DT Swiss
Sold out
$1,599.99 - $2,299.99
$1,599.99
$1,599.99 - $2,299.99
$1,599.99
SKU
Availability:
Out of stock
Availability:
Out of stock

ONLINE ONLY ITEMS

These items are ordered directly from our supplier for your order
Please allow a 3-5 day handling period for these items

Choose a Size

The most advanced DT Swiss aero disc brake wheelset for new top speeds while handling the bike safely anytime.

The latest generation of ARC 1100 DICUT wheels – available in disc brake version in three different rim heights 80 mm, 62 mm and 50 mm – was developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimization. Consequently, the new AERO+ rim profile minimizes both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind. Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the sleek 180 DICUT hub including ultra-light running SINC ceramic bearings.

  REAR WHEEL FRONT WHEEL
GENERAL
NET WEIGHT 798 g 776 g
RECOMMENDED SYSTEM WEIGHT MAX. 110 kg 110 kg
ASTM CLASSIFICATION 1 1
RIM
MATERIAL Carbon Carbon
RIM JOINT - -
TIRE INTERFACE Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
VALVE HOLE Presta Presta
RIM DIAMETER 29" / 700C 29" / 700C
RIM HEIGHT 50 mm 62 mm
DECAL TYPE Waterslide Waterslide
INNER WIDTH 20 mm 20 mm
OUTER WIDTH 27 mm 27 mm
HUB
HUB TYPE 180 180
AXLE SYSTEM 12 mm Thru Axle 12 mm Thru Axle
BUILT-IN DIMENSION 142 mm 100 mm
BRAKE INTERFACE Disc Center Lock Disc Center Lock
FREEHUB BODY Shim. RD. 11SP Light S ASLS11 -
FREEHUB SYSTEM Ratchet EXP 36 -
SPOKES & NIPPLES
SPOKES LEFT DT aerolite® II t-head DT aerolite® II t-head
SPOKES RIGHT DT aero comp® II t-head DT aerolite® II t-head
SPOKE PATTERN Two-cross (1:1) Two-cross (1:1)
NIPPLES DT Pro Lock hidden aluminum DT Pro Lock hidden aluminum
INCLUSIVE
  Tubeless tape 23 mm Tubeless tape 23 mm
  TL valve alu black 49-65 mm TL valve alu black 49-65 mm
  SRAM XDR Road freehub body kit 5 mm endcap Kit
  5 mm endcap Kit valve guard
  valve guard wheel bag
  wheel bag
