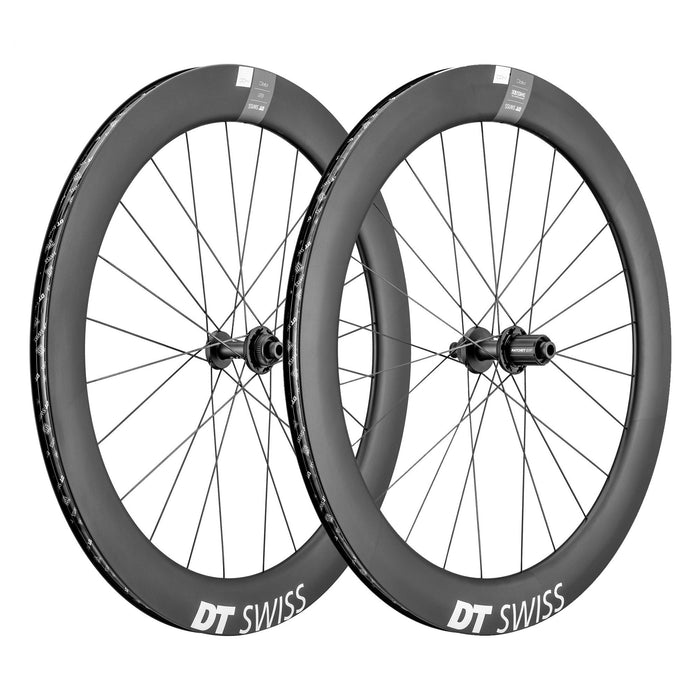

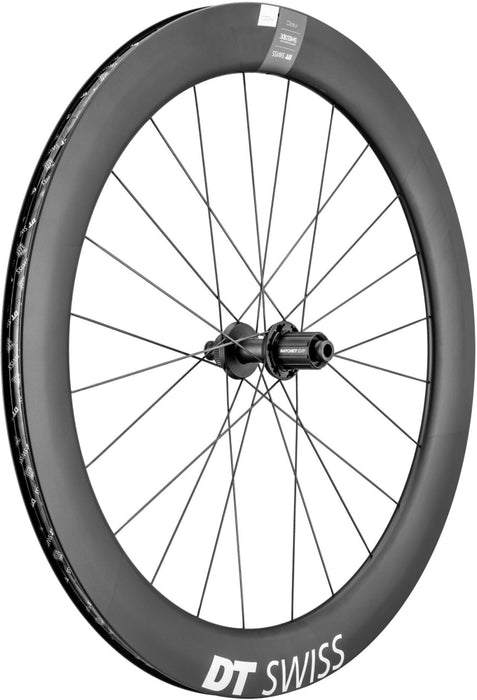

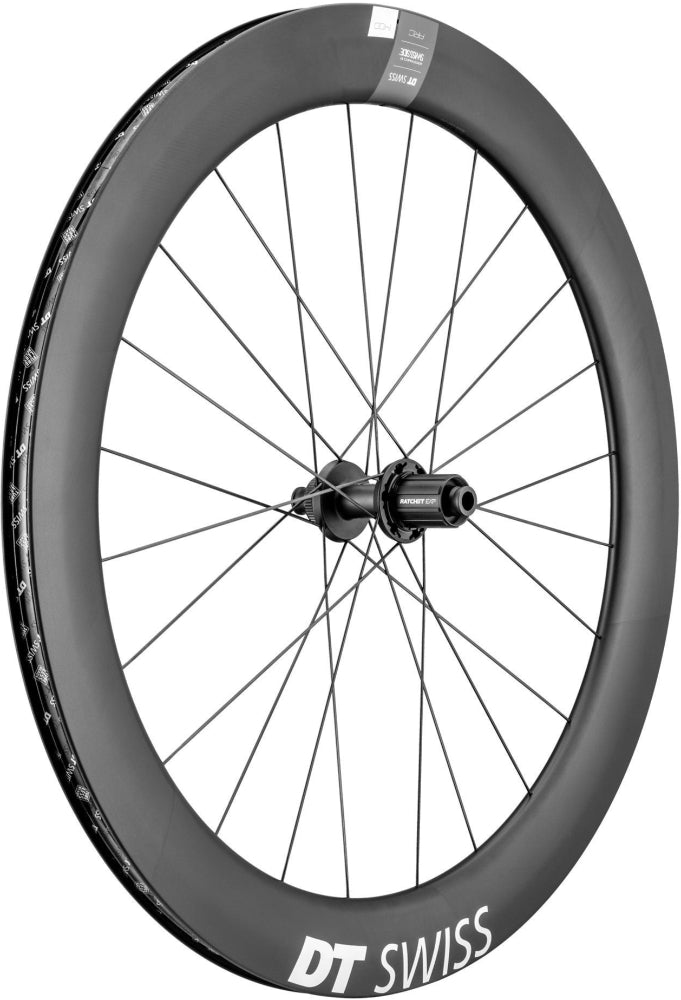

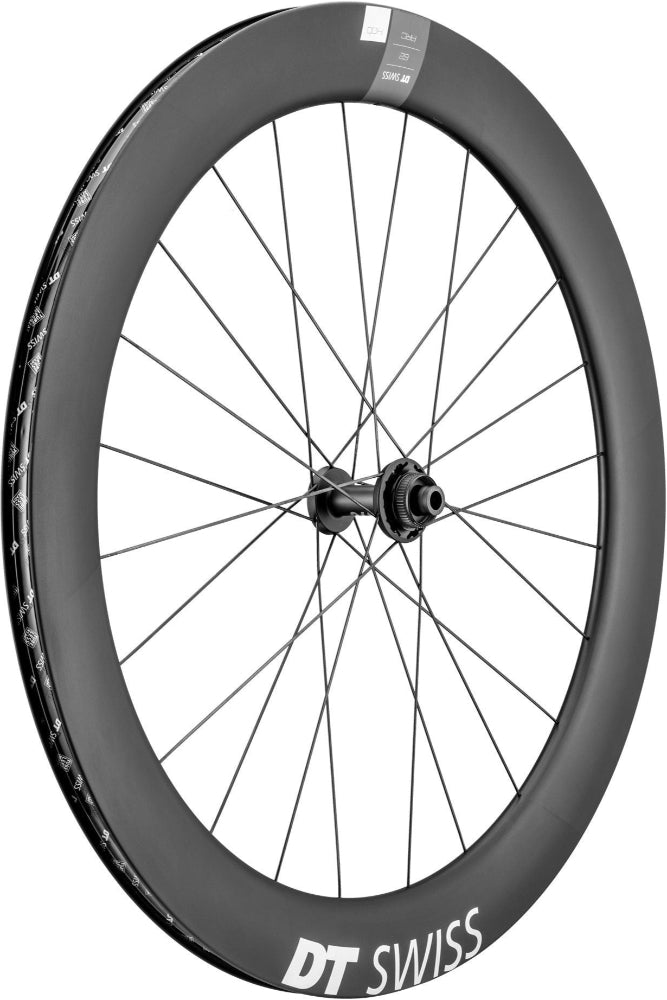

DT Swiss ARC 1400 Dicut 62 Carbon Tubeless Disc Road Wheel
The current DT Swiss aero disc brake wheelset with a perfect synthesis of acceleration, aerodynamics and handling - even in the most challenging conditions.
The sophisticated ARC 1400 DICUT wheels represent the latest DNA of the 1400 level of DT Swiss and our aero partner SWISS SIDE. Available in disc brake version in three different rim heights (80 mm, 62 mm and 50 mm), the AERO+ profile rims set a new standard in aerodynamic performance and keep aero drag as low as possible under different crosswind angles. In moderate side wind conditions, riders benefit from propulsion through a sailing effect. Reduced wind sensitivity allows riders to maintain a stable aerodynamic position and full control of their bike. High-end DT Swiss aero spokes and the light 240 DICUT hub with its reliable Ratchet EXP system for more direct engagement complete this wheelsets.
REAR WHEEL | FRONT WHEEL | |
GENERAL | ||
NET WEIGHT | 936 g | 817 g |
RECOMMENDED SYSTEM WEIGHT MAX. | 110 kg | 110 kg |
ASTM CLASSIFICATION | 1 | 1 |
RIM | ||
MATERIAL | Carbon | Carbon |
RIM JOINT | - | - |
TIRE INTERFACE | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
VALVE HOLE | Presta | Presta |
RIM DIAMETER | 29" / 700C | 29" / 700C |

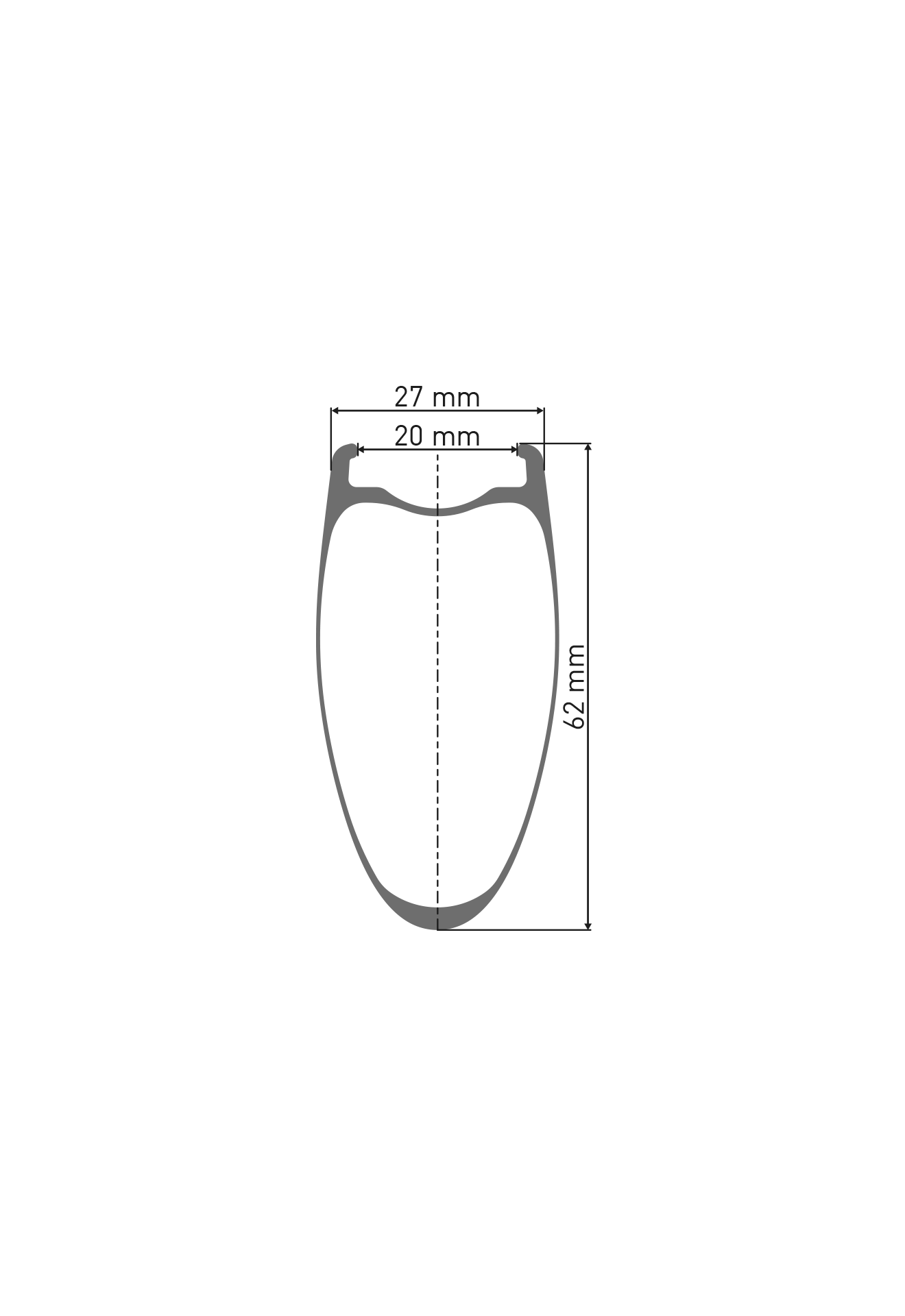

RIM HEIGHT | 62 mm | 62 mm |
DECAL TYPE | Waterslide | Waterslide |
INNER WIDTH | 20 mm | 20 mm |
OUTER WIDTH | 27 mm | 27 mm |
HUB | ||
HUB TYPE | 240 | 240 |
AXLE SYSTEM | 12 mm Thru Axle | 12 mm Thru Axle |
BUILT-IN DIMENSION | 142 mm | 100 mm |
BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
FREEHUB BODY | Shim. RD. 11SP Light (ASL11) | - |
FREEHUB SYSTEM | Ratchet EXP 36 | - |
SPOKES & NIPPLES | ||
SPOKES LEFT | DT aero comp® t-head | DT aero comp® t-head |
SPOKES RIGHT | DT aero comp® t-head | DT aero comp® t-head |
SPOKE PATTERN | Two-cross (1:1) | Two-cross (1:1) |
NIPPLES | DT Pro Lock hidden aluminum | DT Pro Lock hidden aluminum |
INCLUSIVE | ||
Tubeless tape 23 mm | Tubeless tape 23 mm | |
TL valve alu black 49-65 mm | TL valve alu black 49-65 mm | |
SRAM XDR Road freehub body kit | 5 mm endcap Kit | |
5 mm endcap Kit | valve guard | |
valve guard | ||
