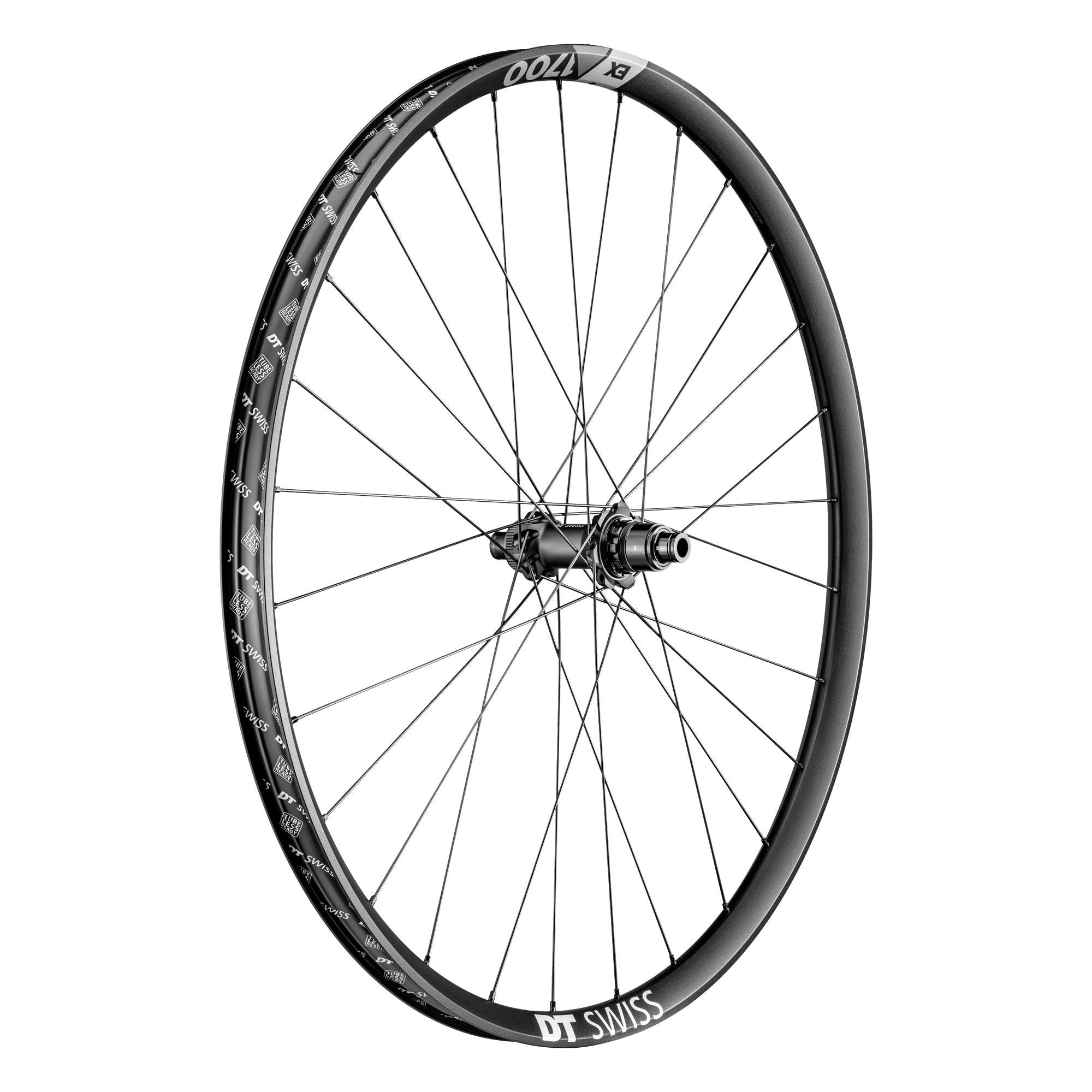

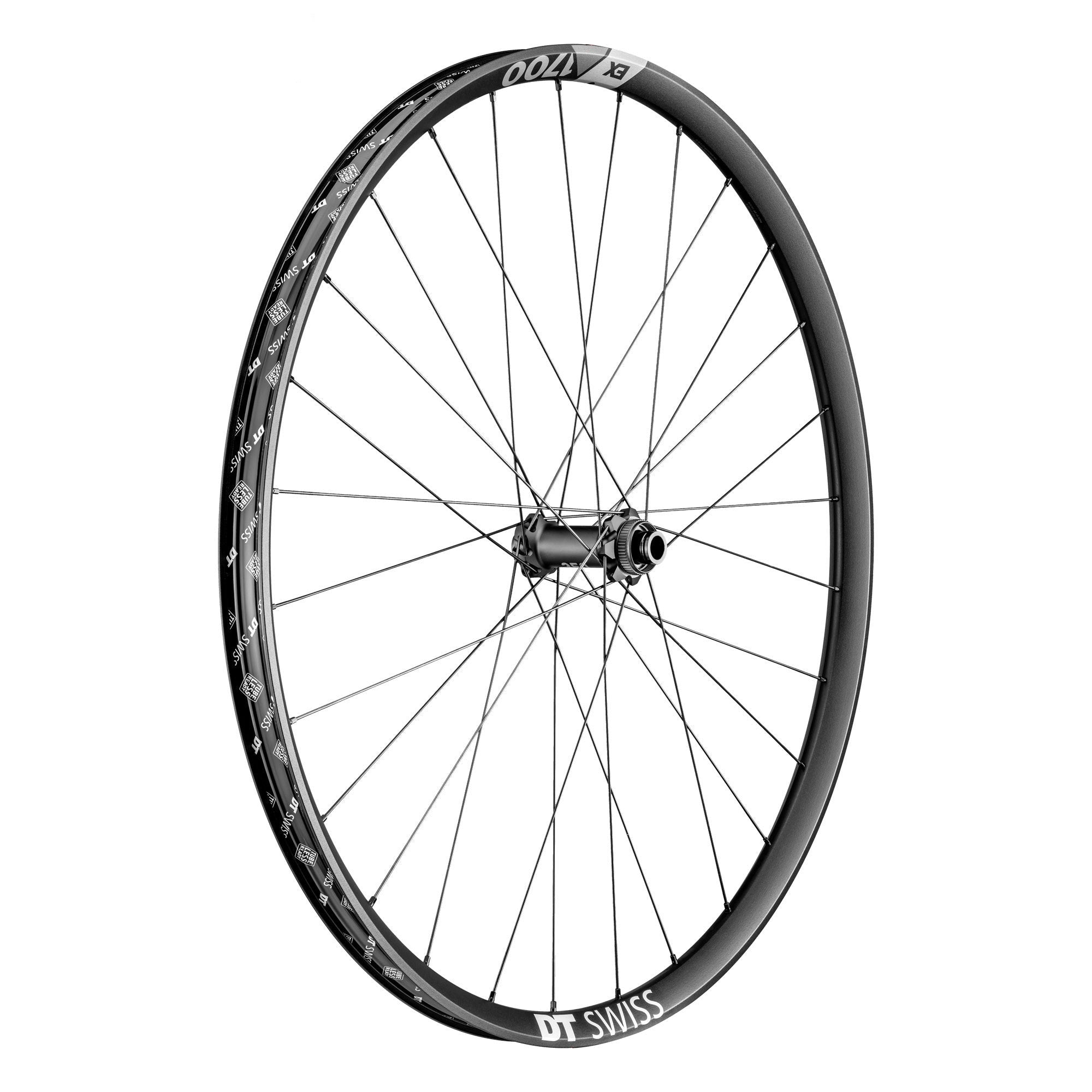

DT Swiss EX 1700 Spline 30 Tubeless Disc MTB Wheel
The aluminium Enduro wheelset - made for the roughest Enduro tracks around the world.
We have taken all our aluminium wheel know-how and put it in the high performing package. EX 1700 SPLINE wheels are based on our famous 36t RATCHET hubs combining it with a super strong and welded 30 mm wide aluminium rim. The rim profile is designed to withstand the hardest use of Enduro racing while still keeping the weight low for long and demanding uphills. Laced to double butted competition straightpull spokes, the EX 1700 SPLINE wheels are built to take a beating.
REAR WHEEL | FRONT WHEEL | |
GENERAL | ||
NET WEIGHT | 984 g | 984 g |
RECOMMENDED SYSTEM WEIGHT MAX. | 130 kg | 130 kg |
ASTM CLASSIFICATION | 4 | 4 |
RIM | ||
MATERIAL | Aluminum | Aluminum |
RIM JOINT | Welded | Welded |
TIRE INTERFACE | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
VALVE HOLE | Presta | Presta |
RIM DIAMETER | 27.5"/650B | 29"/700C | 27.5"/650B | 29"/700C |
RIM HEIGHT | - | - |
DECAL TYPE | Waterslide | Waterslide |
INNER WIDTH | 30 mm | 30 mm |
OUTER WIDTH | 35 mm | 35 mm |
HUB | ||
HUB TYPE | 350 | 350 |
AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
FREEHUB SYSTEM | Ratchet System 36 SL | - |
SPOKES & NIPPLES | ||
SPOKES LEFT | DT competition® Straightpull | DT competition® Straightpull |
SPOKES RIGHT | DT competition® Straightpull | DT competition® Straightpull |
SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
INCLUSIVE | ||
Tubeless tape 32 mm | Tubeless tape 32 mm | |
Tubeless valve MTB 32 mm | Tubeless valve MTB 32 mm | |
