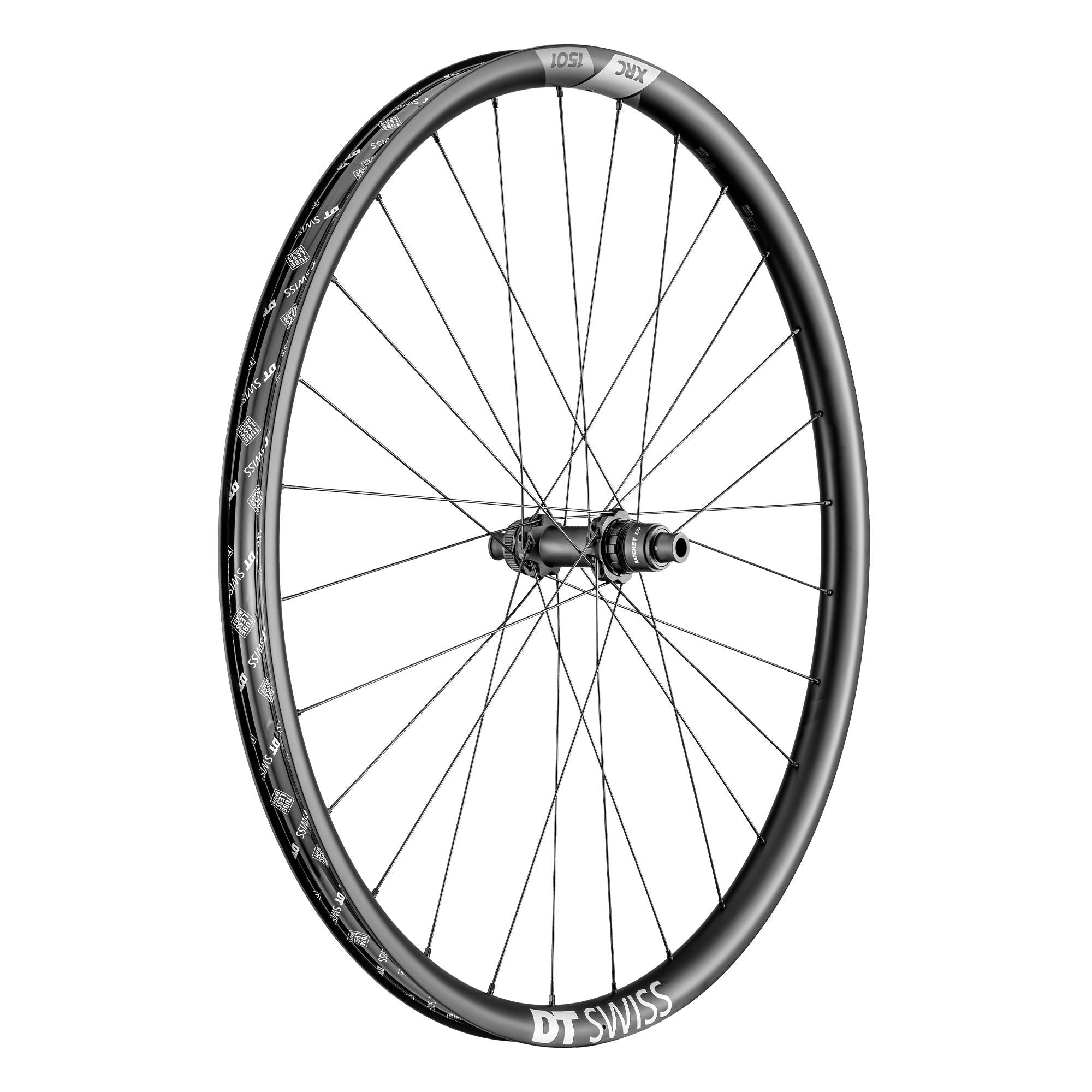

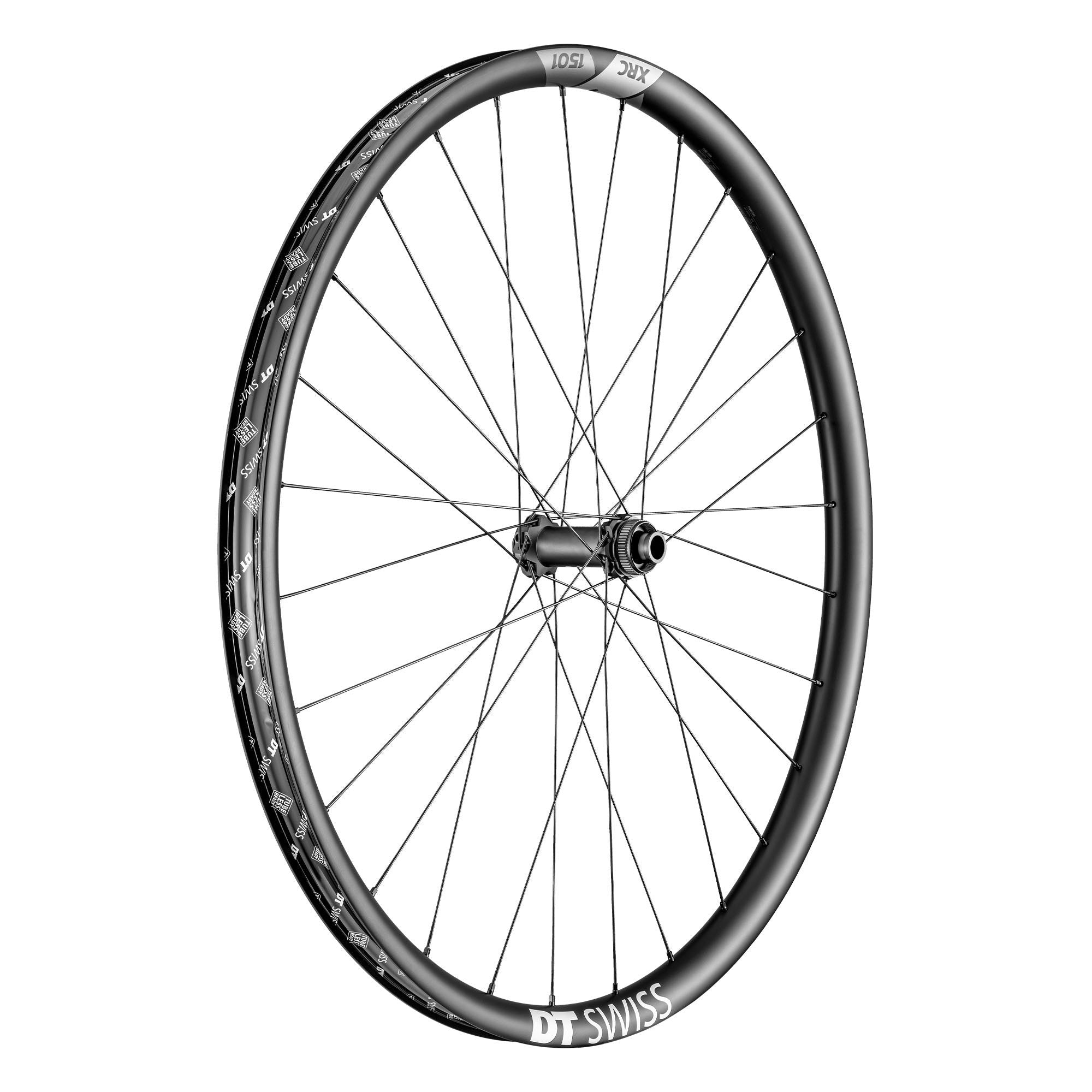

DT Swiss XRC 1501 Spline One 30 Carbon Tubeless Disc MTB Wheel
Made for modern XC tracks - a 240 hub surrounded by a 30 mm carbon rim - super fast!
Tailored to the needs of performance orientated cross country riders, the XRC 1501 SPLINE ONE leaves nothing to be desired. The light 30 mm wide carbon rims offer ideal support for modern XC tires. Rolling on race proven and super durable 240 hubs with RATCHET EXP freehub system every bit of your energy is transferred into forward motion via equally racy double butted spokes and a perfect wheel build.
REAR WHEEL | FRONT WHEEL | |
GENERAL | ||
NET WEIGHT | 816 g | 728 g |
RECOMMENDED SYSTEM WEIGHT MAX. | 110 kg | 110 kg |
ASTM CLASSIFICATION | 3 | 3 |
RIM | ||
MATERIAL | Carbon | Carbon |
RIM JOINT | - | - |
TIRE INTERFACE | Hookless tubeless TSS | Hookless tubeless TSS |
VALVE HOLE | Presta | Presta |
RIM DIAMETER | 29" / 700C | 29" / 700C |
RIM HEIGHT | - | - |
DECAL TYPE | Waterslide | Waterslide |
INNER WIDTH | 30 mm | 30 mm |
OUTER WIDTH | 36 mm | 36 mm |
HUB | ||
HUB TYPE | 240 | 240 |
AXLE SYSTEM | 12 mm Thru Axle | 15 mm Thru Axle |
BUILT-IN DIMENSION | 148 mm Boost | 110 mm Boost |
BRAKE INTERFACE | Disc Center Lock | Disc Center Lock |
FREEHUB BODY | SRAM XD MTB (ASRAM) | - |
FREEHUB SYSTEM | Ratchet EXP 36 | - |
SPOKES & NIPPLES | ||
SPOKES LEFT | DT competition® race straightpull | DT competition® race straightpull |
SPOKES RIGHT | DT competition® race straightpull | DT competition® race straightpull |
SPOKE PATTERN | Three-cross (1:1) | Three-cross (1:1) |
NIPPLES | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
INCLUSIVE | ||
Tubeless tape 32 mm | Tubeless tape 32 mm | |
TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | |
IS 6-bolt adapter MTB | IS 6-bolt adapter MTB | |
Shim Micro Spline freehub kit | ||
